ELECTRICAL CHARACTERISTICS
Power supply 230Vac +/- 10% 50 Hz
Average power consumed 120 W
Power consumed upon
ignition
400 W
Remote control frequency
(as standard)
Radio waves 2.4
GHz
Protection on electronic
board
*
Fuse 2°, 250 V
AC 5x20
SAFETY DEVICES
• THERMO COUPLING:
located on the smoke exhaust, detects the temperature.
On the basis of the parameters set, check the ignition,
working and turn-off phases.
• AIR FLOW SENSOR:
Positioned in the suction channel, this intervenes
when the fuel air flow is incorrect, with consequent
depression problems in the smoke circuit.
• SAFETY THERMOSTAT (150 °C):
Intervenes when the temperature within the boiler is
too high. Blocks pellet loading causing the boiler to
turn off.
DETECTION DEVICES
• ROOM TEMP. DETECTION PROBE:
located on the remote control. Alternatively it can be
connected up to the electronic board inside the insert.
PELLET LOADING
A convenient front drawer allows you to load the pel-
lets in complete comfort, without having to remove
the hearth from its housing, and therefore in absolute
safety and in compliance with standards EN 14785.
BACKUP BATTERY
A backup battery is found on the control board (3-
Volt CR 2032 battery).
Its malfunction is indicated with the following mes-
sages: (not considered a defect but due to normal
wear-and-tear): “Error rtc-rd”.
For more detailed information, please contact the
DEALER who has performed the first 1st ignition.
THERMO TECHNICAL CHARACTERISTICS
Tank capacity 15 kg
Efficiency 89,1 %
Max. power output 8 kW
Available power 6,5 /17 hours
Fuel consumption (min./max.) 0,7 / 1,8 kg/h
Heating capacity *
190 m³
Weight (including packaging) 176 kg
Diameter smoke duct (male) 80 mm
Diameter air intake duct (male) 40 mm
G
L
H
M
N
FLOW
SENSOR
THERMO COUPLING
RS485/AUX
AUX
RPM SMOKE
RS485 SERVICE
IN T° J
RESERVE
SENSOR
(optional)
Room
temperature
PROBE
(optional)
F
R
SOS
AERIAL
D
A
B
C
SMOKE
EXPULSION MOTOR
RES IGNITION
FUSE 2A
E
RIGHT-HAND
VENTILATION
MAINS 230
VA C
50 Hz +/-10%
F
TM 150 °C
LEFT-HAND
VENTILATION
M COCHLEA
lithium
+
CR2032
+-
ENGLISH
20
AUX/RS485 PORT
(connected via optional serial port cable code 621240)
A clean, potential free contact, used to connect a
telephone dialler or other control devices if the optional cable is
not used.

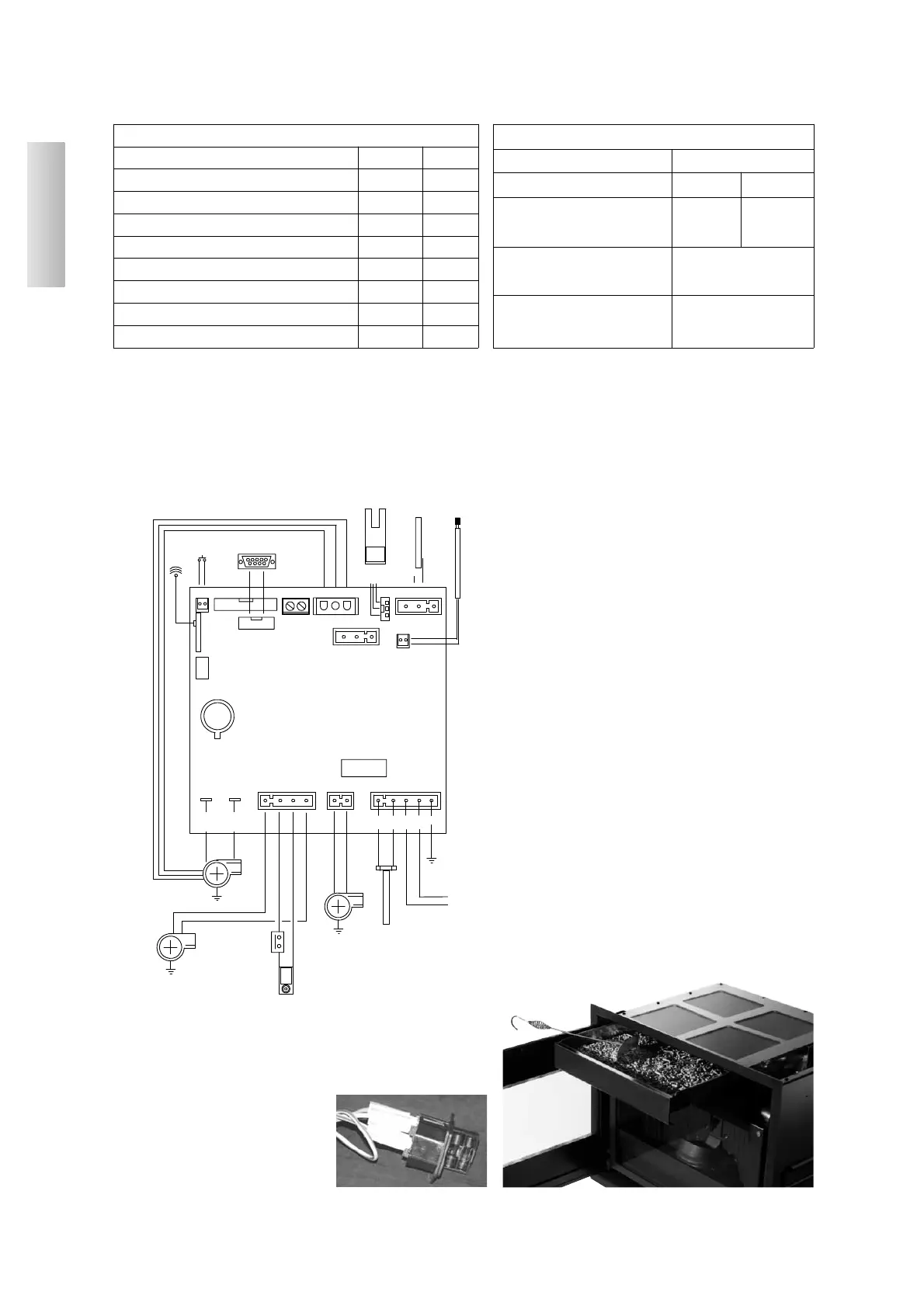

ELECTRICAL DIAGRAM
FUSIBILE
* sulla presa con interruttore posta
sul retro della stufa, sono inseriti due
fusibili, di cui uno funzionale e l'al-
tro di scorta.
*
*
*
The heatable room dimensions are calculated on the basis of pellets with an
lhv of at least 4300 kcal/kg and home insulation in compliance with Italian law
10/91, and subsequent changes together with an expected heat output of 35
Kcal/m³ per hour.
N.B.
1) bear in mind that external devices may cause interference.
2) caution: live parts. Servicing and/or inspections must be carried out by
qualified staff.
