EdilKamin PELLINSERT 54 User Manual

ENGLISH
21
12
3.5
2.5
54
7
6.5
70
73
4
15
26
6
60
3.5
54
12
Ø8
2
3
4
4
*
*
smoke output
A
A

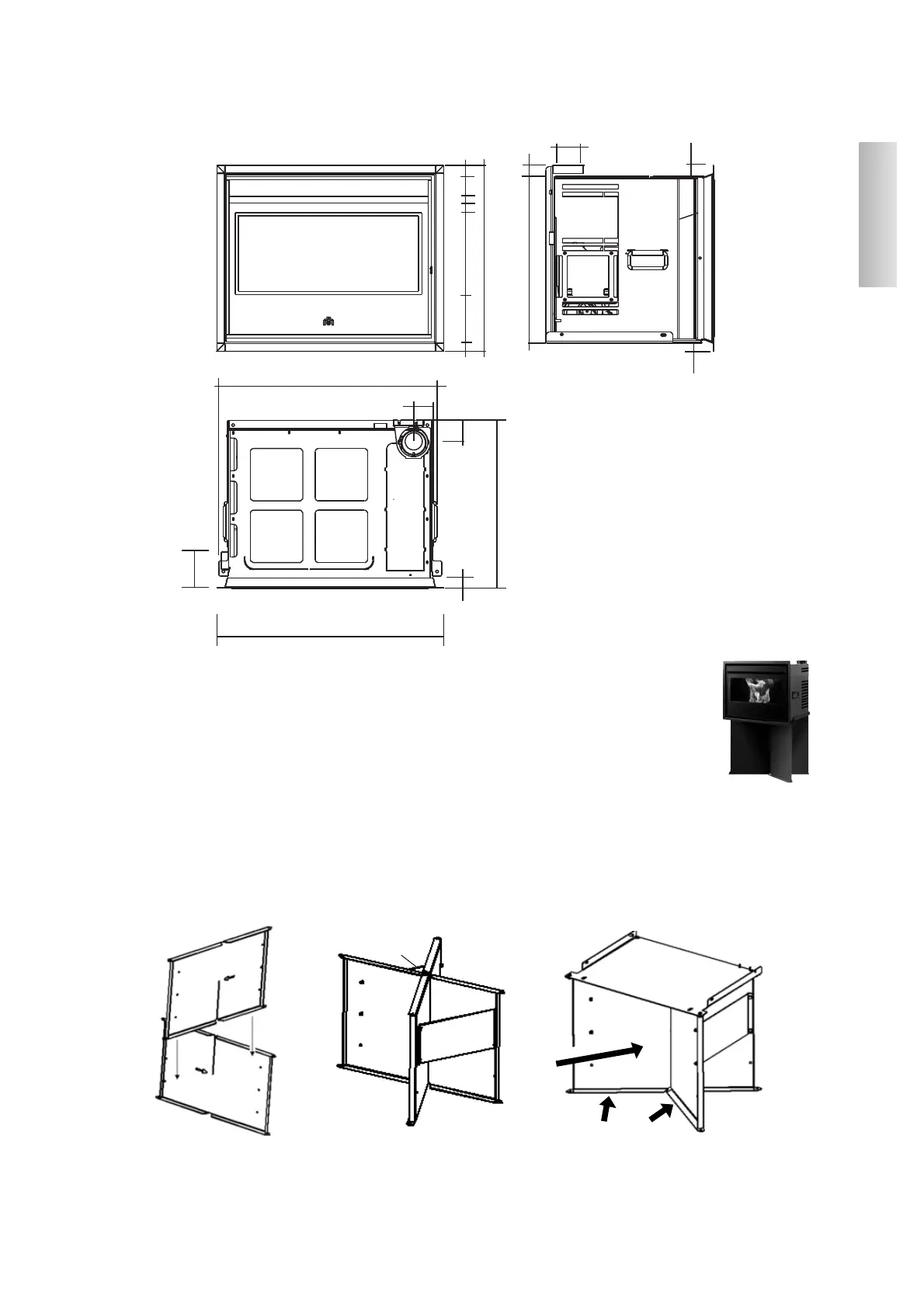

SPACE REQUIRED
OPTIONAL SUPPORT ASSEMBLY INSTRUCTIONS
(do not use where inserting in an existing chimney)
1) Assemble the two vertical walls (works both sides) according to figure no. 1.
The arrow indicates the direction from the back to the front.
2) Assemble the two strengthening flaps (A), fixing them with the bolts supplied.
3) Position the PELLINSERT 54 support plate (supplied) on the assembled walls as per point 1. Block tight using the 4
bolts supplied (fig. no. 2).
4) You MUST fix the support to the floor using the 4 fitting supplied (fig. no. 3).
Failure to comply with the above may cause the PELLINSERT 54 to upturn at serious risk to the user.
ONLY position the PELLINSERT 54 on its support once fixed to the floor.
N.B. For a correct installation, place the walls in such a ways so that the arrows engraved on them are not visible
on the front part; they must both be on the back part. Moreover, the folds of the walls must be directed towards
the front part of the support.
Front part
Folded towards front
