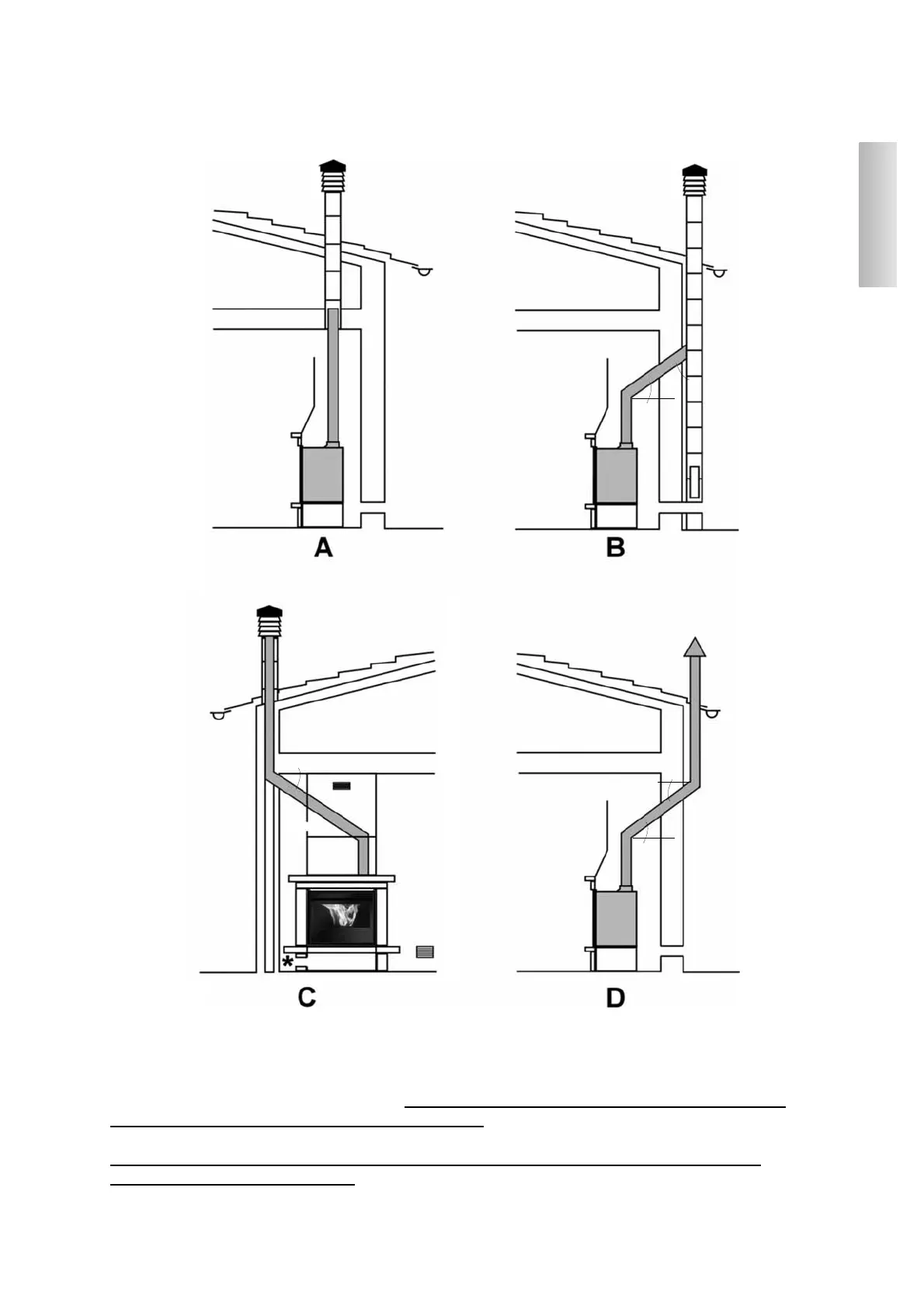

POSSIBLE INSTALLATIONS (fig. 2)
A: internal chimney flue up to the roof
B: external brick-built chimney flue
C: internal brick-built chimney flue
D: double-wall external steel chimney flue (for the following installation, the chimney flue must be
double-walled and well-insulated for the entire length)
* presence of air recirculation grills (36x9 cm) on the front and/or sides of the insert (supplied)
** max. angle 45° to the horizontal.
*
*
*
*
*
*
*
*
*
