Static Routing - Example
Router B
(192.168.2.90)
(192.168.3.70)
Router A
Segment 0
Segment 2
Segment
1
(192.168.1.xx)
(192.168.2.xx)
(192.168.1.100)
(192.168.1.1)
(192.168.3.xx)
(192.168.2.80)

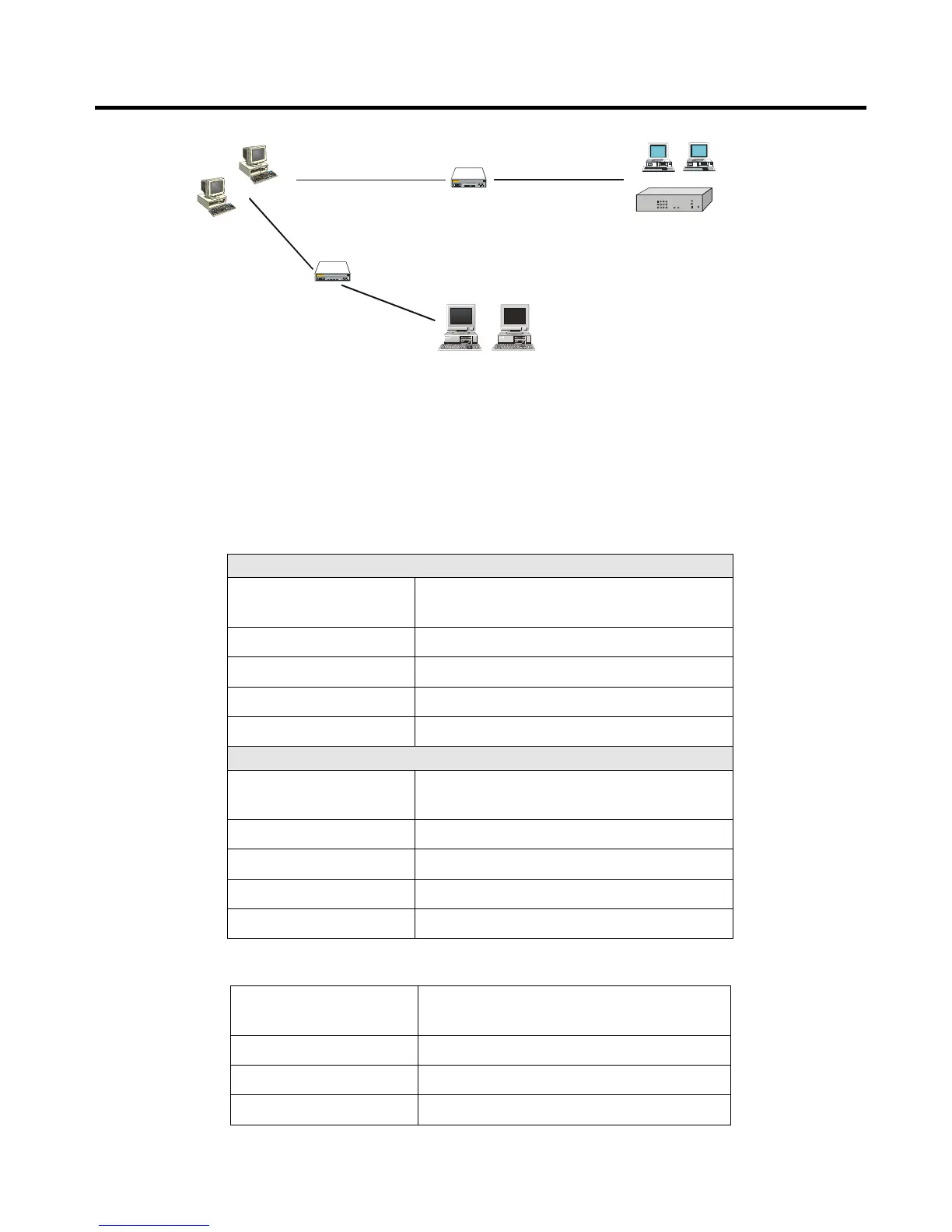

Figure 4-3: Routing Example
For The Load Balancer Gateway's Routing Table
For the LAN shown above, with 2 routers and 3 LAN segments, The Load Balancer requires 2 entries
as follows.
Entry 1 (Segment 1)
Destination IP
Address
192.168.2.0
Network Mask 255.255.255.0
Gateway IP Address 192.168.1.100
Interface LAN
Metric 2
Entry 2 (Segment 2)
Destination IP
Address
192.168.3.0
Network Mask 255.255.255.0 (Standard Class C)
Gateway IP Address 192.168.1.100
Interface LAN
Metric 3
For Router A's Default Route
Destination IP
Address
0.0.0.0
Network Mask 0.0.0.0
Gateway IP Address 192.168.1.1
Metric 2
