Edimax CV-7428nS Manual

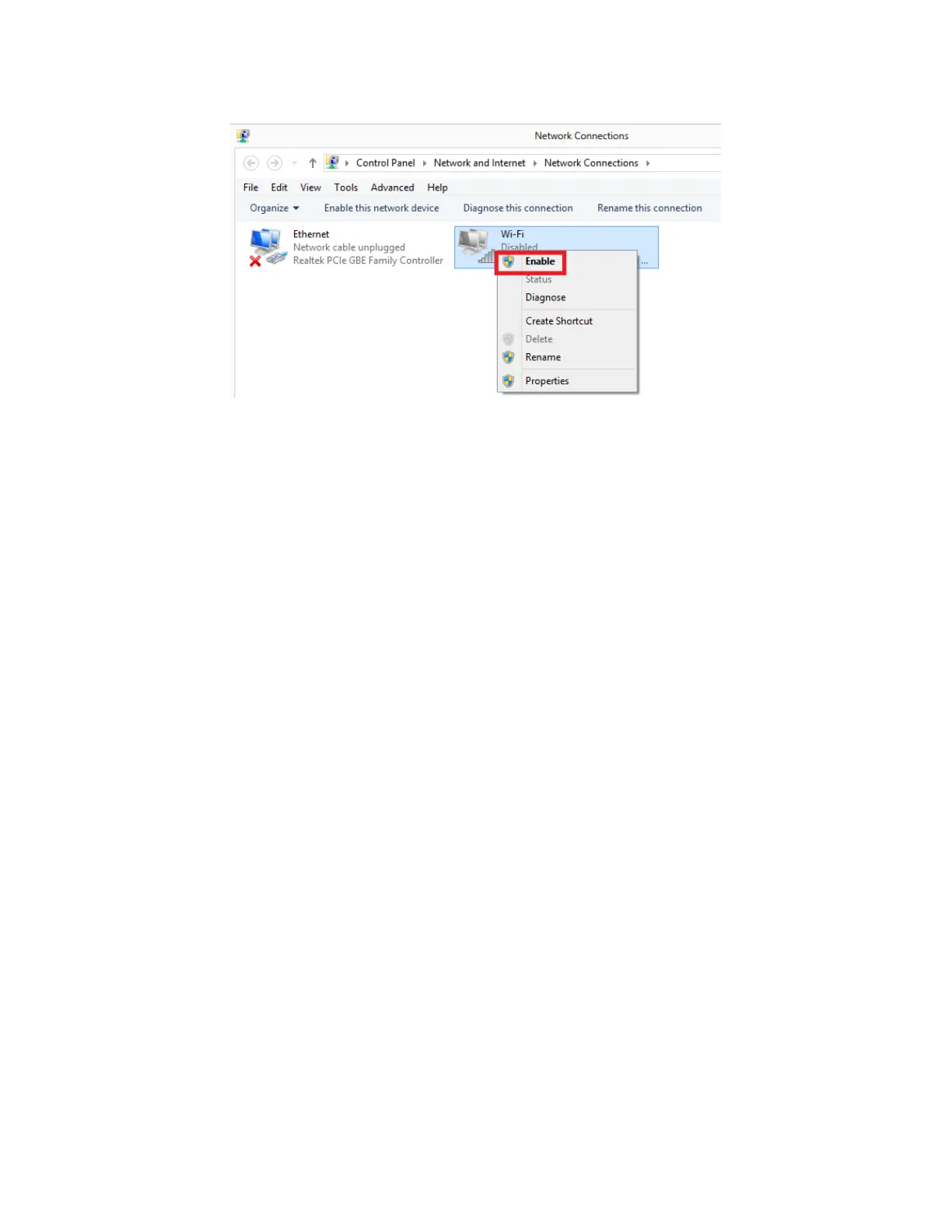

16. If your computer is WiFi capable and you have disabled the WiFi function in step 6. Remember to enable
the Wi-Fi connection. Go to the Network Connection Windows. Right click on “Wireless Network Connection”
or “Wi-Fi” icon. Click on “Enable”.

Edimax CV-7428nS Specifications

Power

power adapter voltage	DC 5V
power adapter current	1A

Operating Environment

humidity	10-90% (Non-condensing)
temperature range	0-40°C
temperature range in Fahrenheit	32 - 104°F

Wireless Standards

frequency band	2.4 GHz
IEEE 802.11n data rate	up to 300Mbps
IEEE 802.11g data rate	up to 54Mbps
IEEE 802.11b data rate	up to 11Mbps

Ports & Interfaces

LAN ports	5 x RJ-45
antenna type	2 x 2dBi external antennas
LED indicators	Power, Wireless, LAN ports

Weight and Dimensions

weight	155 grams
height	30 mm
width	127 mm
depth	96 mm
