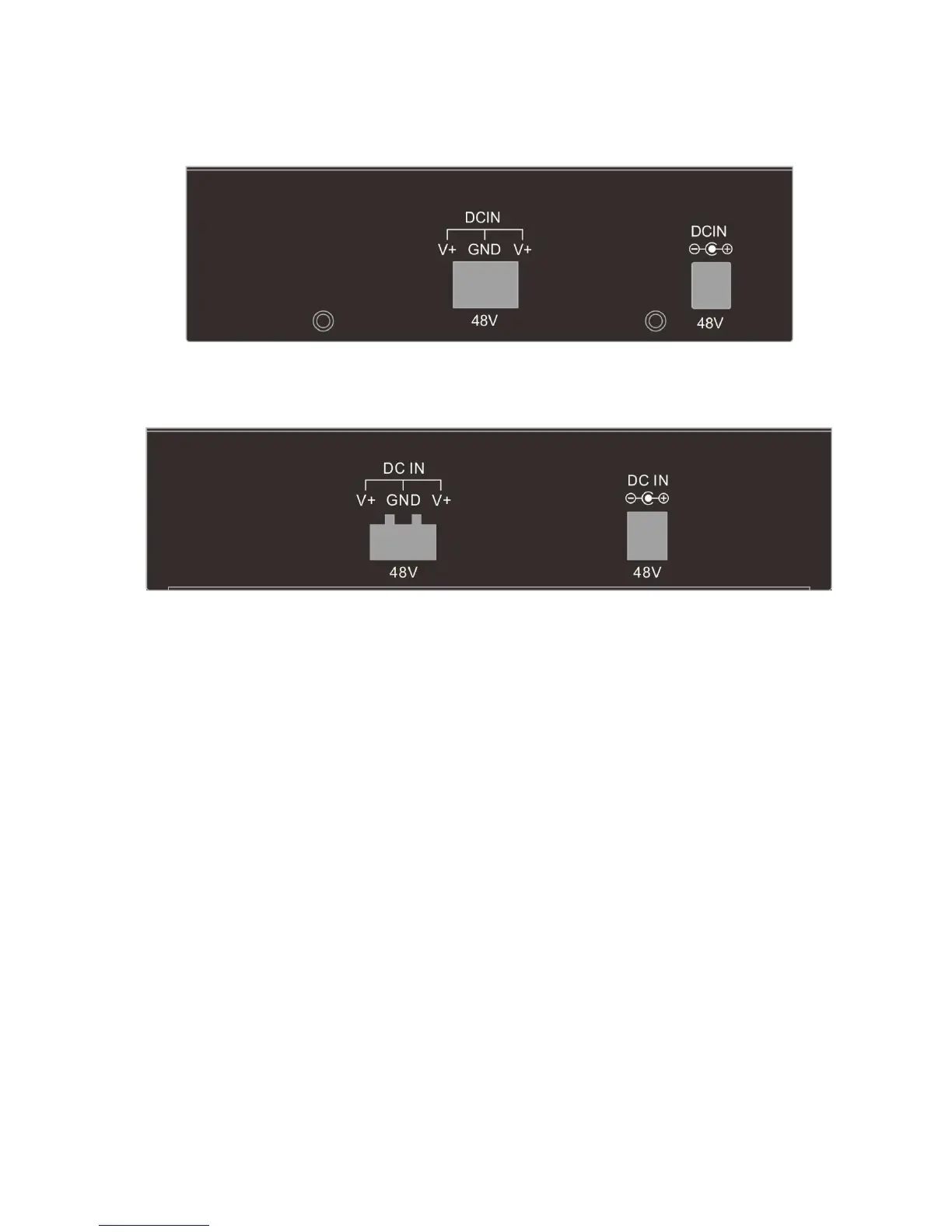

Back Panel:
*ES-1008PHE
*GS-1008PHE
Power Connector:
Plug in the DC power plug from provided power adaptor to the 48V DC IN
jack and plug the AC power plug to the wall socket using the included
power cord.
Terminal Block: Used for connection to auxiliary backup DC power,
supported input voltages is DC 48V/1A.
