Edwards E2M175 User Manual

A366-04-880 Issue A
Page 32 © Edwards Limited 2014. All rights reserved.
Edwards and the Edwards logo are trademarks of Edwards Limited.
Service, spares and accessories
7.4.10 Vibration isolators
Use vibration isolators (see Figure 8, item 4) to reduce vibration and noise when the pump is floor or frame-mounted.
You must use flexible bellows or other flexible piping between inlet and outlet connections when you fit vibration
isolators.

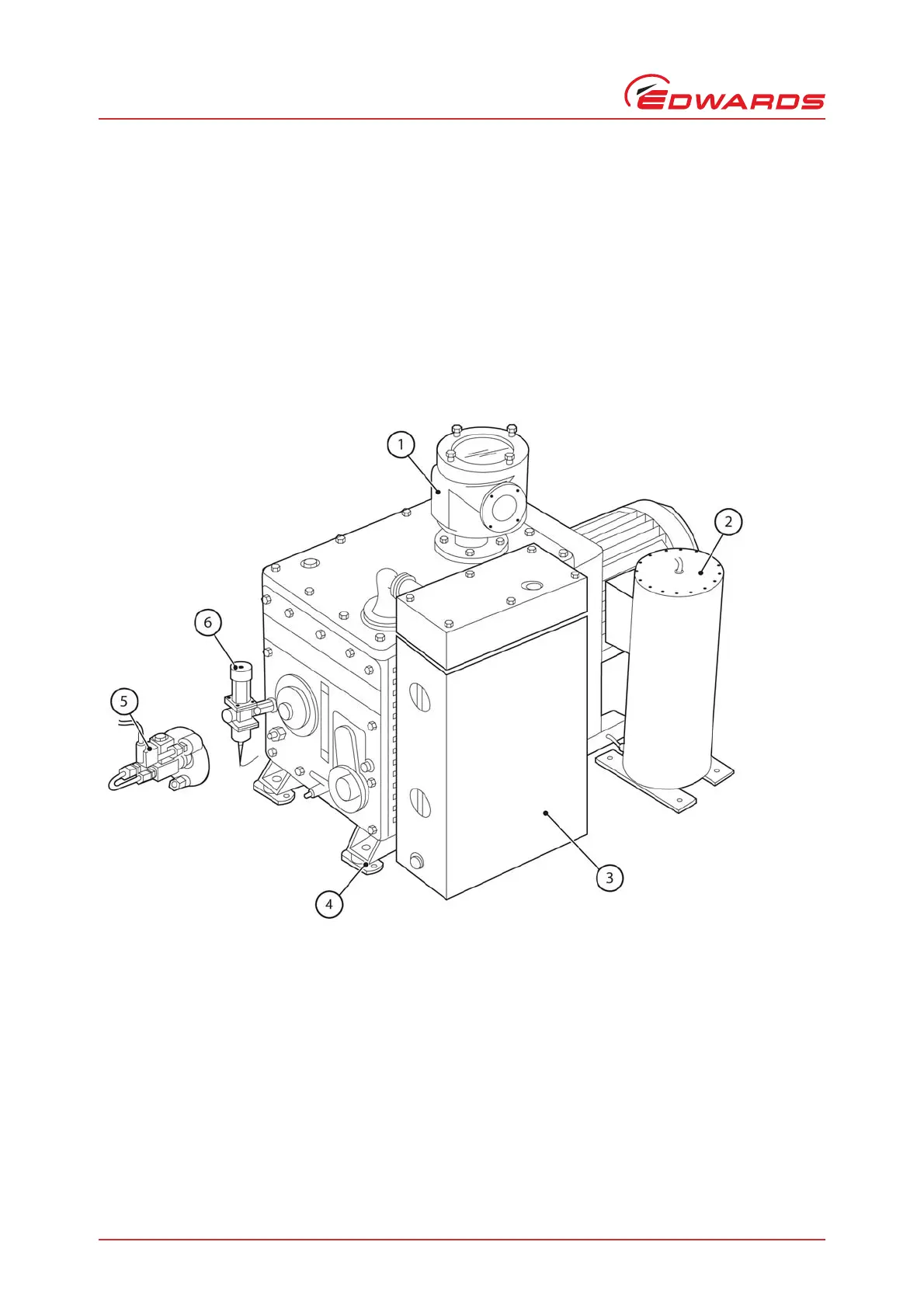

Figure 8 - Accessories
Product Item Number
Vibration Isolators (set of 4) A248-01-406
1. Inlet dust-filter or inlet catchpot or high-capacity
inlet dust-filter or inlet chemical-trap
2. External oil-filter
3. Outlet catchpot or outlet mist-filter
4. Vibration isolator
5. Solenoid-operated gas-ballast valve
6. Thermostatic control valve

Edwards E2M175 Specifications

General

Pump Type	Rotary Vane
Ultimate vacuum	1 x 10^-3 mbar
Motor power	4 kW
Power Consumption	4 kW
Pumping speed	142 CFM (cubic feet per minute)
Pump Speed	175 m³/h
Operating Temperature Range	12°C to 40°C
