Technical data

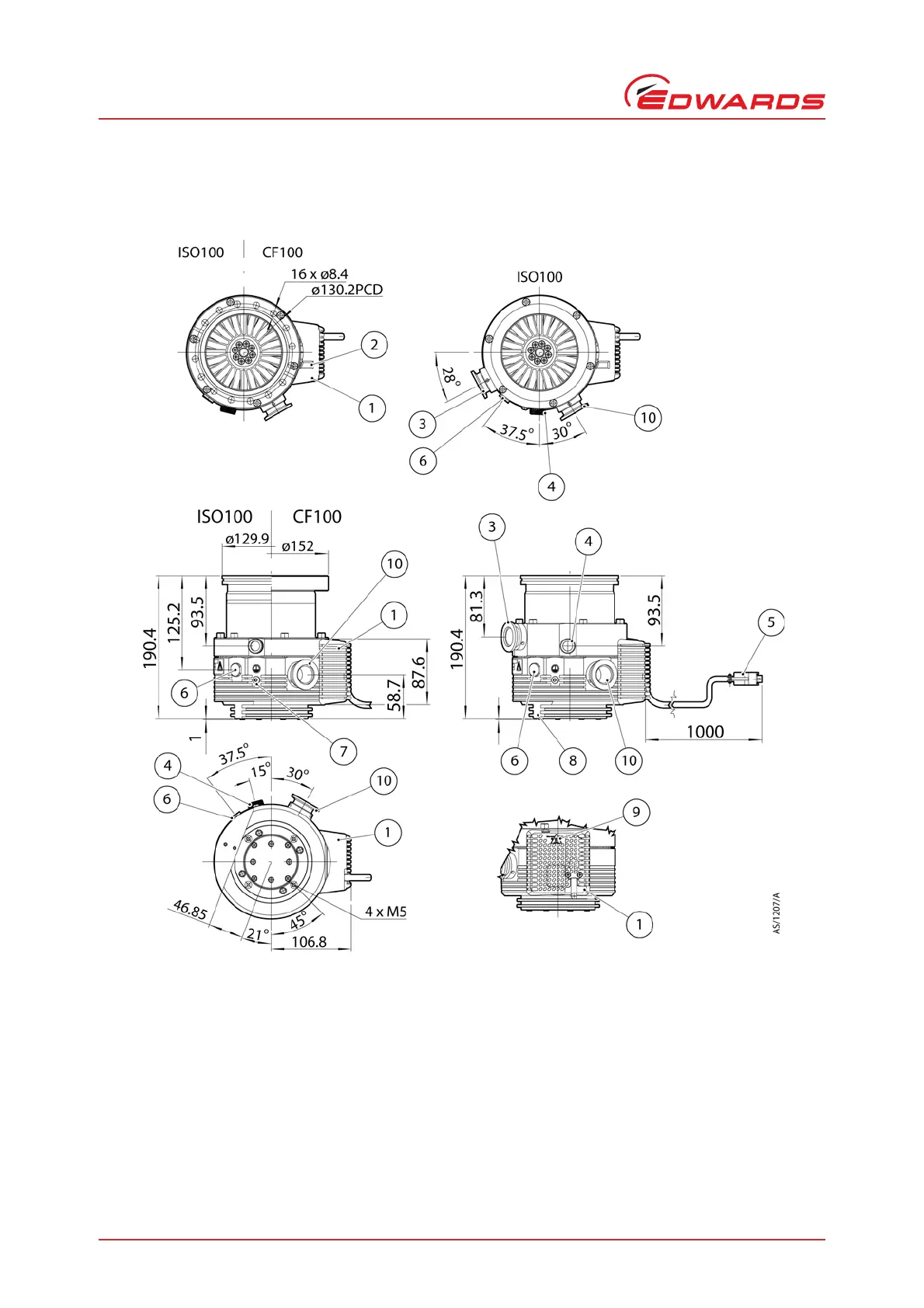

Figure 2 - EXT255DX dimensions (mm)
1. Podule
2. Podule connector socket (for fan/TAV valve)
3. Interstage port (EXT255iDX only)
4. Manual vent valve in vent port
5. Logic interface connector
6. Purge port (blanked off)
7. Earth connection
8. Cooling block mounting frame
9. Podule indicator LEDs
10.Backing port
