Installation

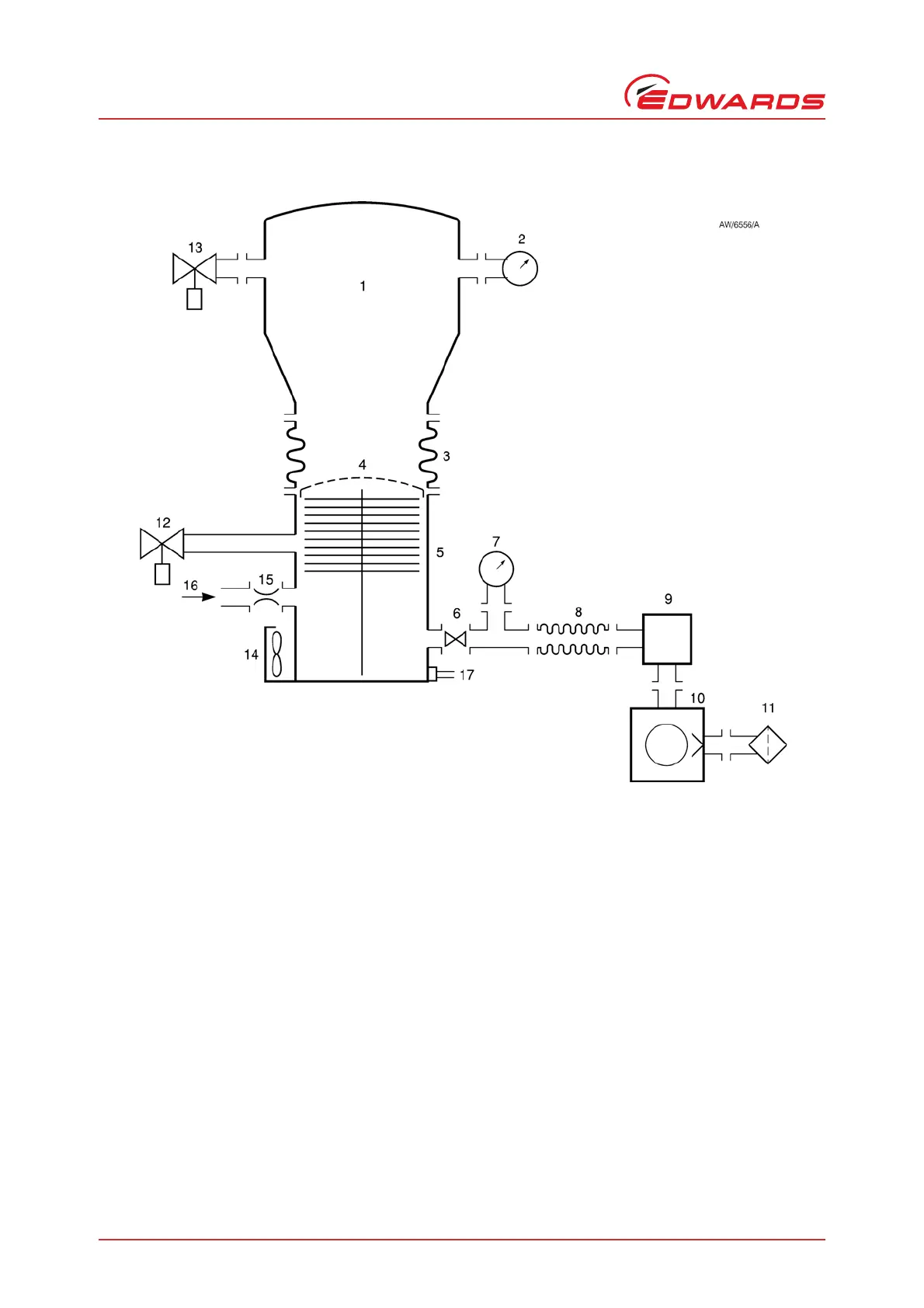

Figure 5 - Typical pumping system with a DX pump
1. Vacuum system
2. High-vacuum gauge
3. Vibration isolator
4. Inlet screen
5. DX pump
6. Backing valve
7. Vacuum gauge
8. Flexible bellows
9. Foreline trap
10.Rotary backing pump
11.Mist filter
12.Vent valve
13.Alternative position for vent valve
14.Air cooler
15.PRX purge restrictor
16.Regulated purge gas supply
17.WCX water cooler and connections
