Edwards iXL500Q

© Edwards Limited 2012. All rights reserved. Page 33
Edwards and the Edwards logo are trademarks of Edwards Limited.
Installation
M561-00-880 Issue C

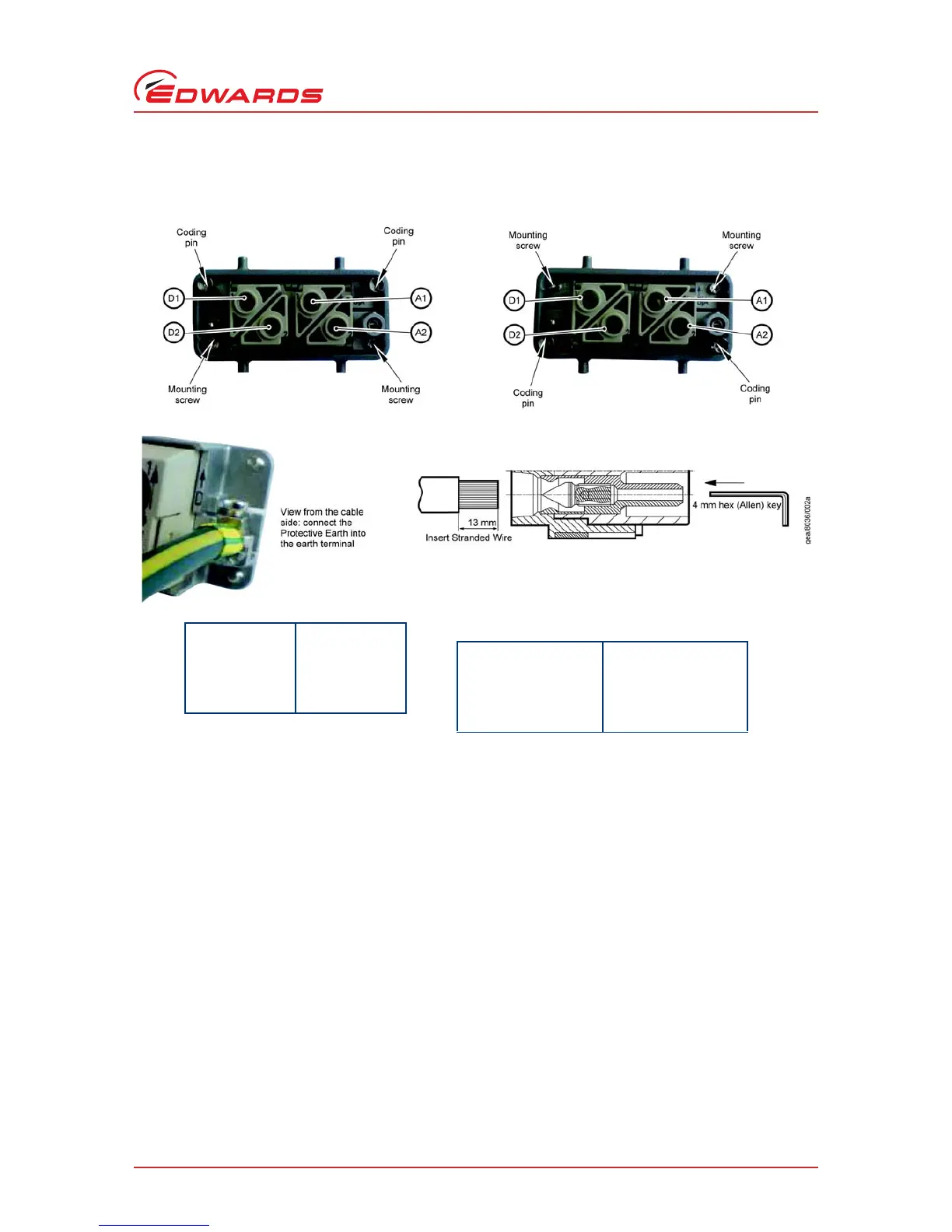

Figure 9 - The Harting 100A axial screw module cable-mounted connector
Low volt pin configuration
High volt pin configuration
Pin identification
Pin A1 Phase 1
Pin A2 Phase 2
Pin D1 Not connected
Pin D2 Phase 3
Torque settings for connector pins
Cable size (mm
2
) Max torque setting (Nm)
10 6
16 6
25 7
35 8
