A652-01-840 Issue P
Page 8 © Edwards Limited 2018. All rights reserved.
Edwards and the Edwards logo are trademarks of Edwards Limited.
Parts list

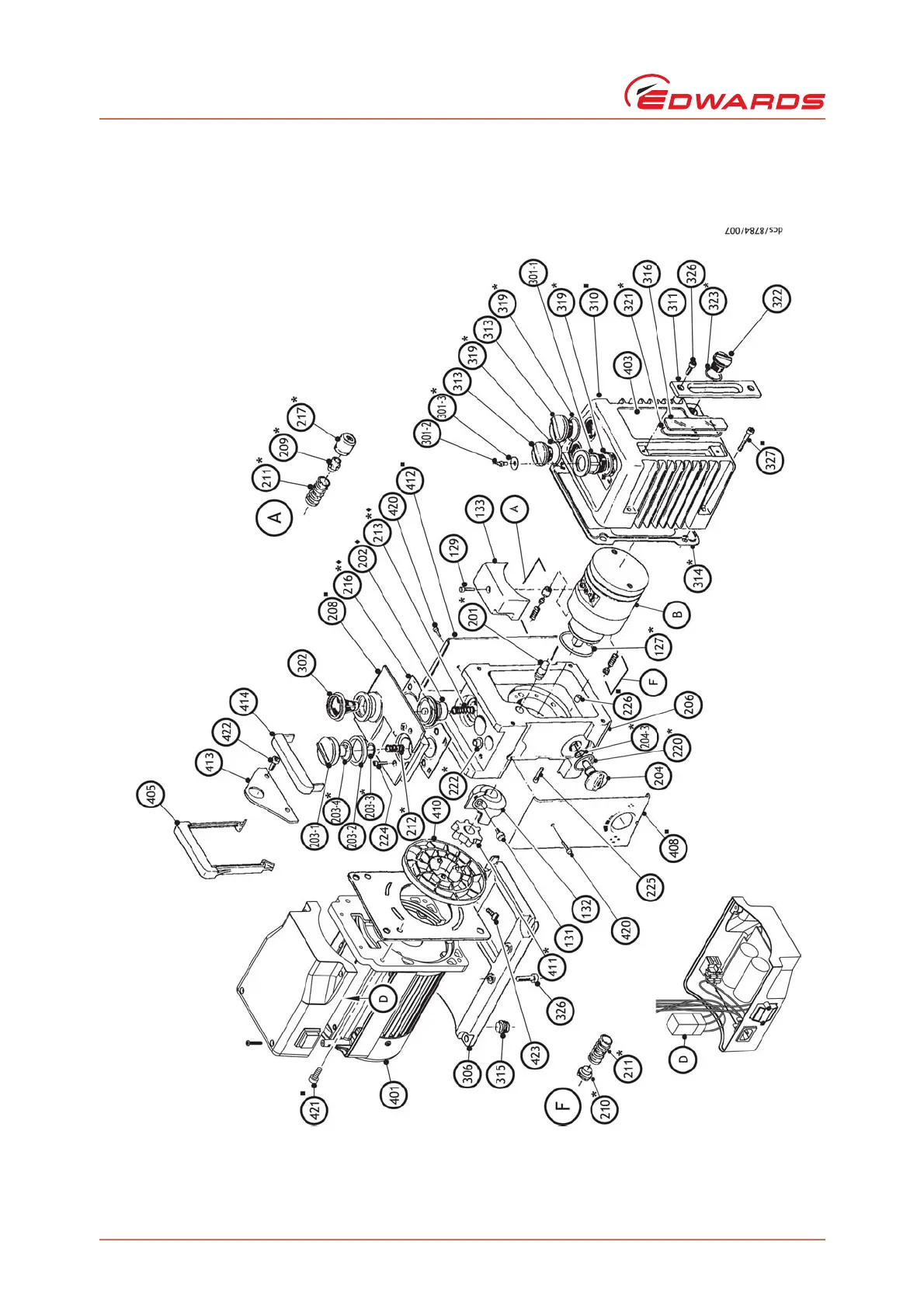

Figure 1 - Exploded view of the RV pump with 1-phase motor (post 2010 configuration)
A Oil pressure/dump valve assembly
B Cartridge: see Figure 3
F Gas ballast check valve assembly
D Motor starting relay
202 Inlet valve assembly:
see Figure 4
208 Top-plate
226 Restrictor
310 Oil-box
327 Bolt
408 Side panel
412 Side panel
421 Bolt
* Included in the clean and overhaul kit:
see Table 5
† Included in the Blade Kit: see Table 3
Included in the Inlet Valve Kit:
see Table 4
Included for reference only: see key
