HD490 Smart Encoder
35 Copyright © 2000-2012 EEG Enterprises, Inc.
All Rights Reserved.

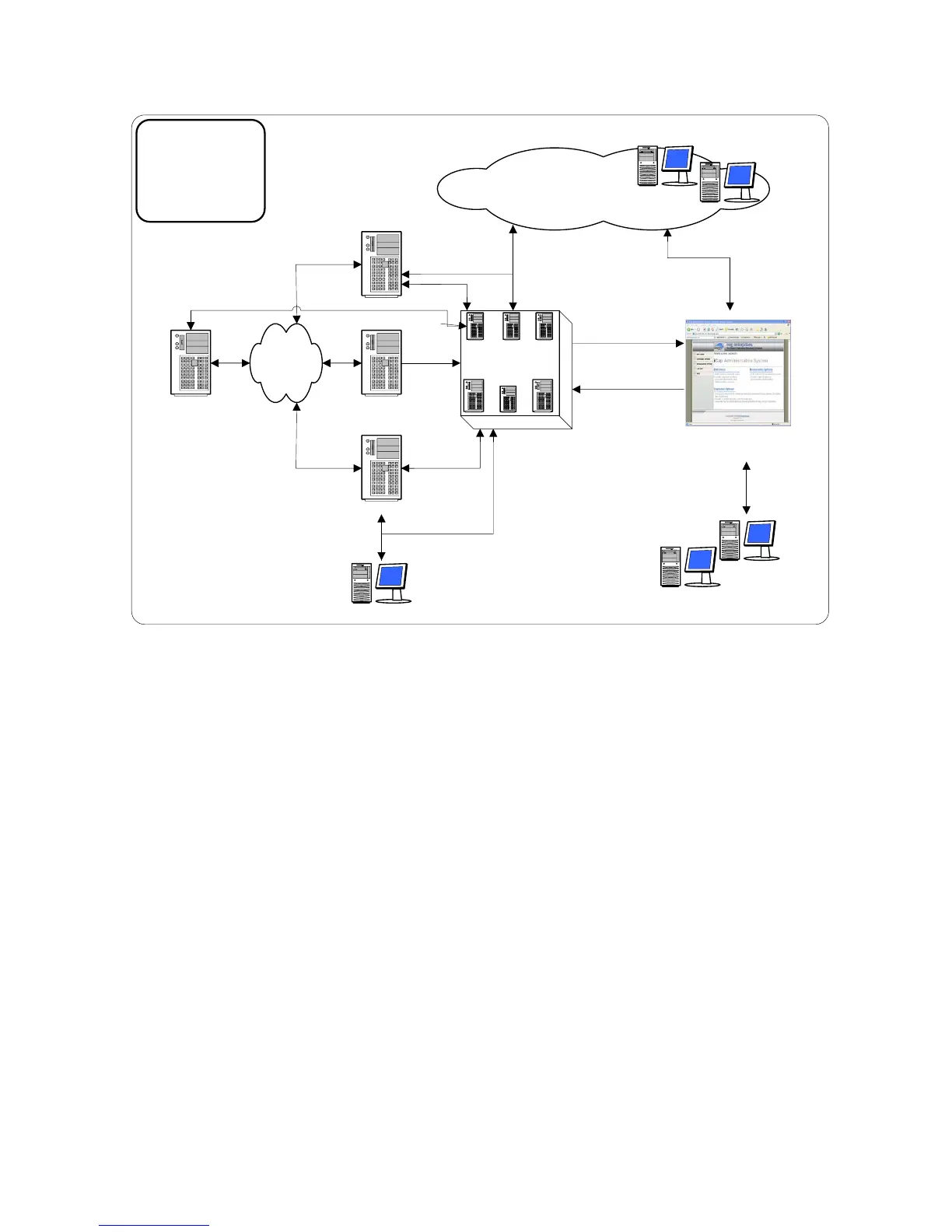

Connection Server
&
Authentication
Manager
Relay Server
Relay
Network
Relay Server
Relay Server
Relay Server
Broadcast Studio
iCap Administrative
Website
Monitor information
Configuration
of accounts
Captioner
Caption Agency
Job Coordinator
Broadcast
Administrator
HD490
iCap
Realtime IP
Caption Link
Captions, Chat (up)
Audio, Monitoring, Chat
(down)
Authentication (up)
Provides Relay Addresses
(down)
Audio Monitoring
(up)
Captions
(down)
Refer to the iCap™ manual in the ‘Manuals’ section on the HD490
configuration page for complete details about getting started with iCap™.
Other Modules
AFD Advanced AFD preset insertion, code swapping, and control
Audio Metadata Insertion of Dolby® audio metadata
KLV Insertion of MISB-0605 telemetry and other metadata
NAS/BAS Server-based affiliate communications systems
NetClone Clone commands for encoder chaining through TCP/IP
NTP Network time sync
SCTE104 Digital Program Insertion cues, precursor to SCTE-35 data
XDS Server-based scheduling of program-specific XDS data
