Emptying the pump

to drain off the fluid: remove screw

Horizontal pump

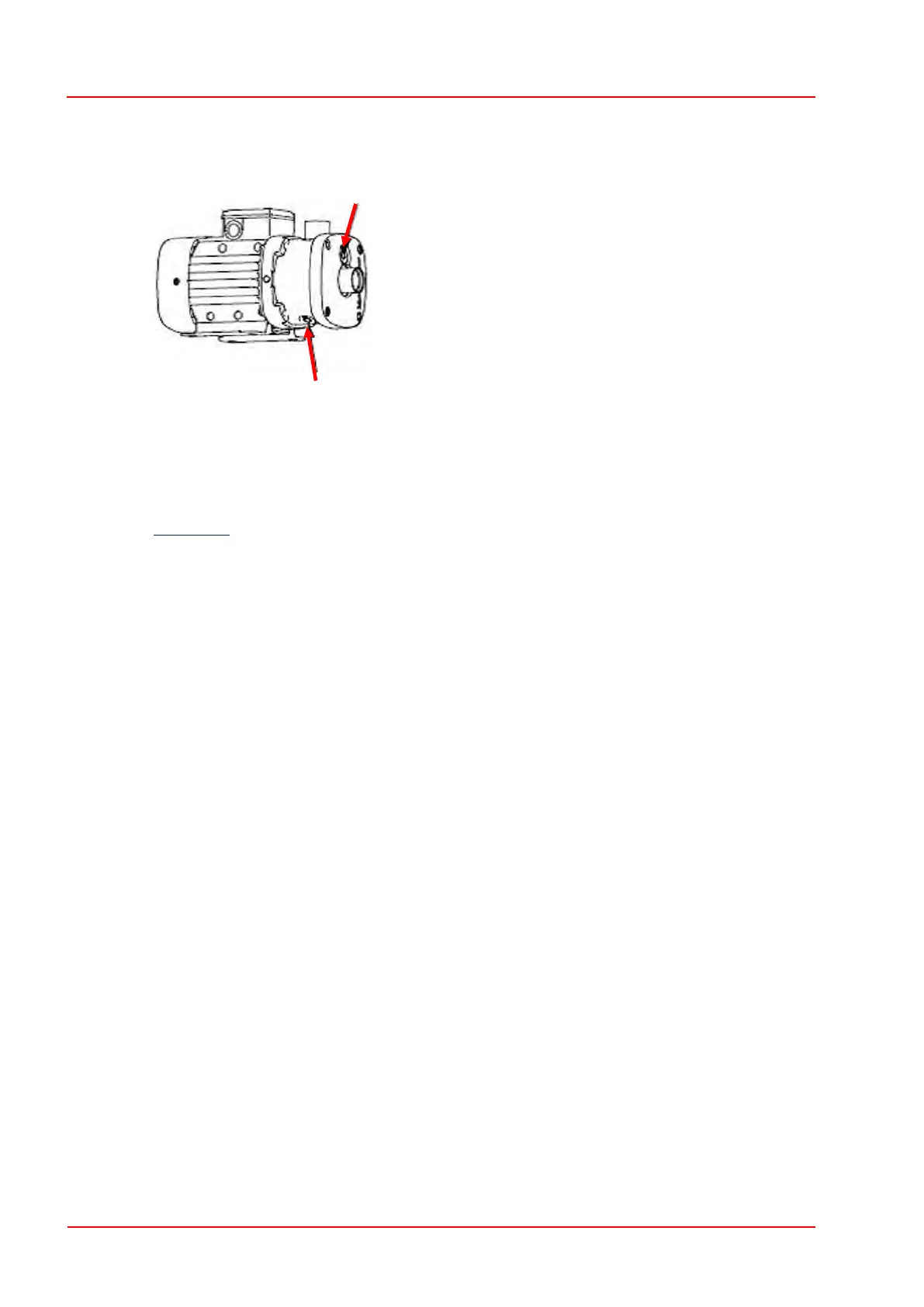

Fig. 4.1 Emptying the pump

1 Removal of rest air

2 Opening for draining

Procedure:

1. Remove screw (see Fig. 4.1).

2. Empty completely the pump for avoiding any damages.

After complete draining reinsert the filling plug and drain screw into the pump

Install and fit the water filter back into the filter cup.

4.3 Packing

The unit is screwed provided with suitable packing for overland transport.

4.4 Transport

Transport-specific data

See Chap. 13.1 Technical data for weight and dimensions. The cooling unit must be secured to

prevent shifting and tipping in all cases. The cooling unit must be upright and contain no

medium when transported.

Transport damages

Upon receipt, the cooling unit must be immediately checked for damage incurred in transit.

Transport damage must be noted on the delivery note and the shipping agent notified

immediately. A damaged cooling unit must not be put into operation.

Once delivered, the cooling unit must be transported using a forklift truck or a crane. During

transport, ambient temperatures of +5 to + 63 °C are permissible. Lower temperatures only after

completely emptying the water circuit (see Chap. 4.2.1 Emptying (frost protection)).

Transportation by forklift truck

Maintain a slow lifting speed.

Pay attention to the unit's centre of gravity, so that it does not tip over.
