EF EVO 45 - Page 65

3.1 3.2 3.3 3.4 3.5 3.6 3.7 3.8
=ANLAGE
+ORT
Blatt Nr.
3
Idx.
-
Schema Nummer
Name:
Erstellt am: a
Geprüft am:
0390.013_ES
Projekt/Kunde
Adresse (Ort)
HP Indigo 10000
Titel
Maschinentyp
compressor, pump
10.06.14
MILI
Name:
11.06.14
FRLO
b
c
d
Maschinenart
EVO 45 60Hz. Version
Projekt Nr.
2< Bl. > Bl. 4
Bl. total
11
4.0
PE
4.0
L2
4.0
L3
4.0
L1
3S1
13
14
23
24
23
24
max.!
!
3*460V!
60 Hz!
31.3 kW!
47.3 A
Ι > Ι > Ι >
3Q3
1
2
3
4
5
6
16.8A
Ι > Ι > Ι >
3Q6
1
2
3
4
5
6
7.2A
11K1
1
2
3
4
5
6
10K5
1
2
3
4
5
6

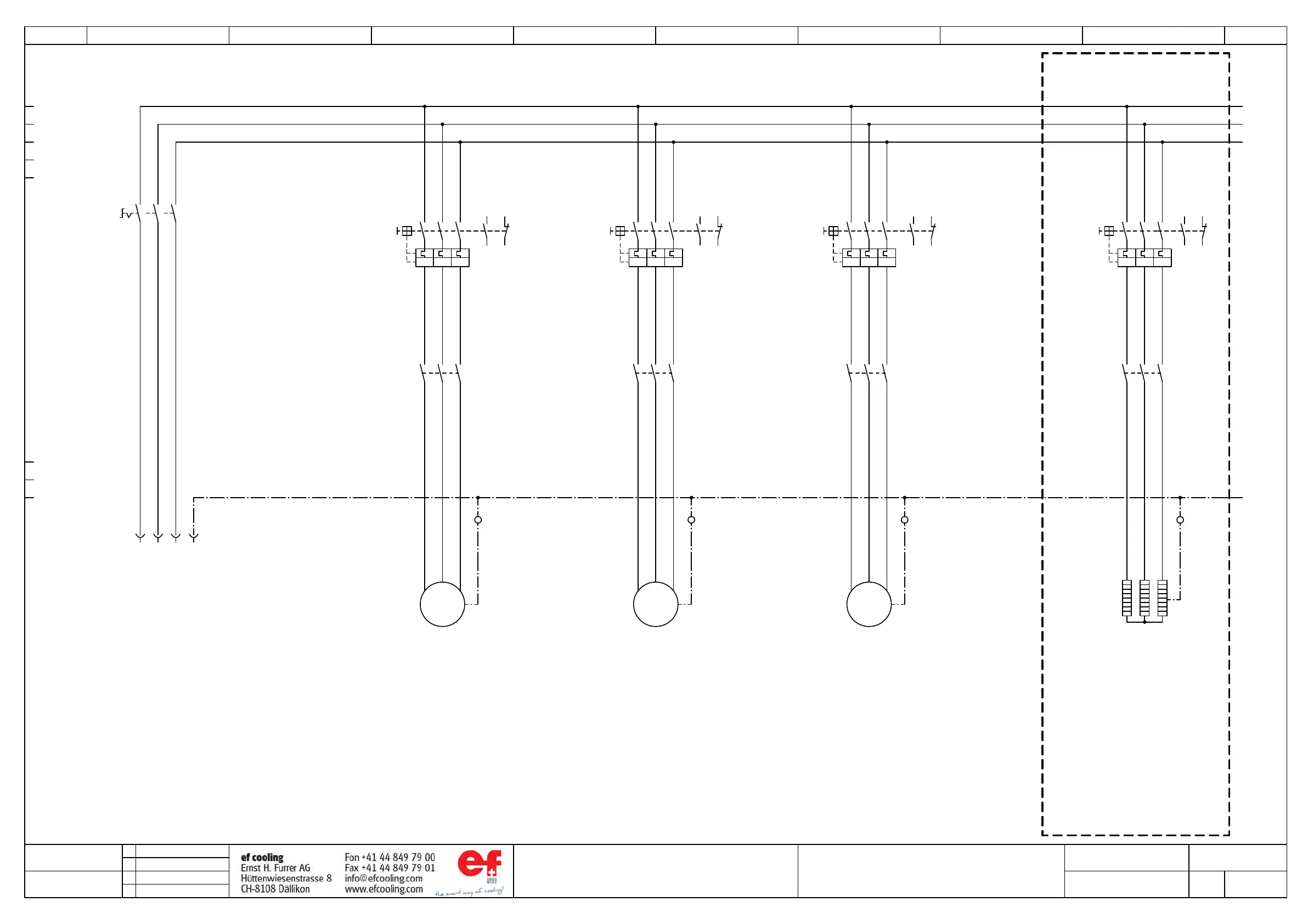

VERDICHTER 1!
!
COMPRESSOR 1!
!
COMPRESSEUR 1!
!
COMPRESSORE 1!
!
COMPRESOR 1
21
22
13
14
8.4
21
22
13
14
8.6
3
~
M
3M3
U1 V1 W1 PE
!
10.2 kW (12) kW !
15.3 A (16.8) A!
3000 min-1
3
~
M
3M6
U1 V1 W1 PE
!
4 kW!
7.2 A!
2900min-1!
X1
1 2 3 4
EINSPEISUNG !
!
POWER SUPPLY!
!
ALIMENTATION!
!
ALIMENTAZIONE!
!
FUENTE DE ALIMENTACIÓN!
Ι > Ι > Ι >
3Q5
1
2
3
4
5
6
16.8A
11K2
1
2
3
4
5
6
VERDICHTER 2!
!
COMPRESSOR 2!
!
COMPRESSEUR 2!
!
COMPRESSORE 2!
!
COMPRESOR 2
21
22
13
14
8.5
3
~
M
3M5
U1 V1 W1 PE
!
10.2 kW (12) kW !
15.3 A (16.8) A!
3000 min-1
PE PE PE
VERBRAUCHERPUMPE!
!
CONSUMER PUMP!
!
POMPE CONSOMMATEUR!
!
CONSUMATORI POMPA!
!
CONSUMIDORES DE LA
BOMBA!
AWG 6 black! AWG 6 black! AWG 6 black!
AWG 8 black!
AWG 8 black!
AWG 8 black!
Ι > Ι > Ι >
3Q8
1
2
3
4
5
6
12A!
10K1
1
2
3
4
5
6
21
22
13
14
6.8
PE
3E8
L1 L2 L3 PE
9.2kW/11A
TANKHEIZUNG!
!
TANK HEATER!
!
CHAUFFAGE RESERVOIR!
!
CIRCUITO RASCLDATORE!
!
CIRCUITO CALENTADOR!
!
OPTION WINTER!
OPTION WINTER
AWG 6 black!
AWG 6 black!
AWG 6 black!
www.macschema.ch, E6.0, (0092)
