Example of a Sequence

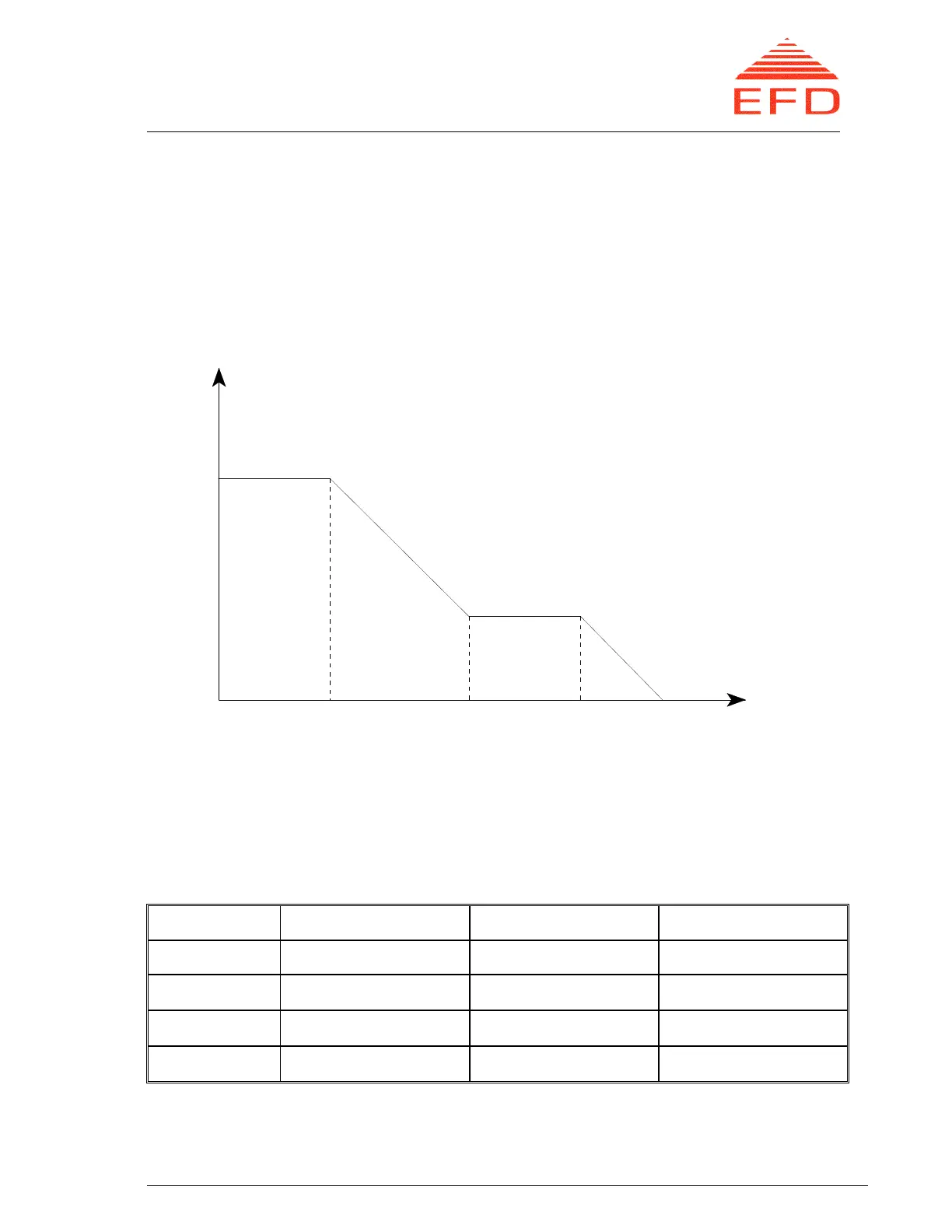

Figure 7 illustrates a heating sequence, while Table 1 shows the sequence
parameters. The example on the next page shows how to program this sequence.
Figure 7. Sequence A
Table 4. Sequence A
Program No: 2
Segment no. Segment type Segment duration Target setpoint
0 Step 4 min. 80%
1 Ramp 5 min. 30%
2 Step 4 min. 30%
3 Ramp 3 min. 0%
Setpoint [%]
Time [mins]
0 4 9 13 16
Segment no 0
Segment no 2
Segment no 3
Segment no 1
0
20
40
80
60
100
