6 OPERATION
WARNING!
To avoid personal injury, do not open the
equipment's covers or panels. Under any circum-
stances, do not operate the equipment without the
covers and panels properly installed.
6.1 Before Starting
1. Place the induction heating unit in its working position.
2. Fit a suitable induction coil to the hand held transformer; refer to paragraph 4.
CAUTION!
CORRECT VOLTAGE: Make sure that the supply
voltage matches the specifications.
WARNING!
PROTECTIVE GROUNDING: To avoid electric shocks,
make sure the protective grounding conductor for
the main power cable is connected to ground.

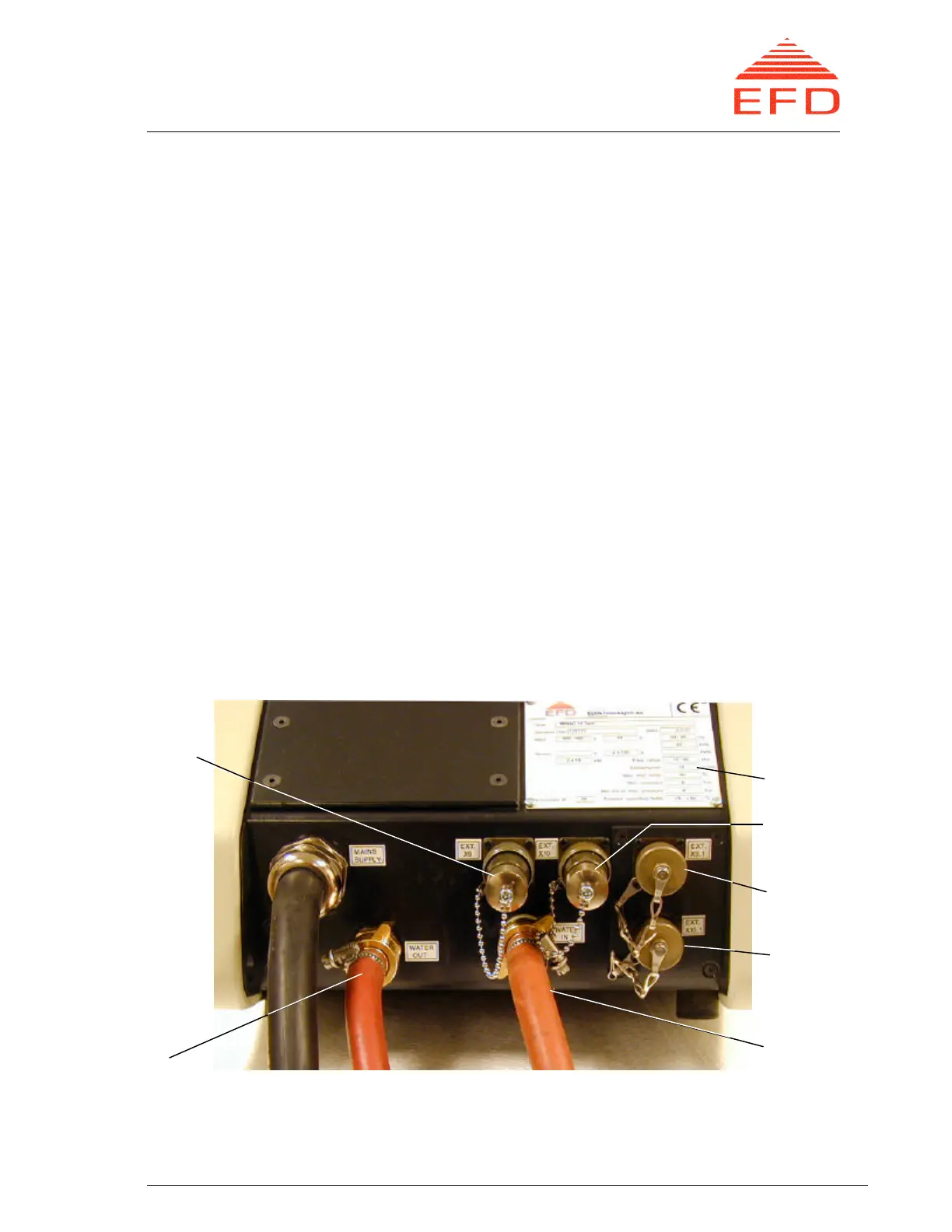

Figure 8. Supply input/output panel on rear of cabinet.
Water out
Water in
Nameplate
Signal
socket X9
Signal
socket 9.1
Signal
socket X10
(for Twin)
Signal
socket X10.1
(for Twin)
