7.3 Commissioning the photovoltaic solar inverter
Check whether the DC circuit breaker is switched on and set it to "ON" if
necessary.
Set the AC circuit breaker to "ON".
Wait 30 seconds (legally required waiting period).

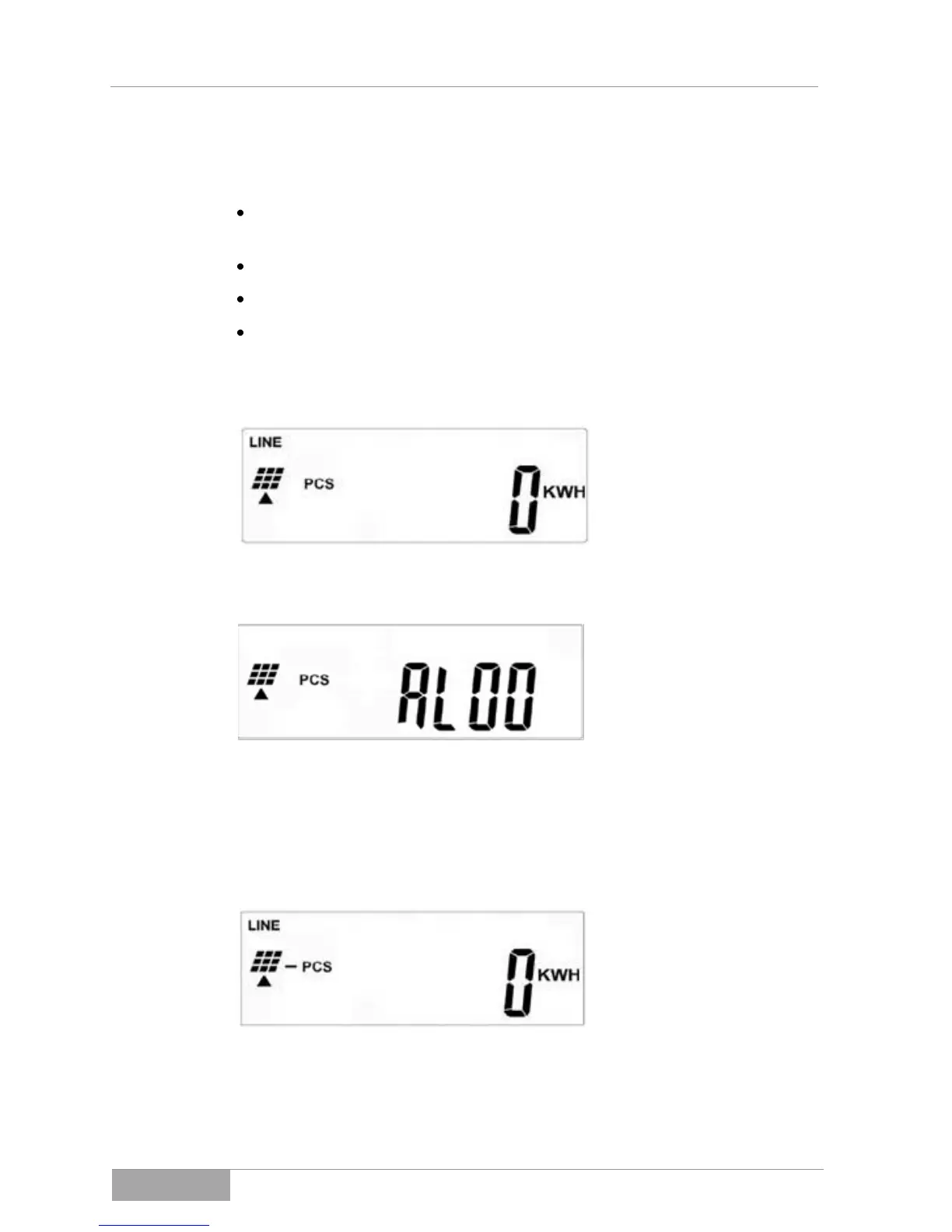

The LCD display changes between the Displays C1 (total feed power) and
Display C2 (alarm code). The yellow LED lights up and the green LED
blinks.
Fig. 7-3 - 1 Display C1
Fig. 7-3 - 2 Display C2
After 30 seconds, the yellow LED goes off and the green LED blinks again. The
LCD display shows Display D.
Fig. 7-3 - 3 Display D
