EFFEKTIV TRIUMPHATOR 2000X - Threading the Needles; Threading the Looper

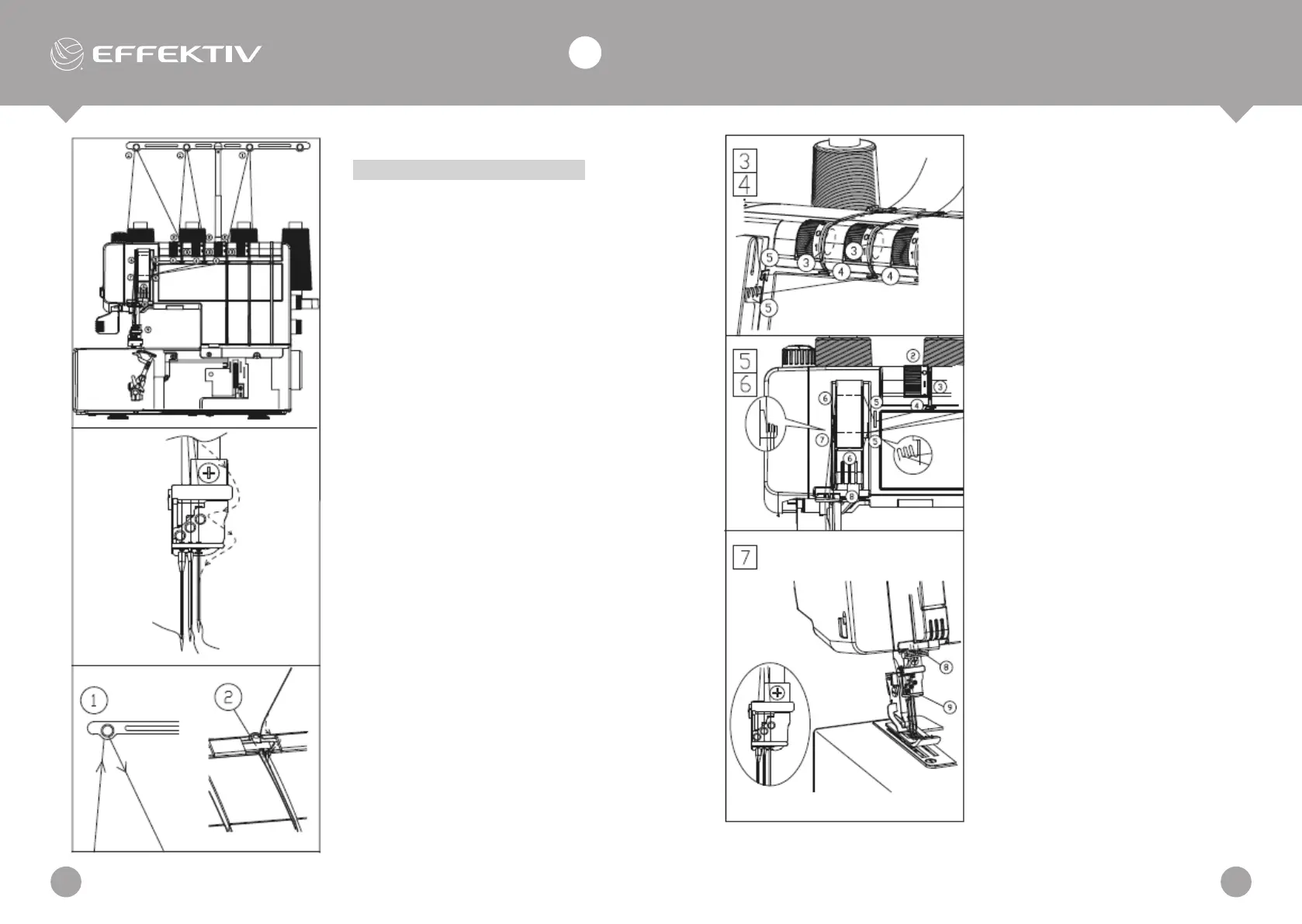

Threading the Needles:
Thread each needle in the
following order:
1. Pull out the thread through
the holes of the telescopic
thread guide from the left
side from back to front.
2. Pass the thread through
the holes on the left side of
the thread guide plate as
illustrated.

Thread Guide Plate
3. Holding the thread on both
sides, insert it between the
tension discs and tighten it
a little. (Raise the presser
foot lever so that the thread
can easily pass between the
tension discs)tension discs)

Tension disks
1. Pass the thread through the
thread guide plate A from the
right.

Thread guide plate A
2. Draw the thread to the left and
pass it through the thread guide
plate B. Draw the thread down
and slip it behind the upper take-
up lever

Thread guide plate B

Upper take-up lever
3. Pull the thread down and pass it
behind the thread guide plate C.

Thread guide plate C.
4. Thread each needle as follows:
Left Needle: Pass the thread behind
the upper take-up lever plate from the
Bring the thread between the rst and
second tooth on the left side.
Center needle: Pass the thread behind
the thread guide plate on the right
side. Bring the thread between the two
inner teeth.
Right needle: Pass the thread behind
the thread guide plate on the right
side. Bring the thread between the rst
and second teeth on the right side.

Thread guide plate

Needle bar guide
