b) Second Menu:
Control bank lever diagnostics

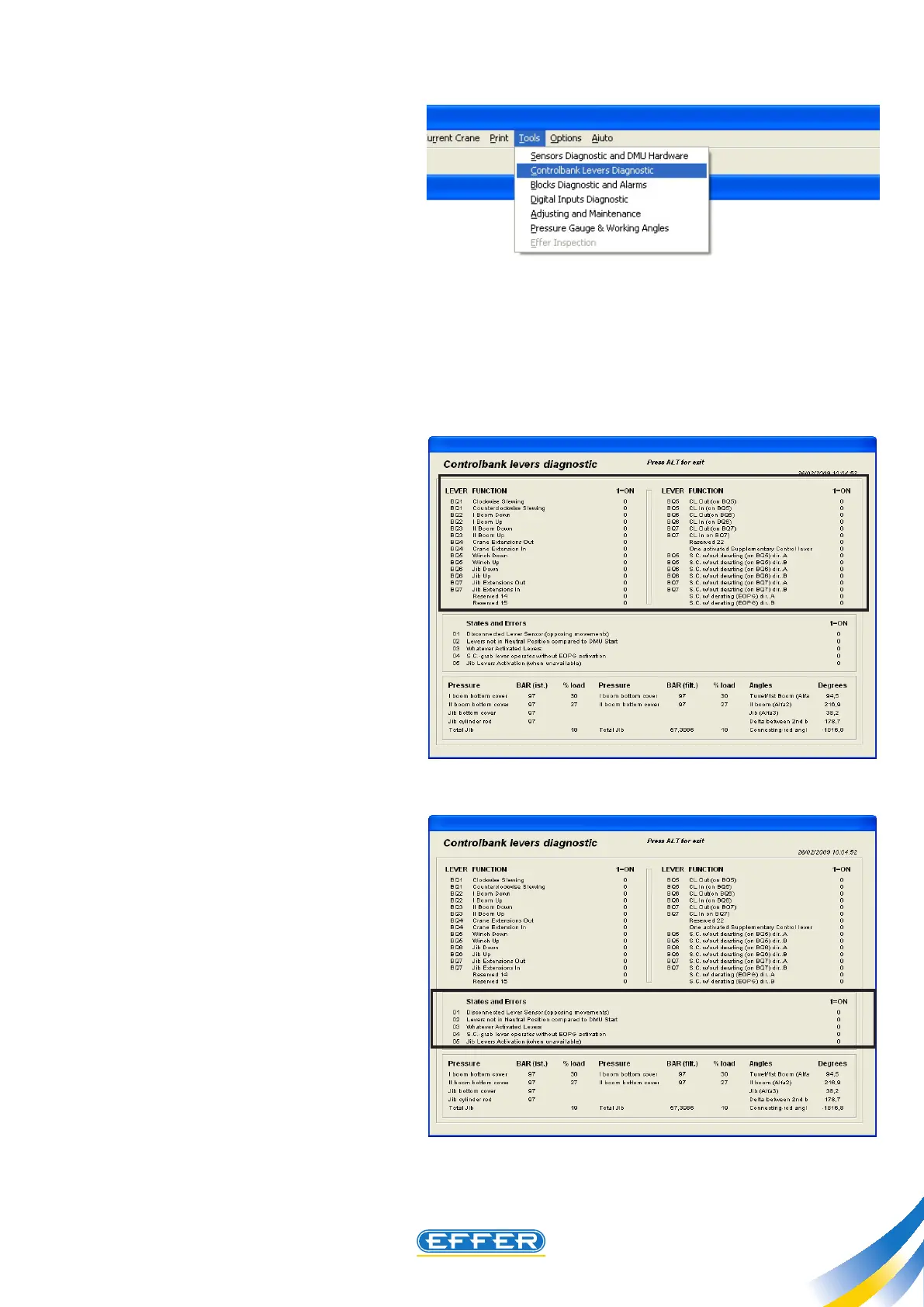

u Click on the icon “Control bank le-
ver diagnostics”
“Control bank lever diagnostics” win-
dow opens up
b1) Function lever
If the value 0 appears next to the menus
this means that the control lever of the
control bank is in its central position,
and it is OK.
If 1 appears and the control bank lever
is not operated, there is a fault in a con-
necting electrical cable or in an electric
microswitch tted to the hydraulic con-
trol bank.
By operating the individual control
levers it is possible to run a check for the
electric functionality: This is reported
by the number 1 appearing next to the
manoeuvre that has been carried out.
b2) Conditions and Errors
The number 1 appearing next to the
heading “Conditions and Errors” indi-
cates that a fault is in the electrical part
of a control bank lever: it shows also that
one crane control bank lever is operated
at that moment.
