Efka DC 1550 - Page 16

EFKA AB320A5200
18

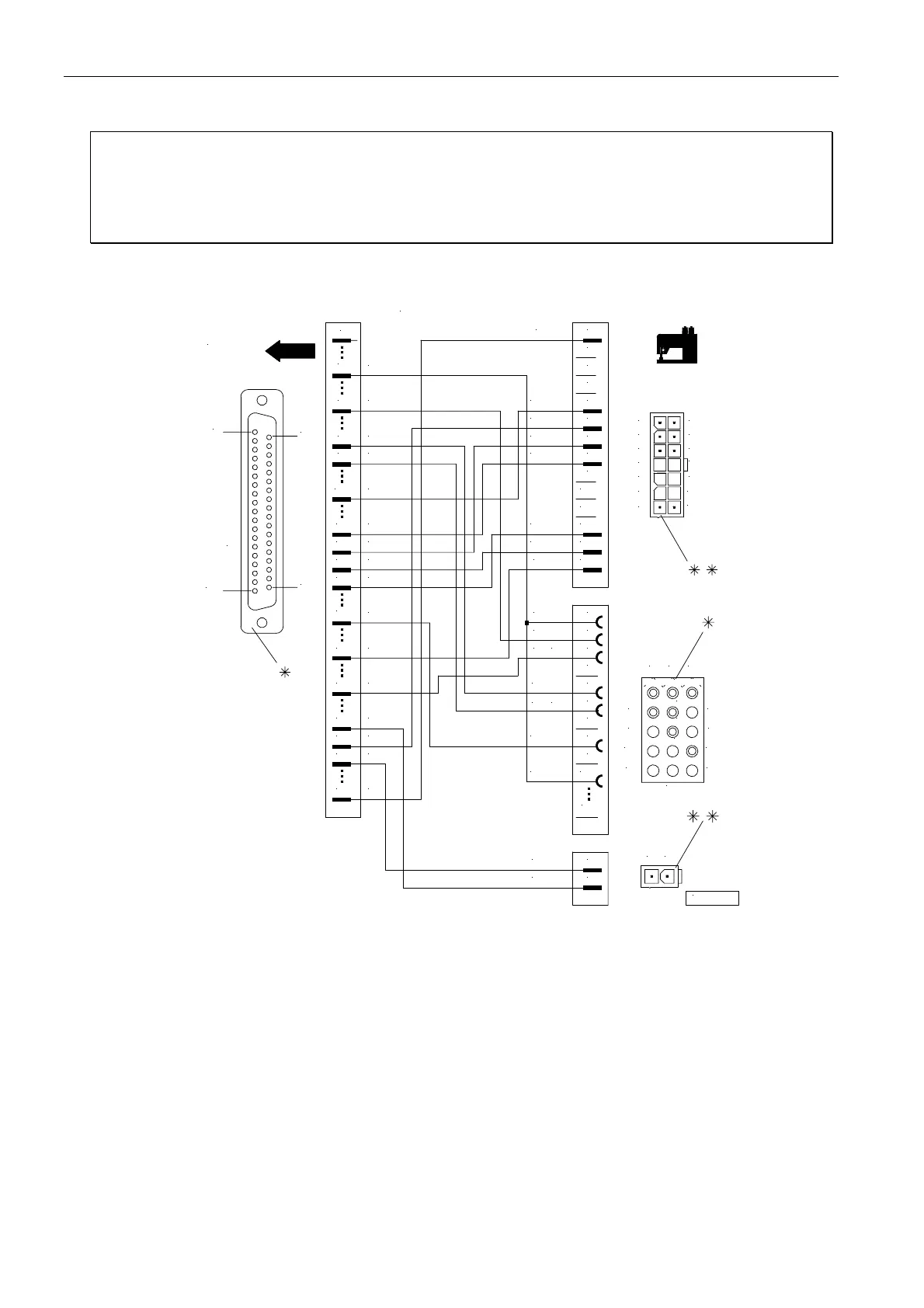

Adapter cord for JUKI model LU1510-7
Setting the functional sequence Thread trimming mode ! Set parameter 290 = 20
Setting the functions of the keys Input in1 ! Set parameter 240 = 13
(Automatic setting) Input in3 ! Set parameter 242 = 31
Input in4 ! Set parameter 243 = 32
Input in6 ! Set parameter 245 = 16
Input in7 ! Set parameter 246 = 13
in1 = Input high lift for walking foot with speed limitation n10 (operational mode not stored) for knee switch
in3 = Input speed limitation bit 0 (S1)
in4 = Input speed limitation bit 1 (S2)
in6 = Input intermediate backtack
in7 = Input high lift for walking foot with speed limitation n10 (operational mode not stored) for additional
pushbutton at the machine head
*) Rear view (soldering side) of 37-pin plug (ST2). Front view (component side) of the remaining plugs/sockets.
**) Front view (component side) of the Molex Minifit plugs.
37
34
35
33
30
10
15
+ 24V
FL
M1
+ 24V
VR
FL
M6
+ 24V
0V
S2
HP in
2
1
KL2437
1 2
6 4
9
12
15
8
9
7
8
7
10
13
14
11
6
5
5
SUB - D- 37
19
19
37
28
26
18
17
1
16
9
12
20
8
6
ST2
1
4
14
13
12
10
11
0V
M2
+ 24V
+ 24V
+ 24V
FSPL
+ 24V
0V
S1
HPout
+ 24V
in7
in6
in4
in3
+ 24V
0V
+ 24V
VR
ZVR
4
2
3
1
3 2 1
8
9
7
6
5
5 12
1
2
3
4
11
9
8
10
6
7
13
14
Nr. 1113200
0V
FA
4
2
3
1
