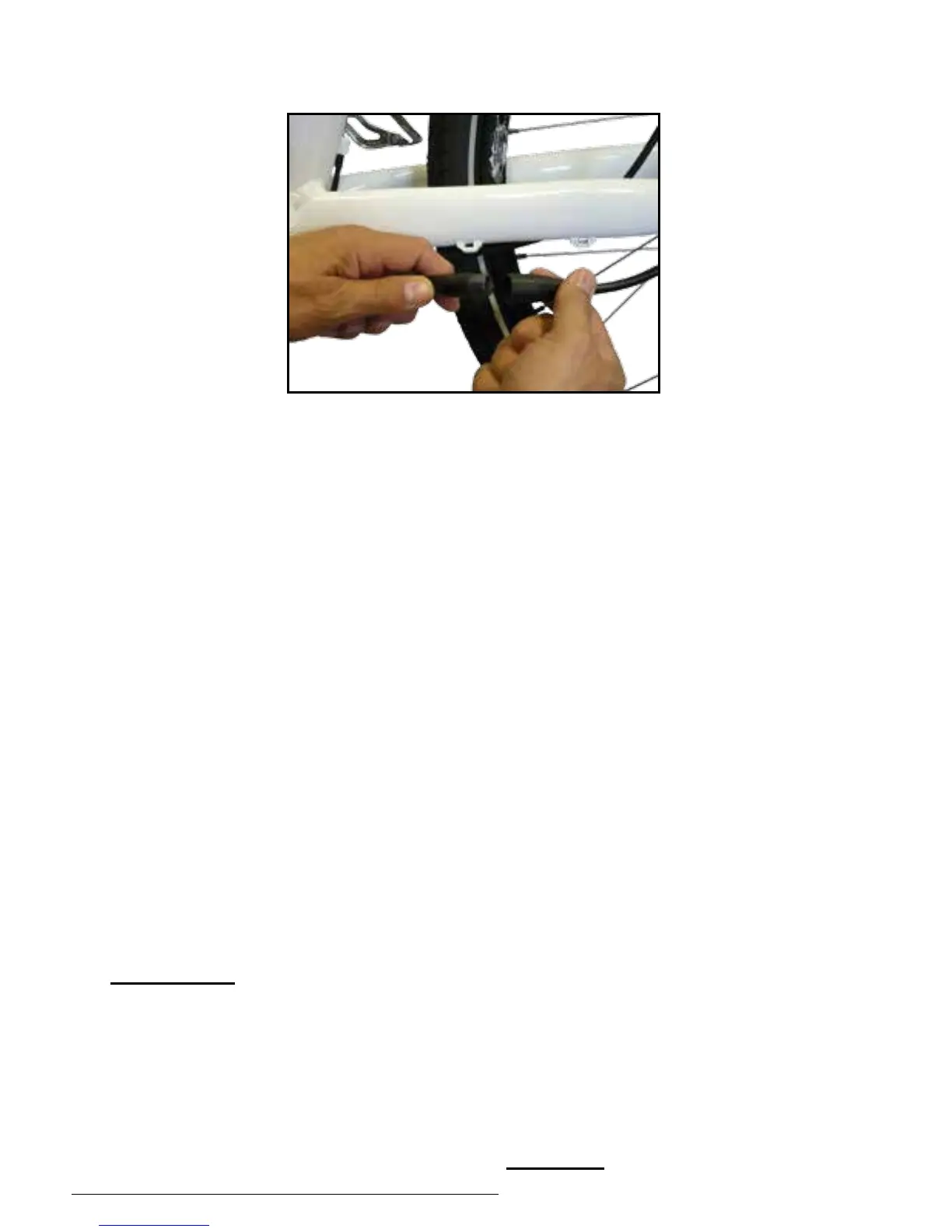

o Disconnect the motor power plug. (See photo.)
o Open the rear quick release paddles. See page 49
for more information.
o Remove the rear wheel by allowing it to slide
vertically from the dropout, taking care to pull the
derailleur to the rear of the bike to allow the axle
and freewheel to clear the derailleur.
o After repairing the at tire, replace the rear wheel
by reversing the removal instructions above, taking
care that the disk if properly inserted into the disk
brake caliper.
o After reconnecting the motor power plug, zip tie
the plug and associated cables to the ttings on
the bottom of the chain stay.
o Ensure that the wheel is properly centered in the
frame. Securely x the quick release mechanism.
See page 49.
WARNING: If you are unsure about the brake set-up and
adjustment procedure, please take your eFlow bicycle
to your selling dealer, or any qualied bicycle mechanic,
and ask for assistance in adjusting the brakes. Improperly
adjusted brakes may cause reduced braking performance,
leading to an accident that could result in serious injury or
death, and property damage. DO NOT ride your bicycle if
Currie Tech Technical and Customer Service: +1 800-377-4532
p. 48/52
