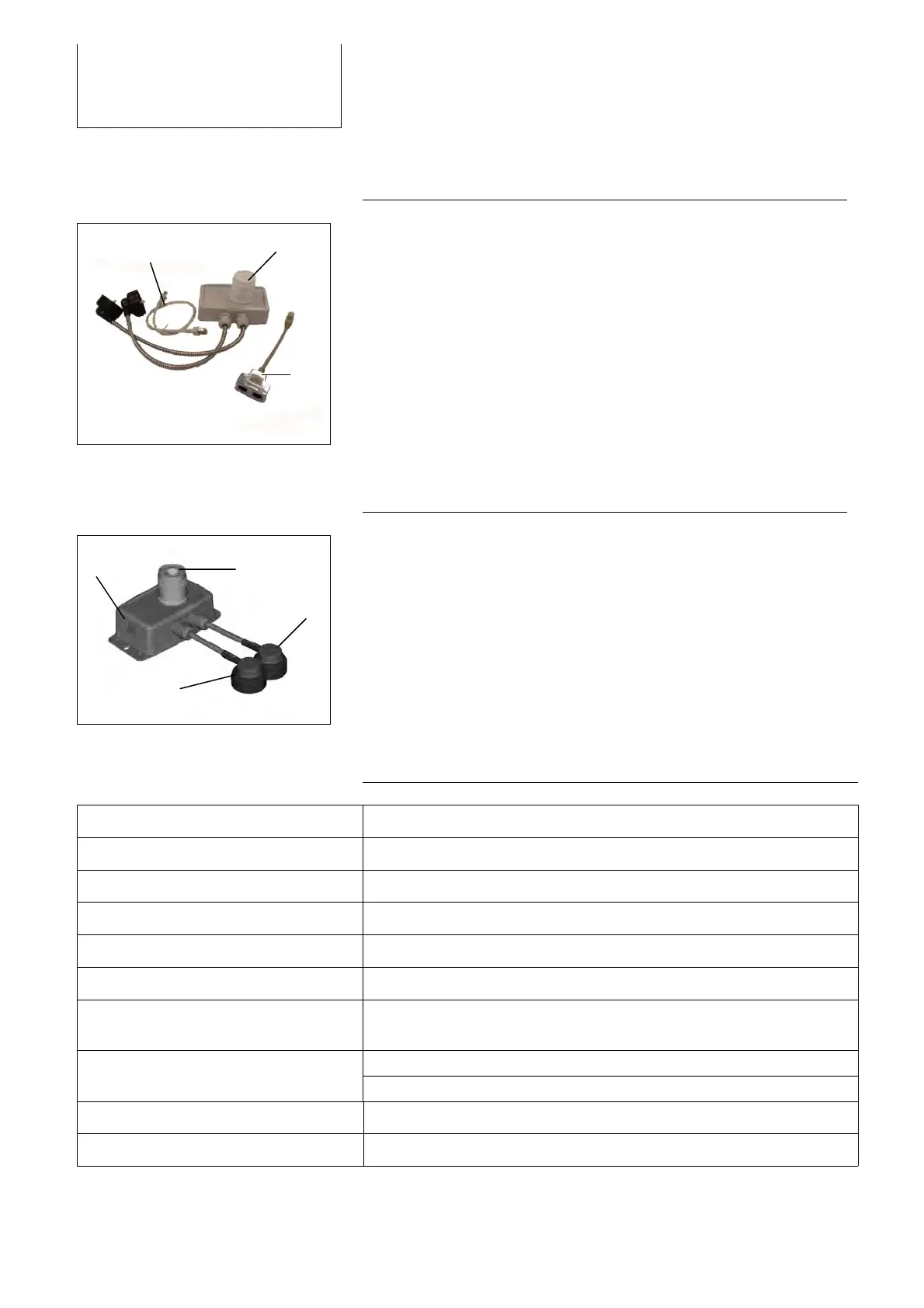

3.1 Standard Equipment
Standard Equipment:
1 DuoCartSwitch DCS1
2 Port-Doppler
3 Data line, Length 50.0 cm / 19.7 in, Cat5
4 User Manual
3.2 Overview
1 Data Interface (Connection for Port-Doppler)
2 Connector for EFOY Pro fuel cell
3 DuoCartSwitch connector #1
4 DuoCartSwitch connector #2
3.3 Specifications DuoCartSwitch
Dimensions (L x W x H) :
174.0 x 119.0 x 96.0 mm / 6.9 x 4.7 x 3.8 in
Weight
0.7 kg / 24.7 oz
Operating temperature:
-20 °C to +45 °C / -4 °F to +113 °F
Quiescent current draw
7.5 mA
Max. leakage rate
280 mg per hour
Compatible fuel cells
EFOY Pro Series
Firmware
Version 9.17 / 11.04 / 17.06 and higher (from production date
September 2009).
M5, M10
Compatible fuel cartridges
M28 (with M28 adapter)
Nominal Voltage
12 V / 24 V
Switch signal
GPO (General Purpose Output) at PIN1 of EFOY Pro
