EFT agriculture frame installation manual
© 2020 Hefei EFT all rights reserved
Speed governor of pump
Product specifications
Size: 47*34*24mm (excluding fixed ears)
Weight: 72g
Installation hole distance: 54-60mm
Power supply voltage: 15-60V
Output voltage: 12V
Maximum current: 6A
Maximum power: 72W
Travel range: 1120-1920μs
Medicine-off signal: there is water-high level No water-low level
How to use the medicine breaking detection function: The medicine breaking detection factory
is currently limited to 25W pumps. Connect the 3pin line of the medicine breaking signal to the
detection interface of the flight control liquid level gauge. The medicine breaking signal is
output as a high and low level signal, and water is a high level. , No water is low level, the air in
the water pump needs to be discharged before takeoff to avoid misjudgment after takeoff.

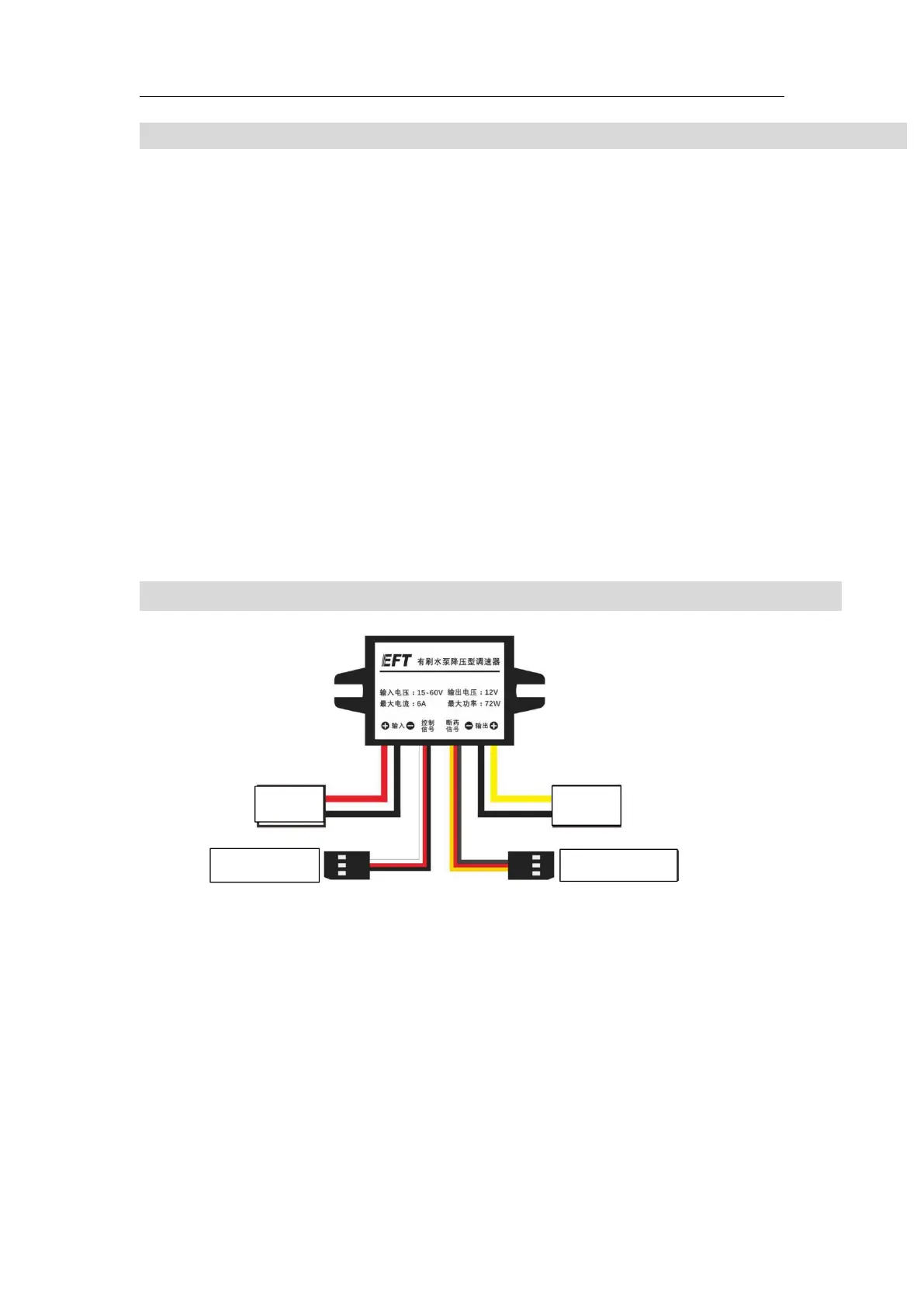

Wiring diagram
