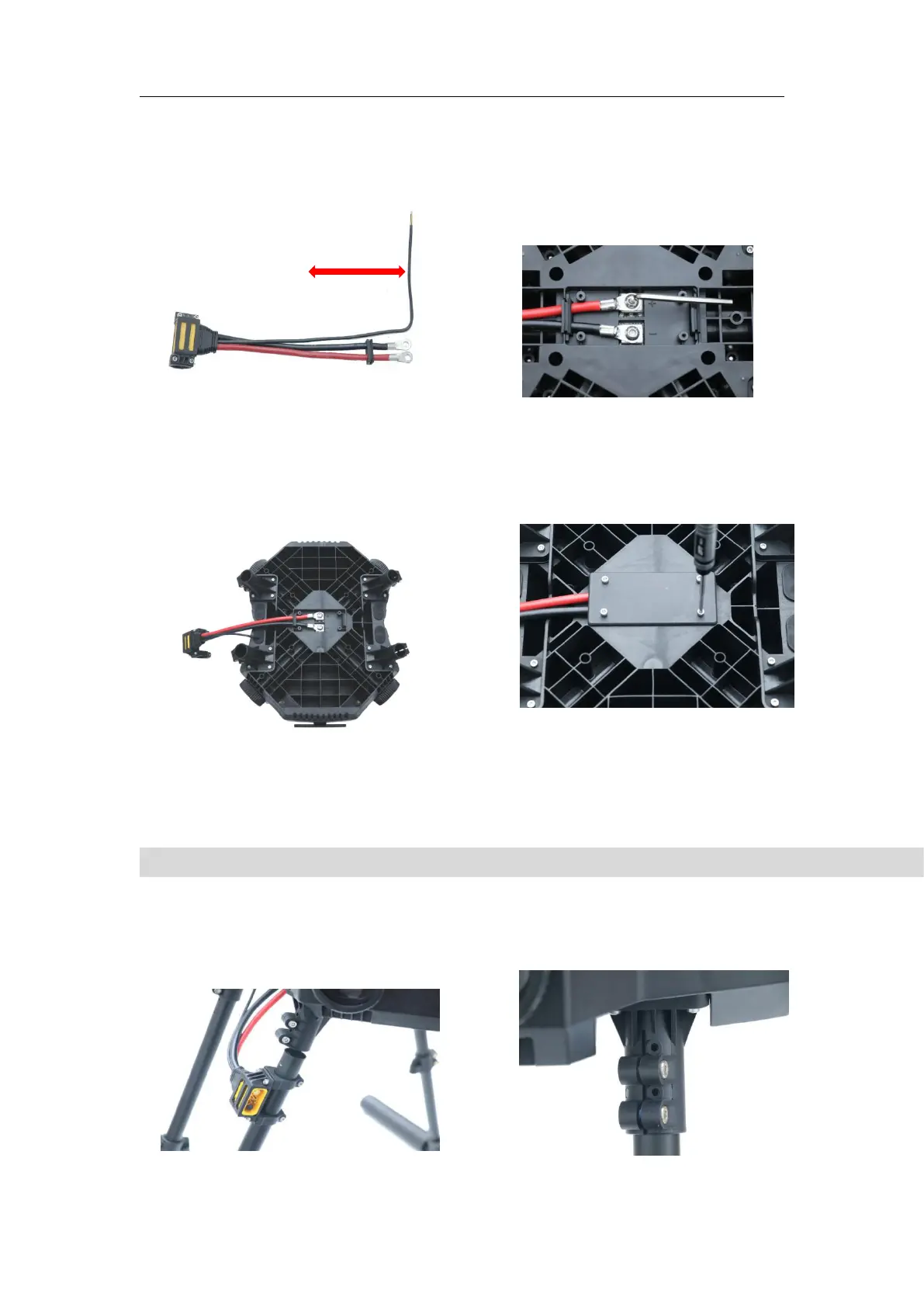

EFT E410P - Landing gear installation

EFT agriculture frame installation manual
© 2020 Hefei EFT all rights reserved
6
Landing gear installation
2.The positioning hole of the diagonal brace is
flush with the positioning hole of the tripod
fixing seat.
Pic 10
1. Put the AS150U fixed seat on the
landing gear, and then insert it into the
tripod fixed seat to reach the bottom.
Pic 11
Pic 1
11. Customers can choose the left and right
sides of the outlet.
Pic 2
9.Finished power cord.
This is the power
signal line, you can
cut it if you don’t
need it
Pic9
Pic12
12. Restore the M3*10 self-tapping screws of
the power distribution board cover.
10. Use M6*8 screws to fix the power cord on
the terminals of the power distribution board,
paying attention to distinguish the positive
and negative poles.
