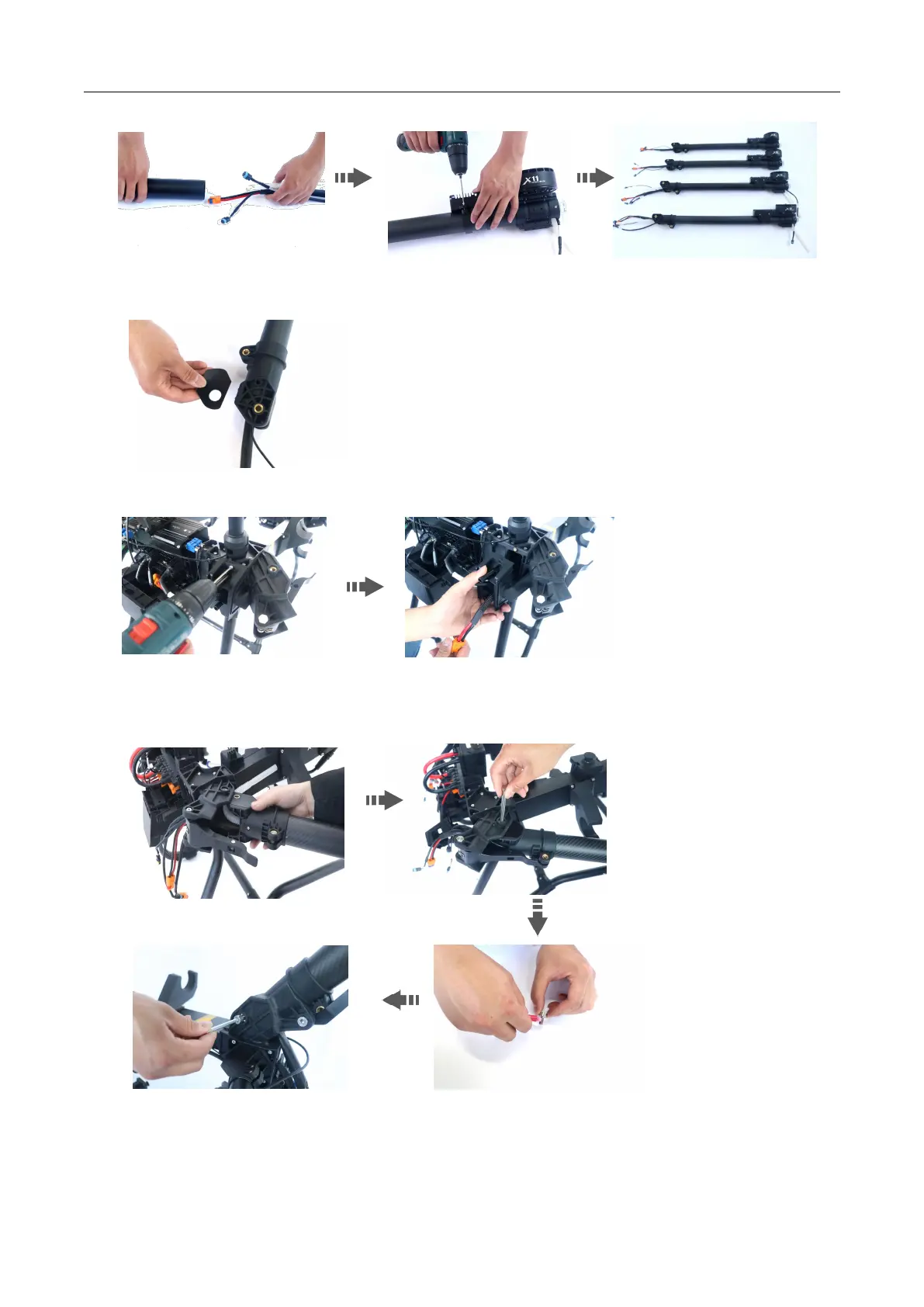

3. Install the spacer on the arm head swivel position .
4. Remove the wire buckle and the cable-passing seal.
5. Put the arm with the nozzle adapter cable, the water pipe into the rear frame folder, and the arm without the water pipe into t he
front frame folder, then use the φ8*M6*78 lock nut to penetrate from the upper part. The lower M6*12 pair lock screws need to be
glued
(the glue has been supplied as standard) ( t he cable faces forward and the water pipe faces backward).
6. Install the locking buckle of the arm, insert the long pin into the hole of the arm holder, insert the short pin into the hole of the
handle, and then insert the hexagonal stud into the l ong pin at the end of the arm.
