EFT Z30 - Step 2：Install Motor Set and Drone Arms

Z Series Assembly Manual
© 2023 EFT Electronic Technology Co. Ltd. All Rights Reserved.
6

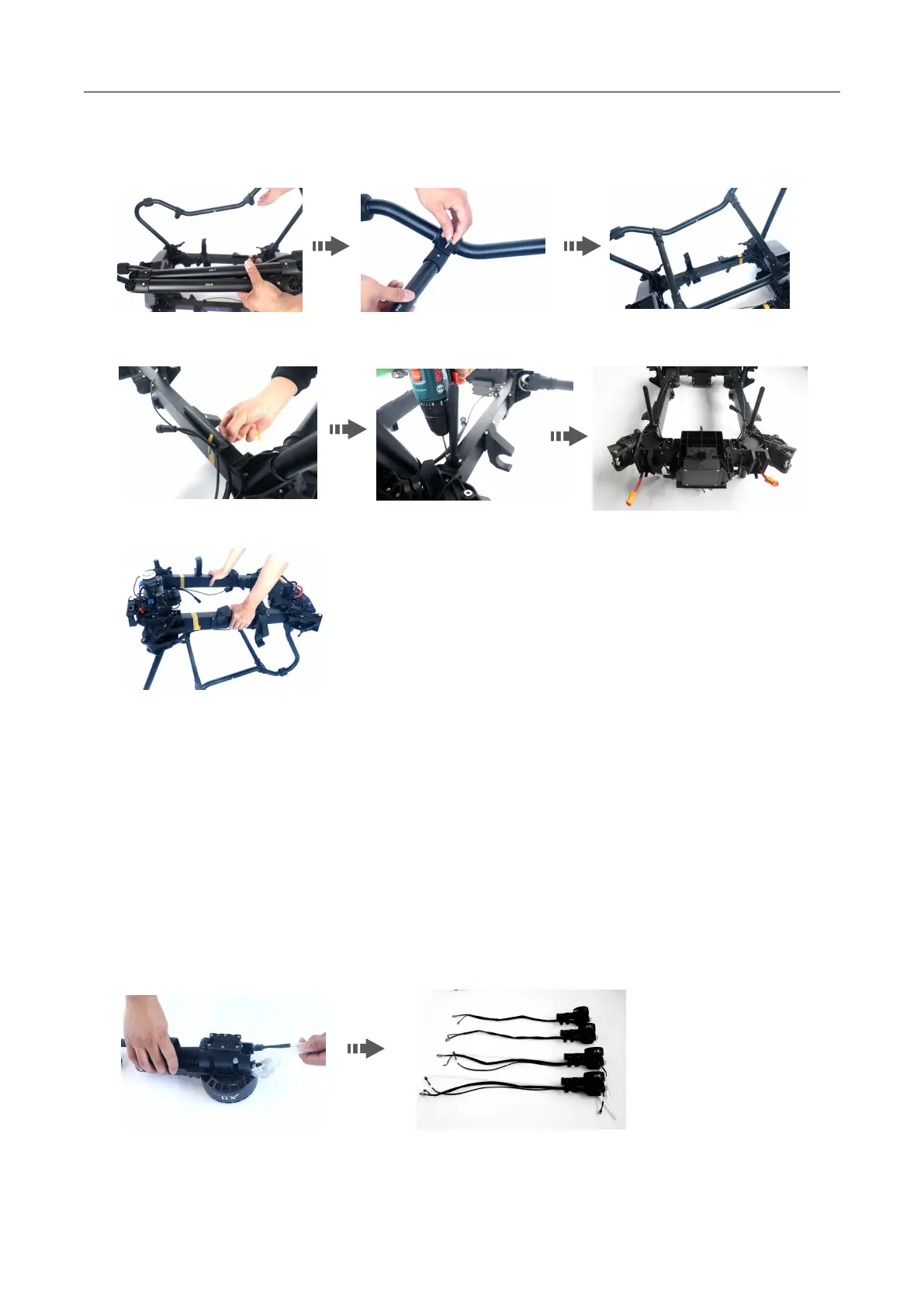

6. Insert t he front crossbar F (351mm) and the rear crossbar B (322mm) into t he tee fittings, and fasten them with M4*30 half-thread
screws.
7. Restore the receiver antenna, remove the tape, and fix the antenna with M4*10 cylindrical screws.
8. After the landing gear is in stalled, press the frame to level the drone, and t hen tighten t he mounting seat of the landing gear.
Step 2：Install motor set and drone arms
Tips
*Pay attention to each arm label and motor code, clockwi se from the head is M1-M4 in turn , install CCW at M1 and M 3 , and i nstall CW at M2
and M4.
*The M1 an d M2 arms with the motor cable, But t he M3 and M4 arms will through the water pipe and t he nozzle adapter cable fi rst, and then
threaded into the motor cables, and then lightly lock them to avoid falling off.
*It is recommended to install the propeller wh en test t he aircraft. Note that the CCW and CW motor are respectively adapted to the
corresponding paddles.
1. Take one of CW and one of CCW, and pass the nozzle adapter cable and water pipe through the motor head, and the other two
motors no need.
2. Insert the 4 motor sets and cables into the carbon tube arm, and fix them with the screws on t he motor base, do not tighten them
for adjusting later.
