EG4 LL User Manual

15

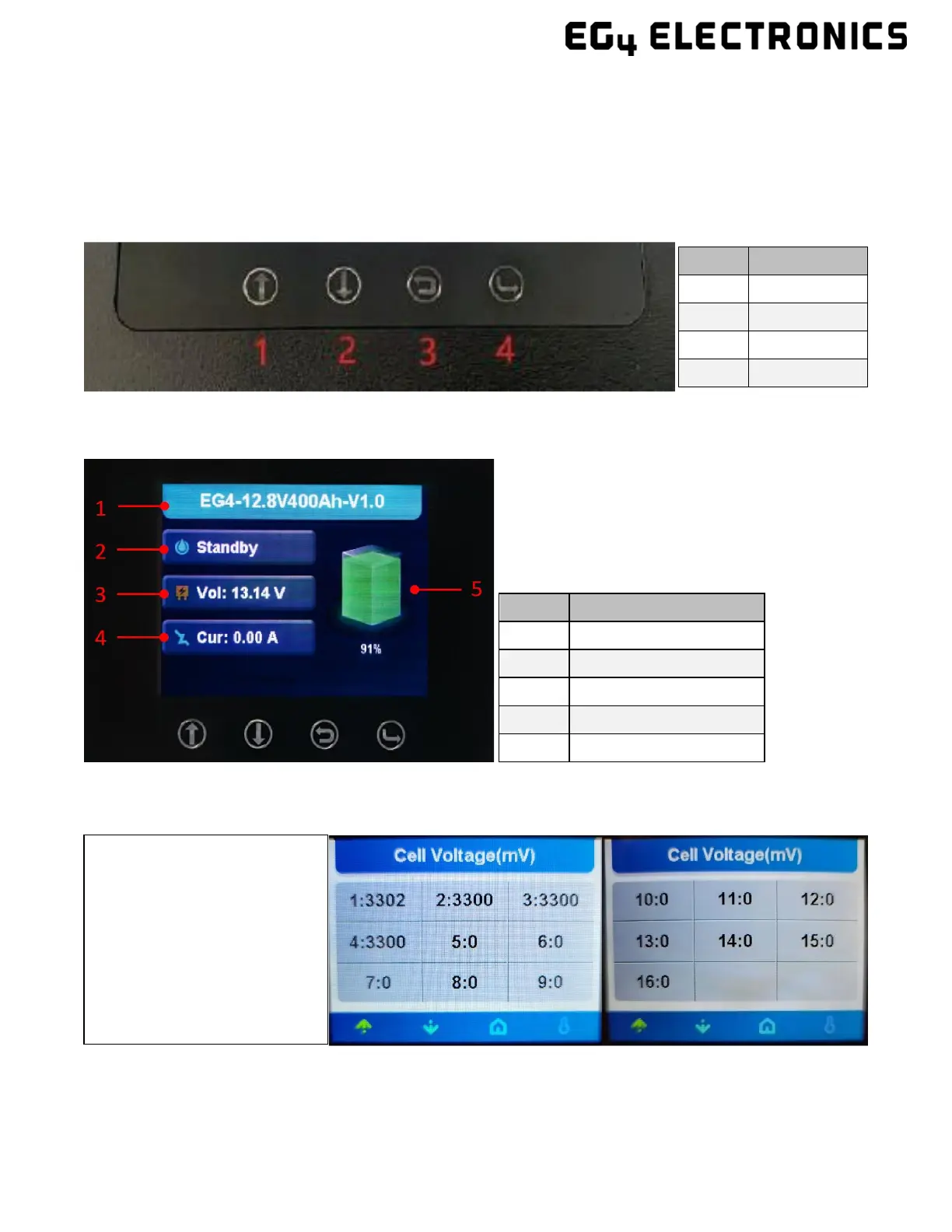

6.2 LCD SCREEN
Each module has a built-in HD LCD touch screen used to display important information about the cells
including voltage, current, temperature, SOC, and others.
6.2.1 BUTTON DESCRIPTION
There are 4 function buttons below the display with detailed descriptions as shown in the table below.
6.2.2 WAKING UP THE LCD SCREEN
Press any key to wake up the screen when the
power is on, and the information will be shown
on the display.
Main Page Information
6.2.3 CELL INFORMATION
No.
Description
1
Up
2
Down
3
Return
4
Enter
No.
Module Description
1
Name
2
Status
3
Voltage
4
Current
5
SOC
Check individual cell voltage
by pressing the “Enter”
button on the main page
(shown in mV). There are 2
pages. Pressing “Up” and
“Down” changes the page.
Note: 12V modules only
display 4 cells due to 4
packs being in parallel (4s4p
config.).
Page 1
Page 2

EG4 LL Specifications

General

Nominal Voltage	51.2V
Nominal Capacity	100Ah
Energy	5.12 kWh
Max. Continuous Discharging Current	100A
Warranty	10 years
Cycle Life	6000 cycles @ 80% DoD
Communication	CAN, RS485
Scalability	Up to 16 in parallel
Operating Temperature	-4°F to 131°F (-20°C to 55°C)
Battery Type	LiFePO4
Protection	High Temperature, Low Temperature, Short Circuit
C Rating	1C
