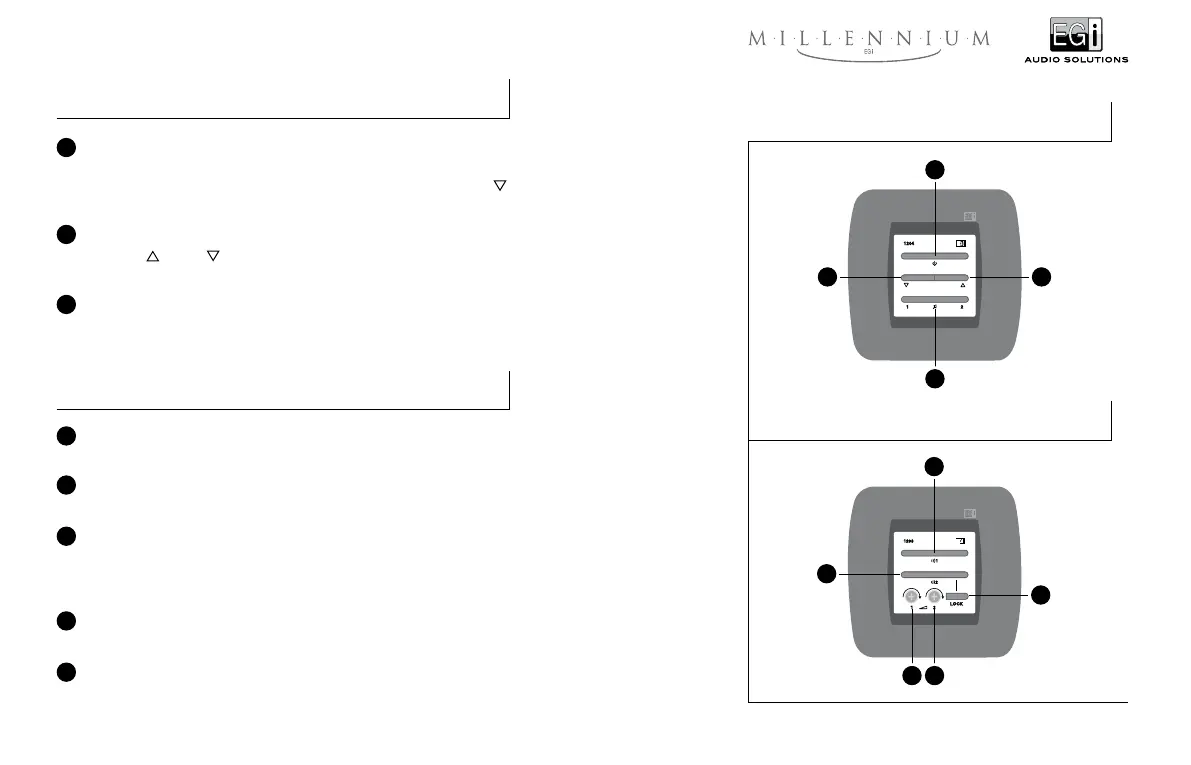

2-Channel, 5 W Control unit
Intercom unit
1 Push button ON/OFF
On press turns on and the next press turns off the sound system in that zone.
NOTE: The control unit can be turned on at a moderate volume level by pressing
while the unit is still OFF. It has activation
through PIN in for all the MILLENNIUM series amplifiers, through a DC continuous voltage in the output strip of “+” speakers.
2 Volume regulator
To turn up
or down the music volume level of the control unit.
To adjust the volume of the messages or calls, change it only during the announcement.
3 Channel selector
This push-button enables the user to select the sound channel that will be played in a zone. Each push will change between
the two available channels, and the selection will be showed by the light of a red lamp.
1 Push button ON/OFF
By pressing this push button a call will be made to zone 1. It is possible to talk to zone 1 as long as you keep on pressing the button.
2 Pulsador de selección 2
By pressing this push button a call will be made to zone 2. It is possible to talk to zone 2 as long as you keep on pressing the button.
3 Pulsador LOCK
By pressing this push button the zone 2 will stay permanently selected: you can talk to zone 2 even if the push button 2 is
released. A red lamp informs you that the communication with zone 2 is permanently open. If this button is pressed again the
lock function is disabled.
4 Volume regulator zone 1
By turning this screw clockwise we will raise the volume level of the message broadcast in zone 1.
5 Volume regulator zone 2
By turning this screw clockwise we will raise the volume level of the message broadcast in zone 2.
NOTE: This sound unit has an activation PIN for MILLENNIUM series amplifiers, through a DC voltage at the
speaker strip output “OUT1” and “OUT2”.
1
1
3
54
2
3
2
2
