13GRASS BAGGER KIT — ABK5200

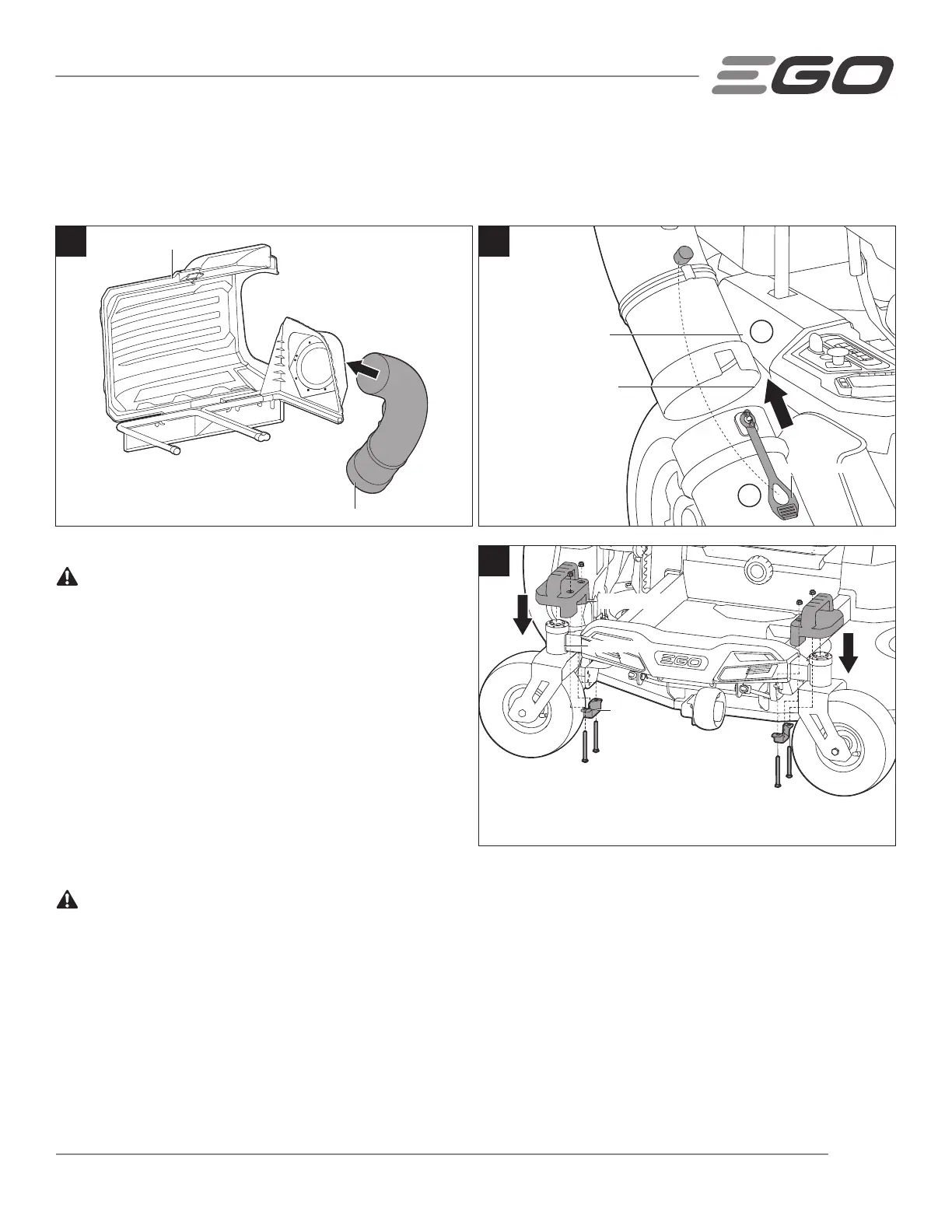

8. Insert the top of the upper chute tube assembly into the top cover assembly (Fig. 15).
9. With the bulge aligned with the notch, slide the upper chute tube assembly into the lower chute tube assembly
(Fig. 16). Stretch the rubber buckle until it is hooked onto the upper chute tube.
INSTALL THE COUNTERWEIGHTS
WARNING:
The counterweights are required when
operating the Zero Turn Mower equipped with the grass
bagger. Failure to install the counterweights may result in
serious injury or death.
1. Turn the two front wheels of the mower so that
they are perpendicular to the body and are directed
outward.
2. Insert the left mounting bracket under the left wheel
arm and place the left counterweight on the front of
the mower as shown in Fig. 17. Repeat this step to
install the right counterweight.
3. Insert four carriage bolts into both counterweights and
finger-tighten the bolts and nuts. Then securely tighten
all four carriage bolts on both sides using a 1/2’’ (13mm) socket wrench (not included).
WARNING: Use of this product with impro
perly secured bolts could result in serious personal injury.
17
Mounting
Bracket
Counterweight
Wheel Arm
15
Top Cover Assembly
Upper Chute Tube Assembly
1
2
16
Bulge
Rubber Buckle
Notch
To Next Page
