GRASS BAGGER KIT — ABK520014
OPERATION
◾
When both grass bags are full, place the Zero Turn Mower
on a firm and level surface and set the parking brake. Stop
the motors and remove the safety key to prevent unintended
starting.

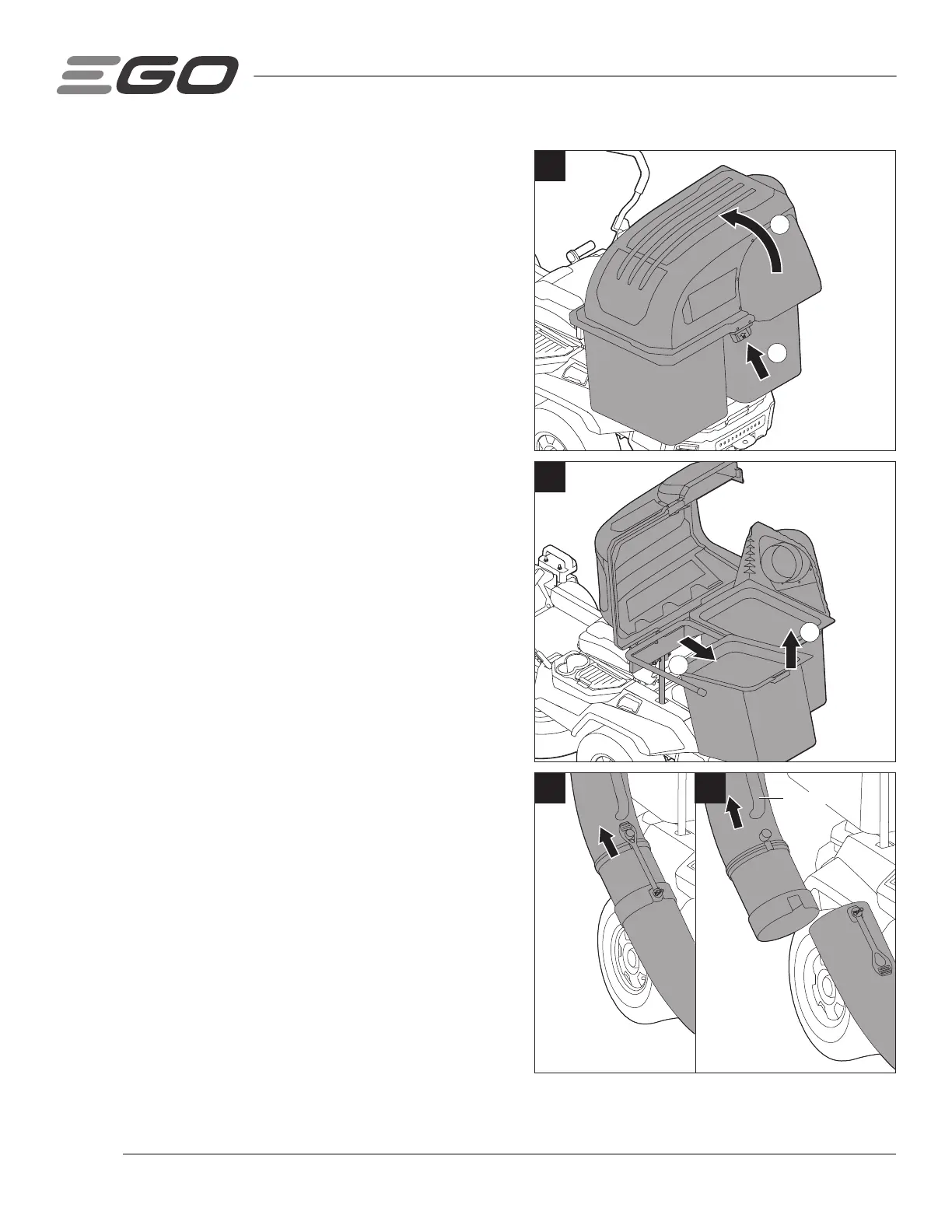

1. Open the cover of the grass bagger by pushing the cover
handle in first and then lifting the cover handle (Fig. 18).
2. Remove both grass bags by lifting the front edge up first, and
then sliding the back edge forward and up until it is clear of
the frame (Fig. 19).
3. Empty the grass clippings at a proper disposal site.
4. Replace both grass bags assemblies and close the cover.
Restart your mower to resume mowing operation.
◾
When the grass clippings are blocked in the chute tube, place
the Zero Turn Mower on a firm and level surface and set the
parking brake. Stop the motors and remove the safety key to
prevent unintended starting.
1. Stretch the rubber buckle to unlock the upper and lower chute
tube (Fig. 20).
2. Hold the tube handle to slide the upper chute tube out. Grab
the tube handle to pour out the clogged grass clippings at a
proper disposal site (Fig. 21).
3. Replace the upper chute tube assembly as shown in the
Step 8 of the section “GRASS BAGGER ASSEMBLY AND
INSTALLATION”. Restart your mower to resume cutting your
grass.
20
Tube Handle
21
2
1
18
1
2
19
To Next Page
