56V LITHIUM-ION CORDLESS CHAIN SAW — CS1600/CS1600-FC 41
How To Sharpen The Cutters
Be careful to le all cutters (Fig. 29) to the
specied angles and to the same length,
as fast cutting can be obtained only when
all cutters are uniform.
1. Remove the battery pack. Wear
gloves for protection.
2. Properly tension the chain prior
to sharpening. Refer to the
section: “ADJUSTING THE CHAIN
TENSION” earlier in this manual.
3. Use a 0.177" (4.5 mm) diameter
round le and holder (available
separately). Do all of your ling at
the middle position of the guide bar.
4. Keep the le level with the top plate of
the tooth. Do not let the le dip or rock.
5. Keep a correct sharpening angle of
30° between the le and the saw
chain; see Fig. 30 & 31. Always use
a le holder (available separately)
when sharpening saw chains by
hand. File holders have markings for
the sharpening angle.
6. Using light but rm pressure, stroke
towards the front corner of the
tooth. Lift the le away from the
steel on each return stroke.

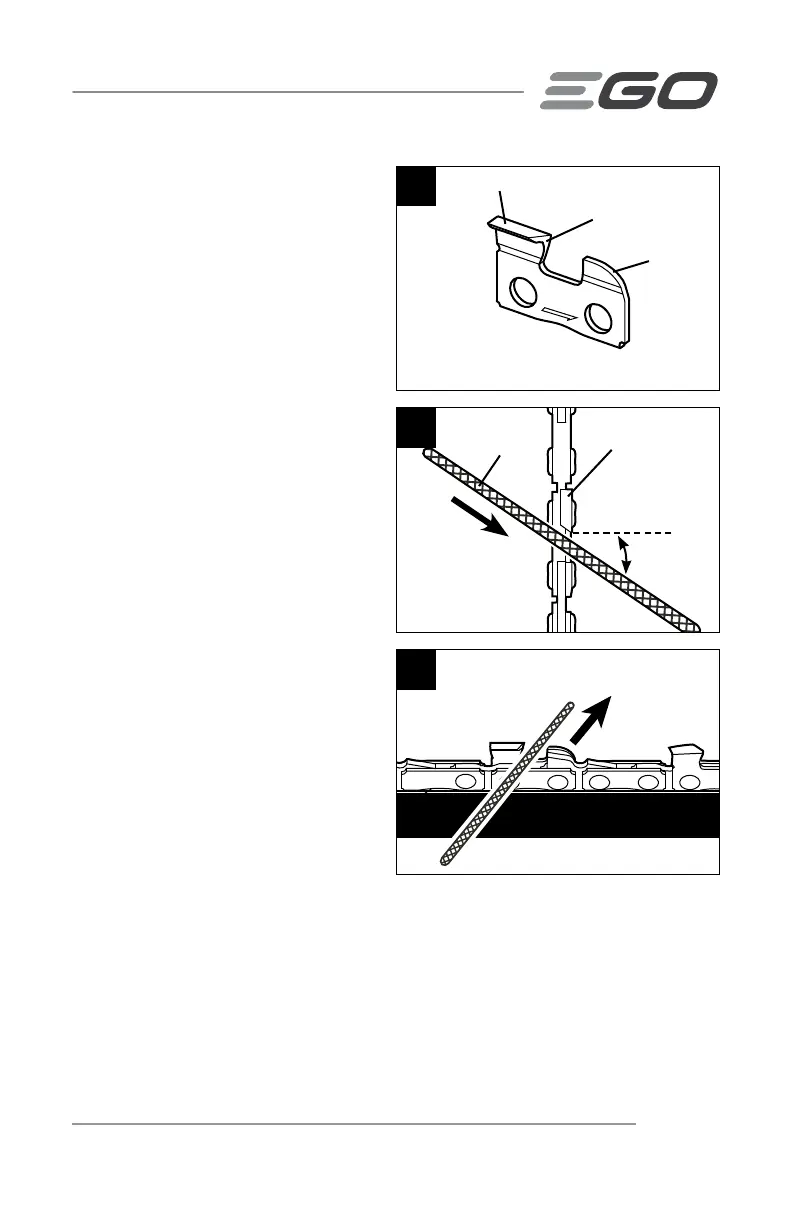

31
29
Top Plate
Side Plate
Depth
Gauge
30
0.177" (4.5 mm)
Round File
Filing Direction
Cutter tooth
Sharpening
Angle: 30°
