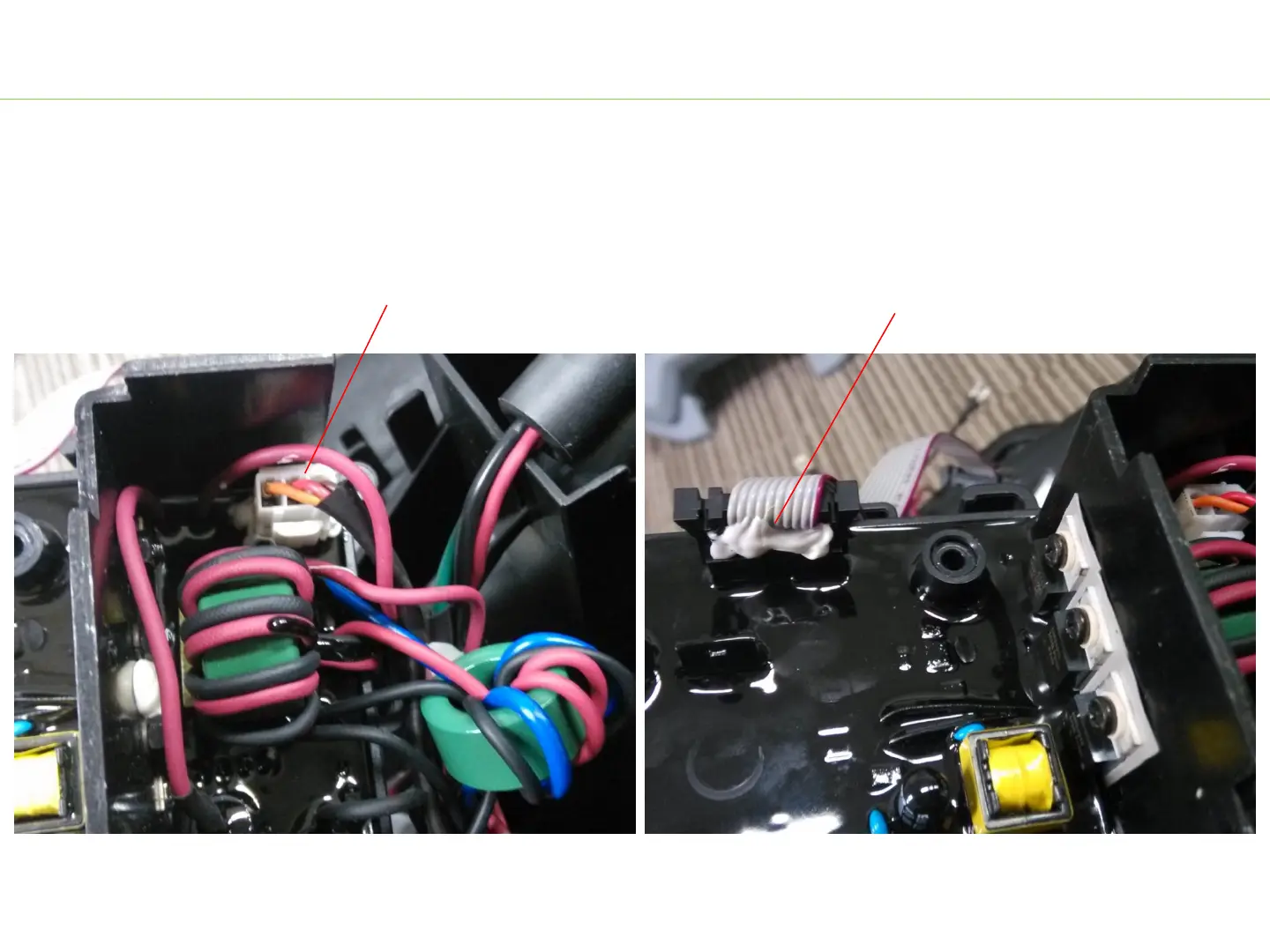

14. Mount the 3-pin plug and 10-pin plug on the terminals of the new PCB
15. Apply some silicon glue around the plug.
PCB Assembly Replacement
3-Pin plug 10-Pin plug
68
