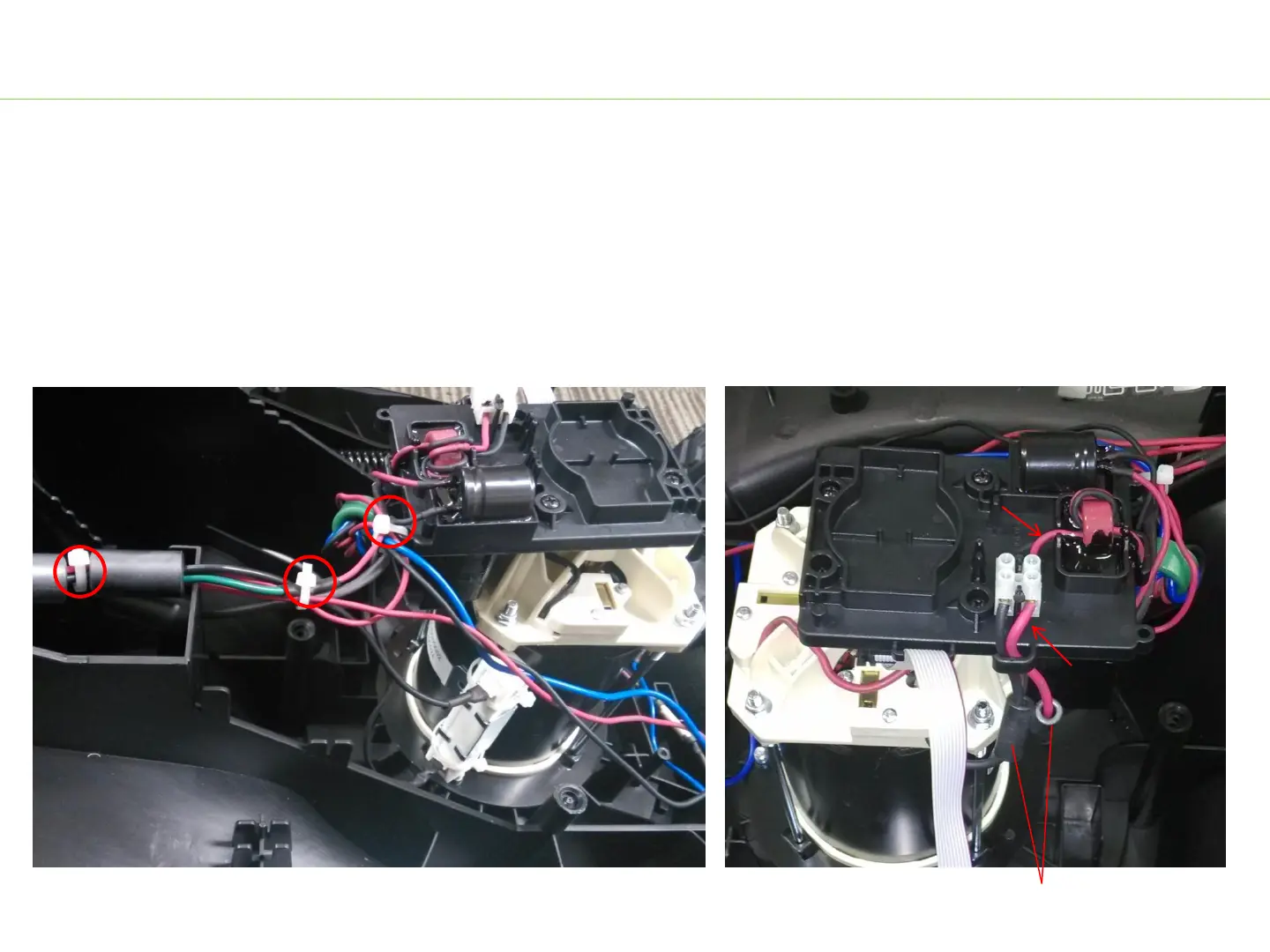

16. Mount the PCB onto the motor and lock it with four screws, fix the cables with three zip ties,
cut the excess.
17. Pass the two motor cables through the magnet rings and fix them in the terminal (red cable
to red cable, black cable to black cable); lock the cables by tightening the screws; align the
motor cables to the wiring groove.
PCB Assembly Replacement
69
Magnet Ring
Red
Red
