56-VOLT LITHIUM-ION CORDLESS LAWN MOWER — LM2140SP/LM2140SP-FC 23
ATTACHING/REMOVING THE GRASS BAG
WARNING: Do not at any time make any adjustment to the lawn mower without
first stopping the motor, removing the battery pack and waiting for the blade to stop
rotating.
NOTICE: Remove the mulching insert or side discharge chute before attaching the
grass bag on the mower;
1. Remove the battery.
2. Adjust the handle to the Grass Bag Attachment/Removal Position (please see
ADJUSTING THE FOLDABLE HANDLE).
3. Lift the rear-discharge door.

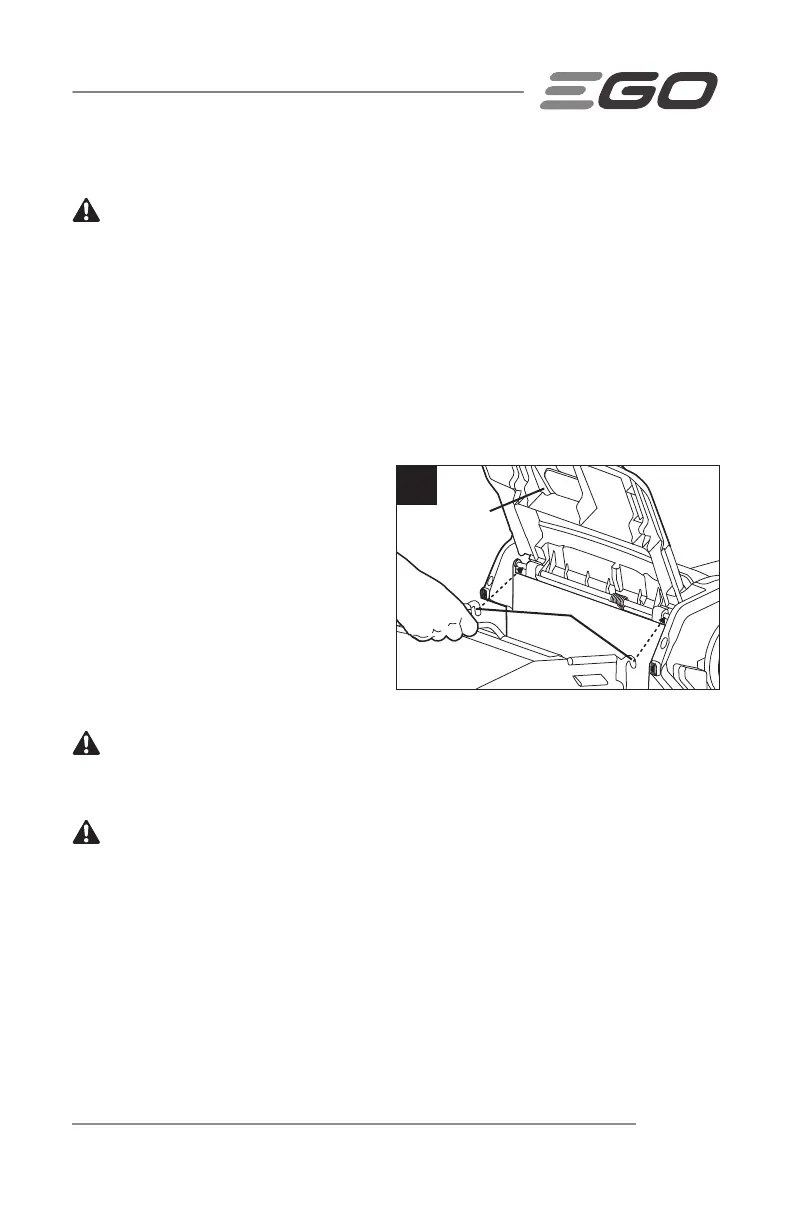

4. Hook the grass bag assembly on
the pivot rod (Fig. 9). Release the
discharge door so that it rests on
the grass bag.
5. To remove the grass bag, lift the
rear-discharge door on the mower.
Lift the grass bag up, off of the pivot
rod.
6. Release the discharge door.
WARNING: When using the grass bag, never operate the mower unless the
hooks on the grass bag are firmly seated on the pivot rod and the rear-discharge door
rests firmly against the top of the grass bag.
WARNING: Under normal usage, bag material is subject to wear. To reduce the
risk of injury, frequently inspect the bag assembly and replace if there are any signs of
wear or deterioration. Use only grass bags manufactured for this mower.
9
Rear Discharge
Door
Hook
