56-VOLT LITHIUM-ION ELECTRIC LAWN TRACTOR — TR4200/TR4200-FC56

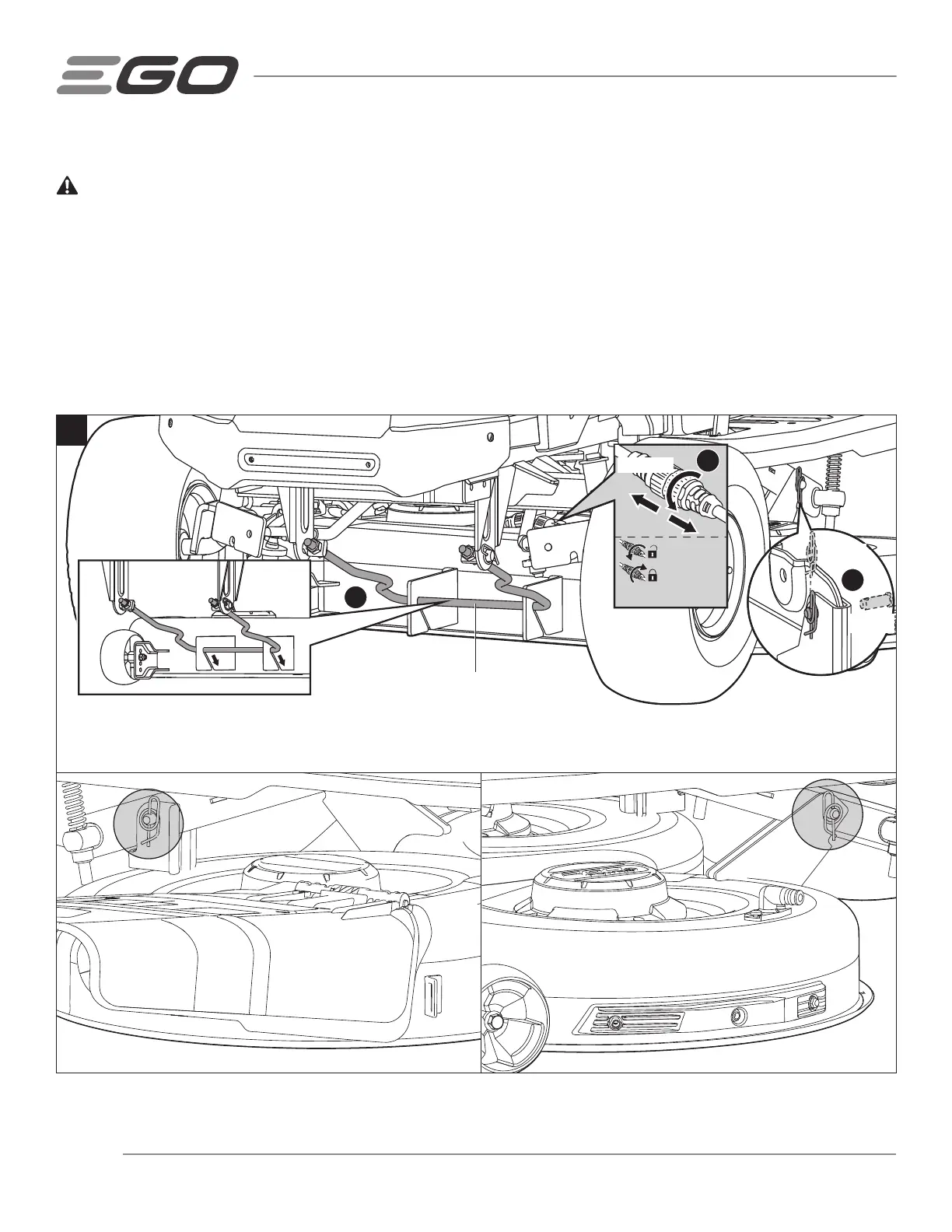

REMOVING THE DECK (Fig. 27)
WARNING: Make sure that the tractor is properly secured and the parking brake is engaged before proceeding.
Follow below steps to remove the deck from the product first and then perform maintenance.
1. Turn off the tractor, engage the parking brake, and remove the batteries.
2. Adjust the deck-height-adjustment lever to the lowest cutting height position.
3. Disconnect both blade motor cables.
4. Place a rug or a mat (similar in size to that of the deck) under the deck to prevent the damage to the deck.
5. Remove the cotter pins and push the shaft pins out. Save both sets for deck re-assembly.
6. Push the deck backward (towards the rear wheels) and rotate the suspension linkage clockwise to release it from
the deck hooks (Fig. 27a).
3
2
1
2.4-2.6Nm
Right side
Left side
27a
Motor Cable
(Wrench Required)
Cotter Pin
Shaft Pin
Suspension Linkage
To Next Page
