5756-VOLT LITHIUM-ION ELECTRIC LAWN TRACTOR — TR4200/TR4200-FC
7. Pull the rug/mat (with the deck on it) sideways to remove them
from under the tractor (Fig. 27b).
8. Clean the deck or replace the blade(s) as directed in
“REPLACING THE CUTTING BLADES” in this manual.
9. When the cleaning or blade replacement is complete,
reassemble the deck onto the tractor in the reverse order.
NOTICE: Reconnect the motor cables, ensuring that the left motor
cable is connected to the left motor while the right motor cable to
the right motor. There are “left” or “right” indicated on the cables.
NOTICE: Make sure both motor cables are connected to the motor
with proper torque. The recommended torque is 1.8-1.9 ft-lb
(2.4-2.6 Nm).
REPLACING THE CUTTING BLADES
WARNING: Always protect your hands by wearing heavy gloves or wrapping the cutting edges with rags or other
materials when performing any maintenance on the blade(s). Always remove the safety key and battery packs when
servicing or transporting the tractor.
Required tools:
◾
Torque wrench with 9/16 in (14 mm) socket
◾
Screwdriver or metal rod 5/16 in (8 mm) or a little less in diameter
◾
Screwdriver or metal rod 1/4 in (6.35 mm) or a little less in diameter
Tools that make life easier (not supplied): Impact wrench with 9/16 in (14 mm) socket make removing the blade bolts
much easier.

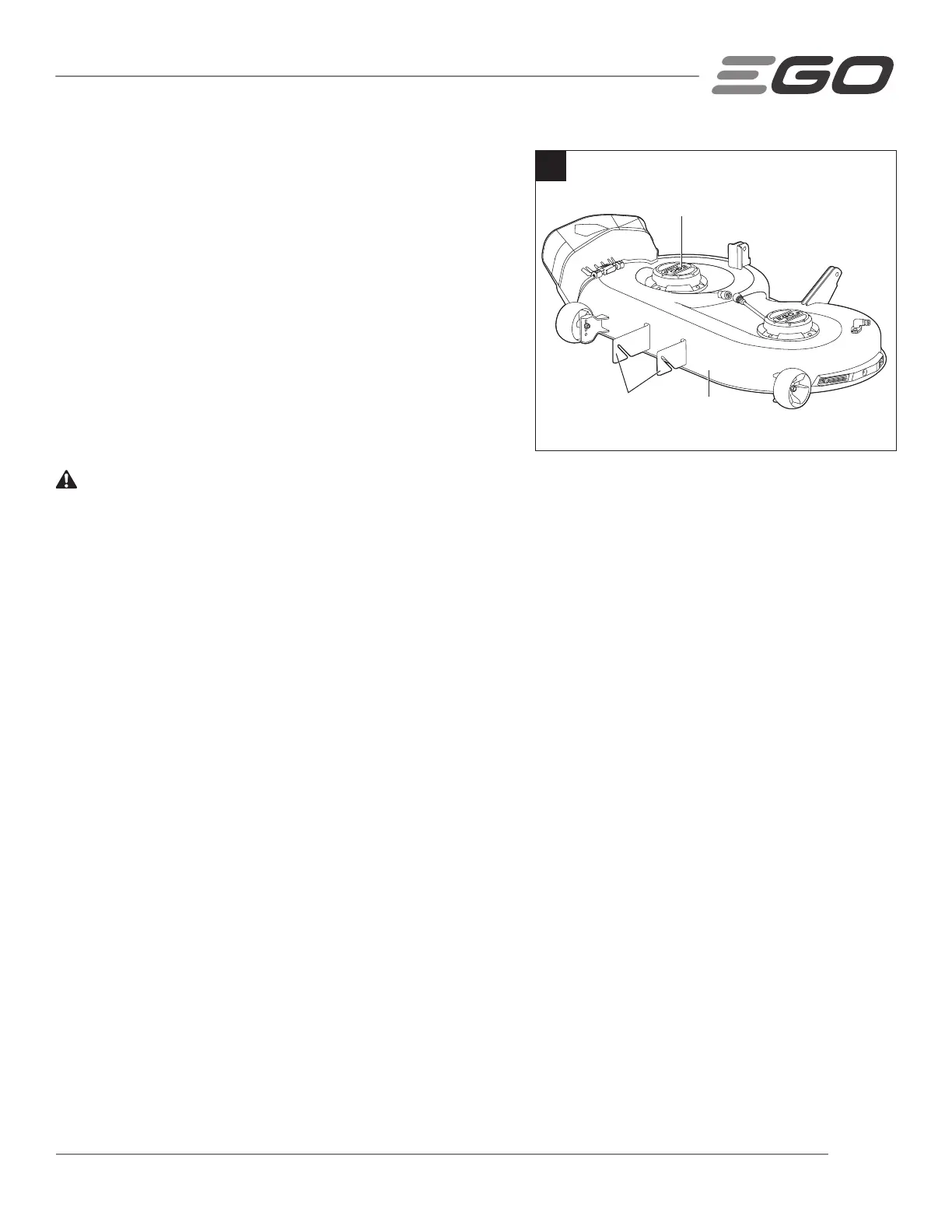

27b
Deck
Deck Hook
Blade Motor
