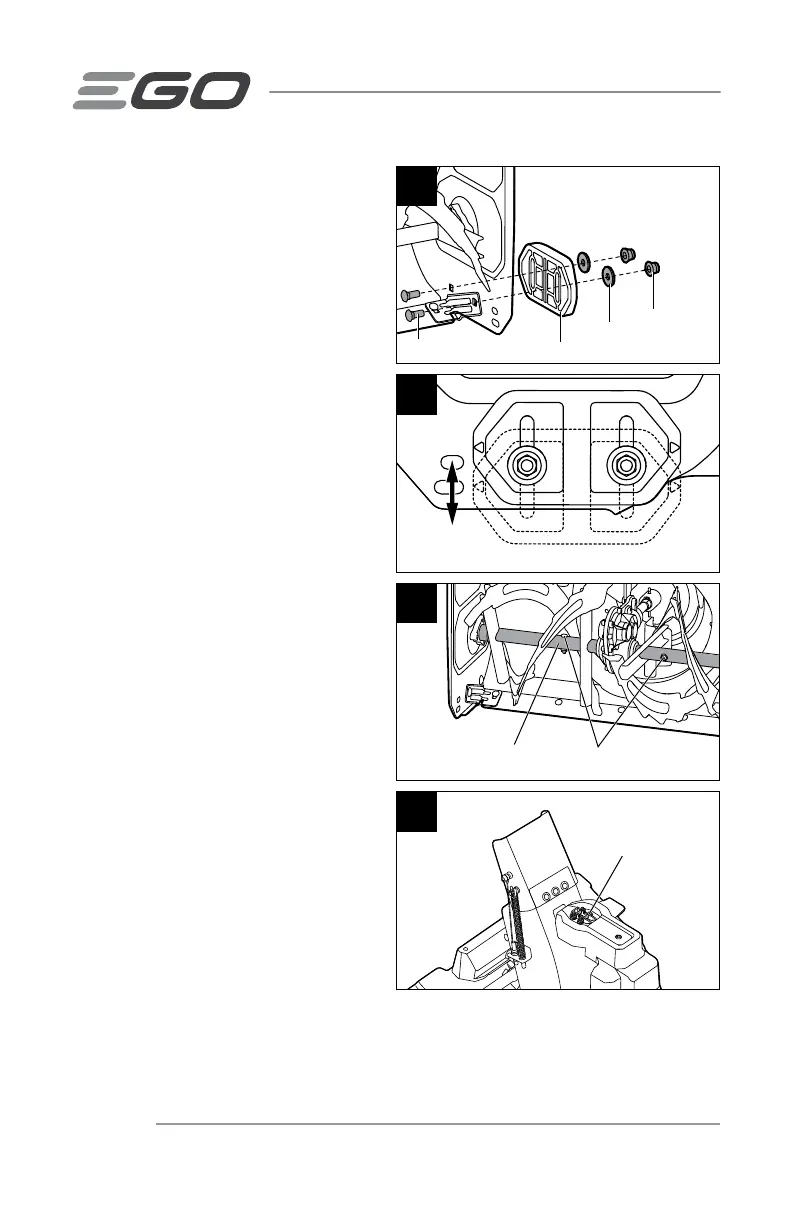

56V LITHIUM-ION CORDLESS SNOW BLOWER — SNT2400/SNT2400-FC30
REPLACING AND ADJUSTING THE
SKID SHOES
1. Remove the batteries.
2. Loosen and remove the nuts,
gaskets, and the skid shoe from the
screws (Fig.23).
3. Replace the skid shoe with a new
one, if necessary.
4. The height of the skid shoes can
be adjusted according to the actual
snow conditions without removing
the nuts. Just loosen the nuts, adjust
the skid-shoe position, and then
retighten (Fig.24).
REPLACING THE SHEAR PIN
The shear pins are located in the auger
shaft. They aids in absorbing the instant-
stall torque when the auger strikes
obstacles during working and protect the
gearbox and motor from damage.
To replace the shear pins, remove the
batteries, remove the broken shear pin
from the auger shaft and replace it with
new.
NOTICE: Two additional shear pins are
stored onto the snow-discharge chute
assembly, replace with the new one if the
original one is broken (Fig.26).
24
23
Screw Skid Shoe
Gasket
Nut
26
Shear Pin
25
Shear Pin
Auger Shaft
To Next Page
