56-VOLT LITHIUM-ION POWER HEAD — PH1420/PH1420-FC18

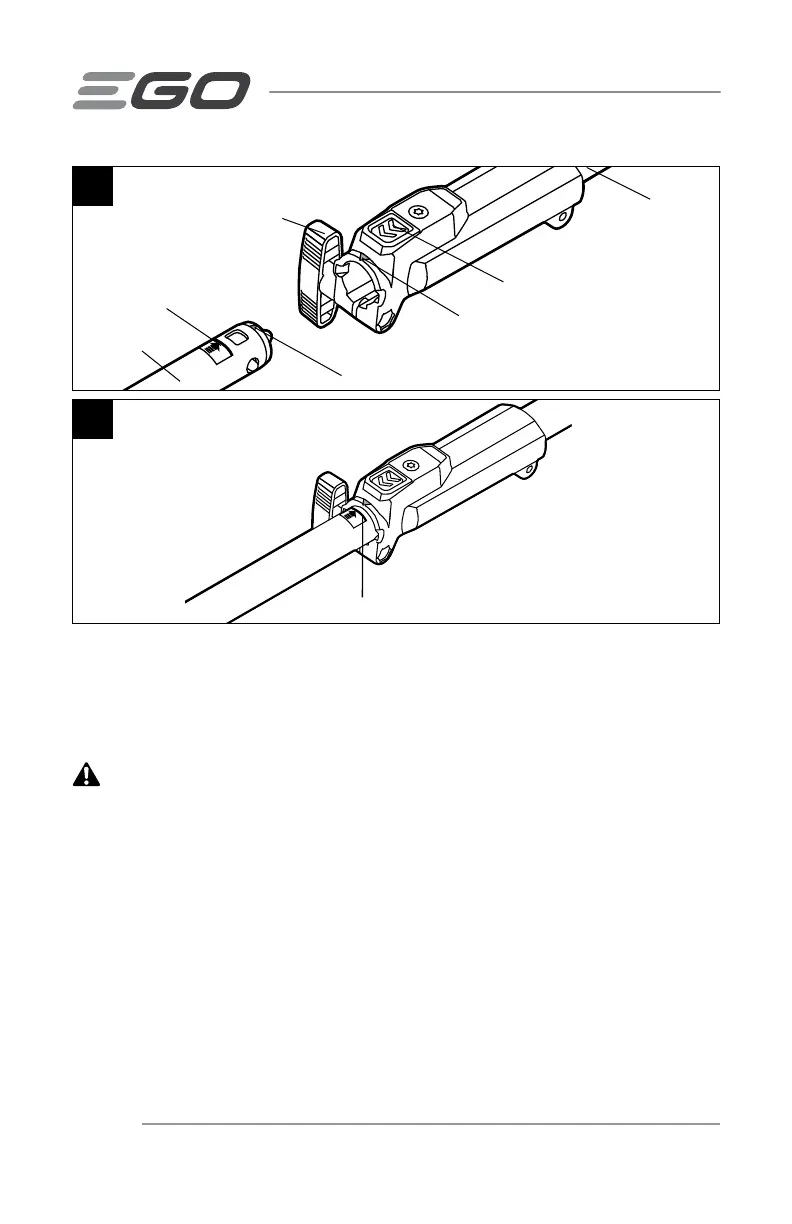

2a
Arrow on the Coupler
Arrow on the Attachment Shaft
Attachment Shaft
Shaft-release Button
Power-head Shaft
Wing Knob
2b
Red Line
Red Line
4. Pull the shaft of the attachment to verify that it is securely locked into the coupler.
If not, rotate the attachment shaft from side to side in the coupler until it snaps
into place.
5. Tighten the wing knob securely.
WARNING:
Be certain that the wing knob is fully tightened before operating
equipment; check it periodically for tightness during use to avoid serious personal
injury.
REMOVING THE ATTACHMENT FROM THE POWER HEAD
1. Stop the motor and remove the battery pack.
2. Loosen the wing knob.
3. Press the shaft-release button and, with the button depressed, pull or twist the
attachment shaft out of the coupler.
To Next Page
