56-VOLT LITHIUM-ION POWER HEAD — PH1420/PH1420-FC20

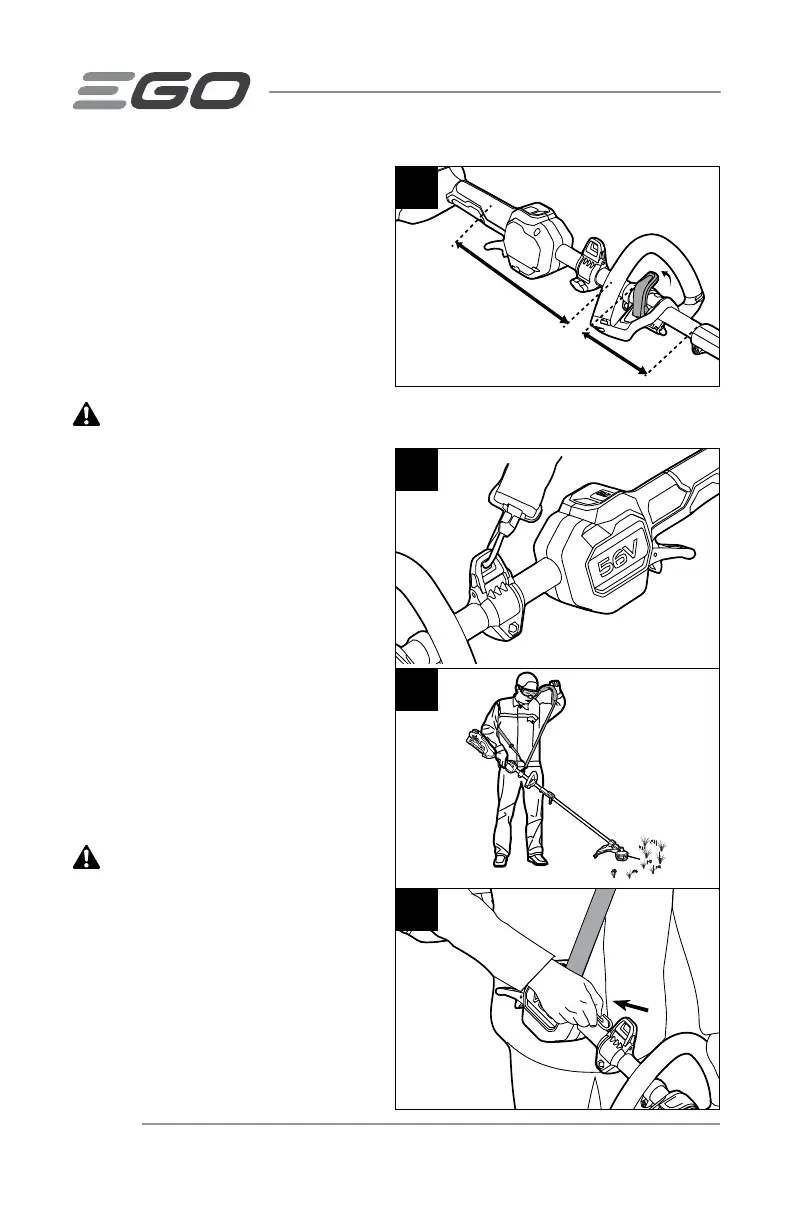

NOTICE: The front handle should be
positioned on the shaft only within
the mounting zone, not exceeding the
threshold ring, so that the distance
between the center of the handles is at
least 9-7/8" (250 mm) for safe operation.
(Fig. 3e).
7. Engage the quick-release lever to
secure the front handle in place.
WARNING:
Never use the tool
without the front handle securely attached.
MOUNTING THE SHOULDER
STRAP AP1500
Depress the strap carabiner to open it and
attach it onto the shoulder-strap loop
(Fig. 4a).
There are two ways to release the strap.
Take it off from your shoulder directly
(Fig. 4b) or depress the carabiner and
disconnect the shoulder strap from the
shoulder-strap loop (Fig. 4c).
When wearing the strap, no other wearable
should interfere with the release and
removal of the strap.
WARNING:
When an emergency
occurs, take it off from your shoulder
immediately, no matter what way the
strap is in.
You should not use the single-shoulder
strap and double-shoulder strap
simultaneously.
4a
4b
4c
3e
Mounting
Zone
≥9-7/8" (250 mm)
