EHC Fusion - Technical Specifications

14
GB-016C_f.493

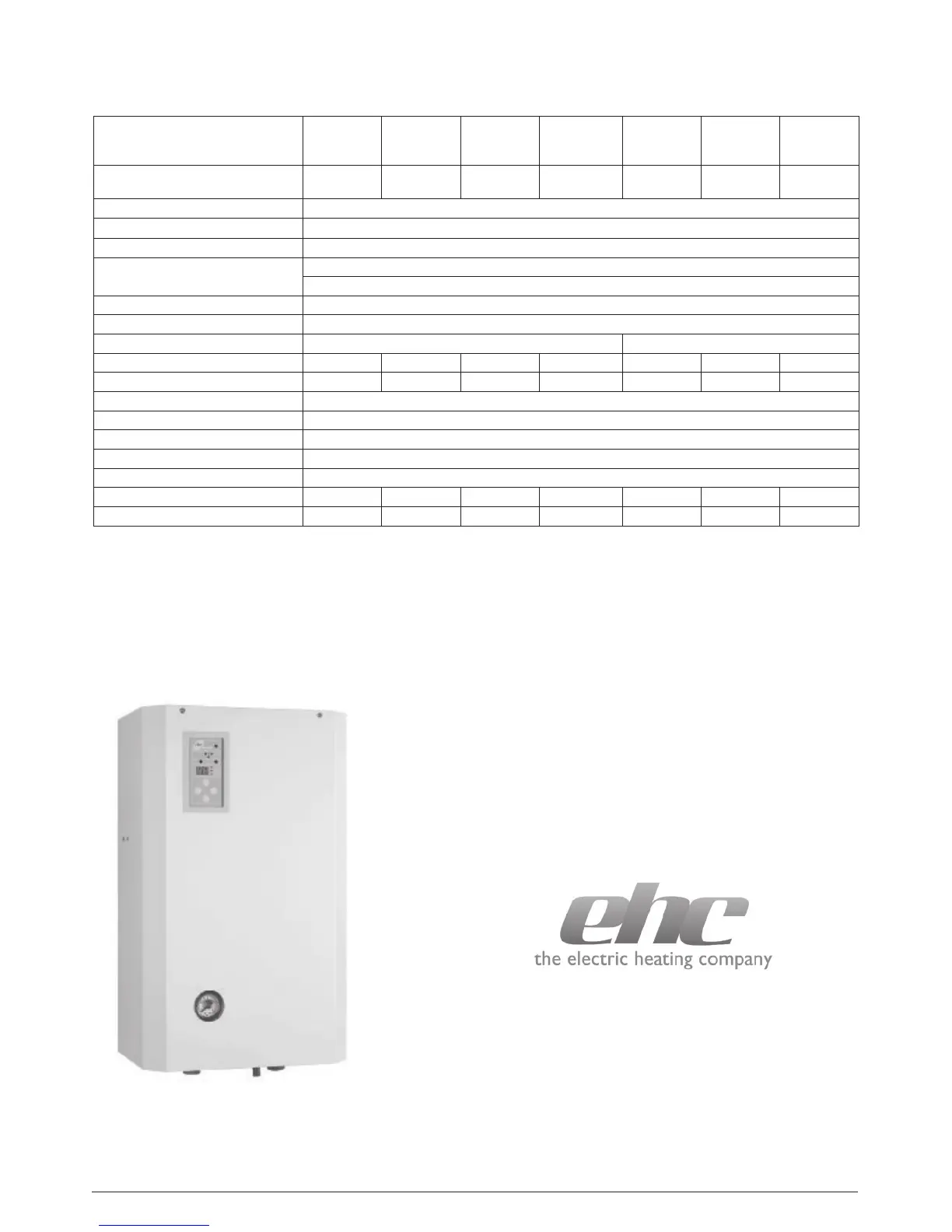

TECHNICAL SPECIFICATIONS
NB: Voltage free control connections
Controls
Central Heating Only:
EHC Single Channel Heat Pack
Central Heating & Domestic Hot Water:
EHC Twin Channel Heat Pack
Boiler Dimensions
Width 420mm
Height 700mm
Depth 285mm
Boiler range
Fusion 6kW
EHCFUS
6kW
Fusion 9kW
EHCFUS
9kW
Fusion 12kW
EHCFUS
12kW
Fusion 14.4kW
EHCFUS
14,4kW
Fusion 24kW
EHCFUS
24kW
Fusion 30W
EHCFUS
30kW
Fusion 36kW
EHCFUS
36kW
Pipe entry from boilers
Bottom
Entry
Bottom
Entry
Bottom
Entry
Bottom
Entry
Bottom
Entry
Bottom
Entry
Bottom
Entry
Central heating flow & return pipes 22 mm
Min water pressure
1 bar
Max water pressure 3 bar
Expansion vessel
6 lt.
maximum system water volume about 60 litres at initial system pressure 1,5 bar
Vessel charge pressure 1,5 bar
Dry weight 25kg
Electrical supply 240V 1ph 50Hz 415V 3ph N 50Hz
Load/current 240V; 25,0 A 240V; 37,5 A 240V; 50,0 A 240V; 60,0 A 415V; 33,4 A 415V; 41,8 A 415V; 50,1 A
Heating output 20,478 Btu 30,717 Btu 40,956 Btu 49,147 Btu 81,912 Btu
Temp setting (factory set) 85°C
Min temp setting 40°C
Overheat Protection 100°C
Pump included Yes
Recommended Pump settings Set to max
Protection 32 A 45 A 63 A 80 A 40 A 45 A 63 A
The maximum allowed network impedance 0,39 Ω 0,32 Ω 0,24 Ω 0,22 Ω
