10. It is essential to House Code the Alarm to ensure it will not accidently communicate with
nearby systems (even if you do not plan to use the RadioLINK feature yourself). This is easily done
as explained in Section 4.2.
(As a safety feature the Alarms will all communicate with each other (provided they are within range) as installed i.e. without any House
Coding. The repeater function is disabled when units are not House Coded).
11. Connect the mains power to the alarm circuit. Check the green light is on.
The CO Alarm is now fully operational and will provide protection against a build up of Carbon
Monoxide gas after it has been connected to the mains supply for over 70 seconds.
16
L N IC
EARTH (IF PRESENT)
L - LIVE
N - NEUTRAL
IC - INTERCONNECT
(not normally used)
RECESSED WIRING AREA
MAINS WIRING
L N IC
KNOCK OUT FOR
SURFACE WIRING
CONDUIT
WIRING
CONDUIT
INSERT SCREWDRIVER TO LIFT
AND REMOVE WIRE COVER
KNOCK OUT
FOR SURFACE WIRING
CONDUIT
SEALING GASKET
(MUST BE IN PLACE)
WIRING
CONDUIT

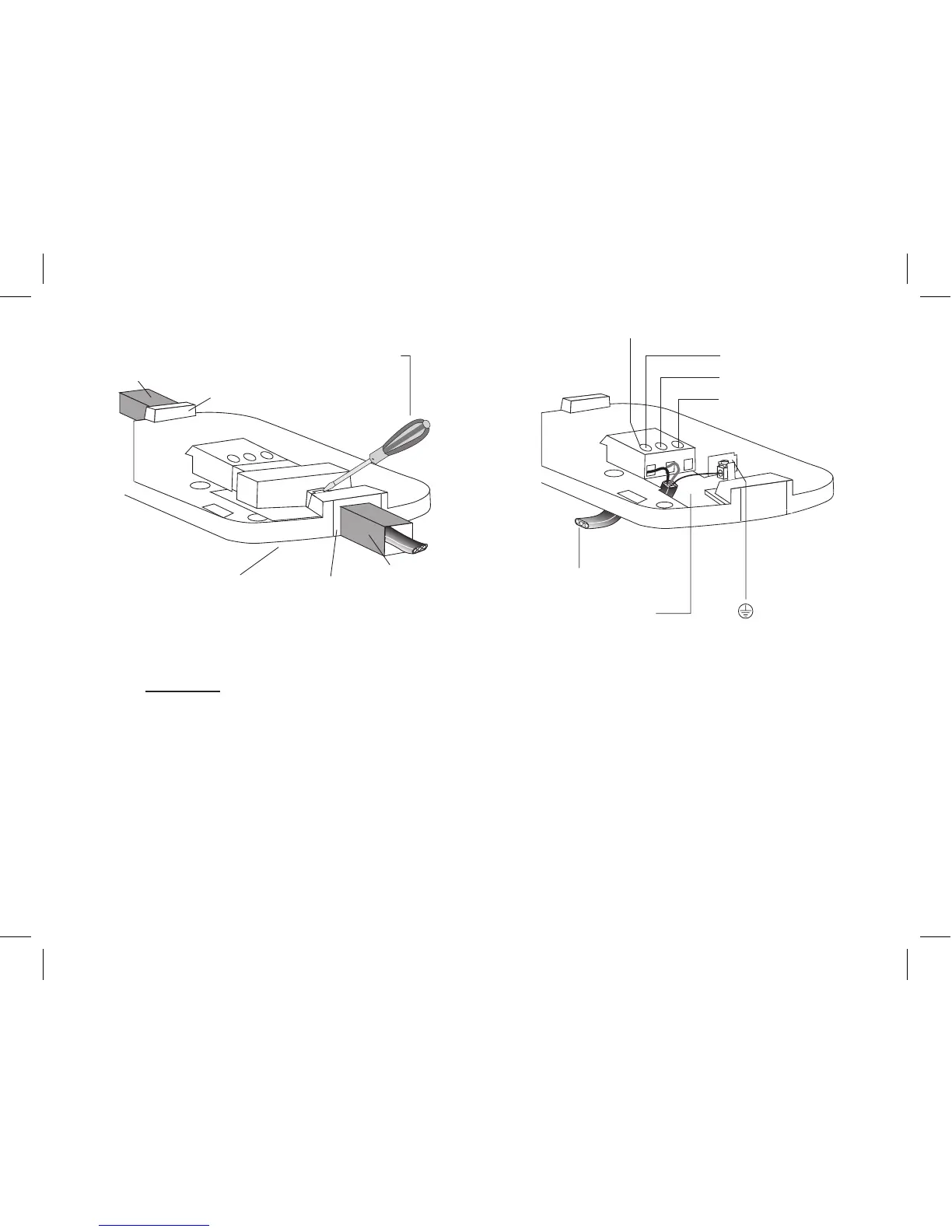

Figure 5 - Surface Wiring
Figure 6 - Recessed Wiring
