9
GB

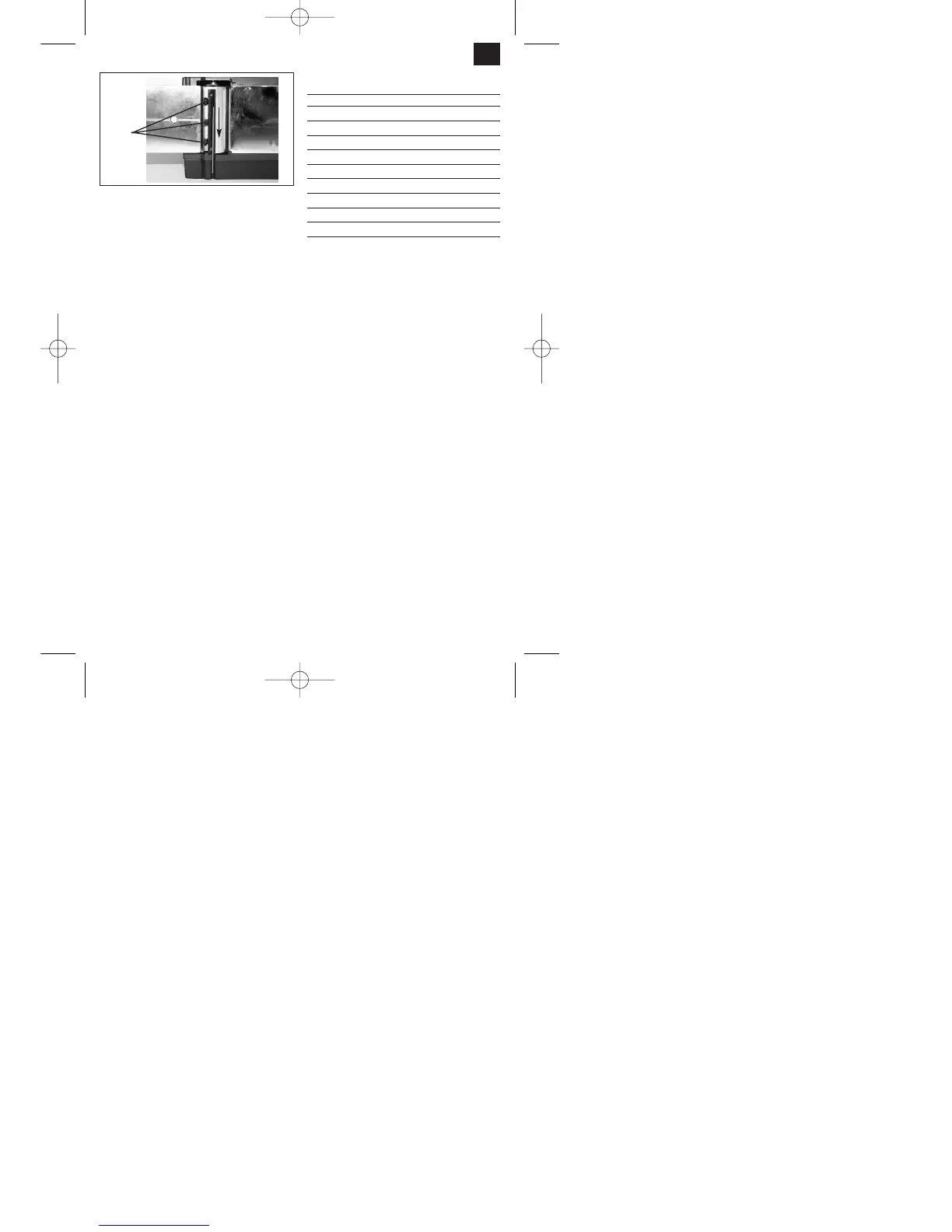

Clean the knife bed before inserting the knife.
Insert the knife by proceeding in the reverse order.
Make sure the planing knife is flush with both ends of
the knife block. Always replace both knives at the
same time to ensure even planing.
Important: Before using your electric hand-held
plane for the first time, make sure the knives are
installed correctly and are firmly in place.
Replacing the drive belt
Loosen the screw and take off the belt guard.
Remove the worn drive belt and clean both belt
discs.
Place the new drive belt on the small belt disc and,
while turning the knife block, pull the belt over the
large belt disc too.
Make sure the longitudinal grooves on the drive belt
are inside the guide grooves of the drive wheels.
Remount the belt guard and screw it firmly in place.
TECHNICAL DATA
Power supply 230 V - 50 Hz
Rating 600 W
Idling speed n
tr
16,000 rpm
Planing depth 0-2 mm
Planing width 82 mm
Noise pressure level LPA 89 dB (A)
Noise power level LWA 102 dB (A)
Vibrations ä
w
<2.5 m/s
2
Weight 2.7 kg
Earthing
1
