a public low-voltage supply system, you must use
an electromagnetic fi lter which reduces the elec-
tromagnetic interference to the point where the
user no longer notices any disturbance.
In industrial parks or other areas in which the
power supply is not based on a public low-voltage
supply system the equipment can be used wit-
hout such a fi lter.
General safety information
It is the user’s responsibility to install and use
the equipment properly in accordance with the
instructions issued by the manufacturer. If elec-
tromagnetic interference is noticed, it is the user’s
responsibility to eliminate said interference with
the technical devices mentioned in the section
“Important information about the power connec-
tion”.
Reduction of emissions
Main current supply
The welder must be connected to the main cur-
rent supply in accordance with the instructions
issued by the manufacturer. If interference occurs,
it may be necessary to introduce additional mea-
sures, e.g. fi tting a fi lter to the main current supply
(see above in the section “Important information
about the power connection”). The welding cables
should be kept as short as possible.
Pacemakers
Persons using an electronic life support device
(e.g. a pacemaker) should consult their doctor
before they go near electric sparking, cutting,
burning or spot-welding equipment in order to
be sure that the combination of magnetic fi elds
and high electric currents does not aff ect their
devices.
For commercial users the guarantee period is 12
months and for normal users 24 months, begin-
ning from the date of purchase.

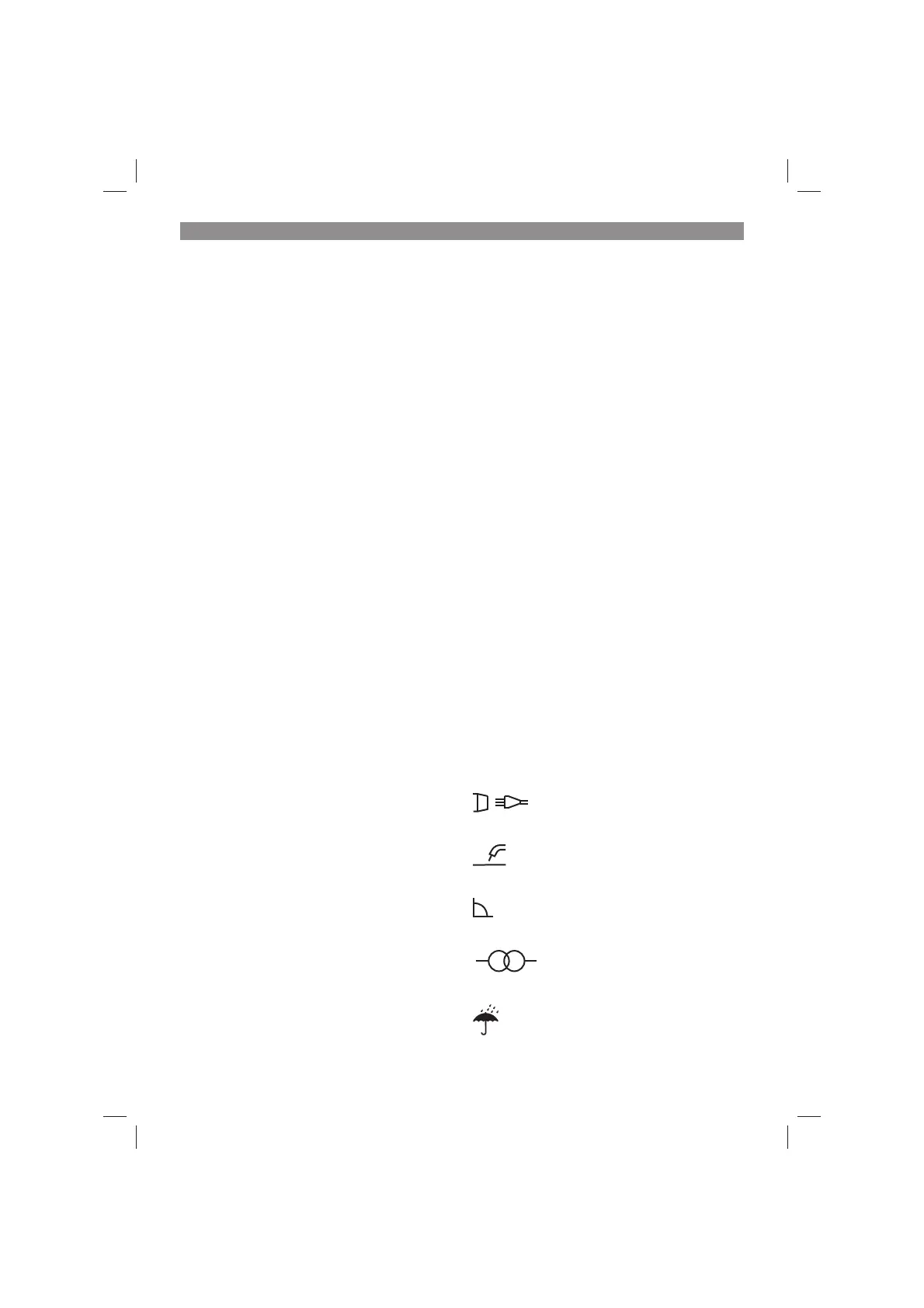

4. Symbols and technical data
EN 60974-1
European standard for arc welding sets and wel-
ding power supplies with limited on time
U
s
Standardized operating voltage
U
0
Rated idling voltage
U
1
Mains voltage
Ø mm
Welding wire diameter
I
1 eff
Eff ective value of the highest line current
I
1max
Rated maximum mains current
I
2
Welding current
~ 50 Hz
Mains frequency
IP 21 S
Protection type
X
On-load factor
1 ~
Single-phase mains connection
Self-shielding fl ux cored welding
Symbol for falling characteristic curve
1쓒 1쓒
Single-phase transformer
Do not store or use the equipment in wet or damp
conditions or in the rain
