PRESENTATION
The burners are graduated in their size and rating to provide the exact heat required for every style of cooking.

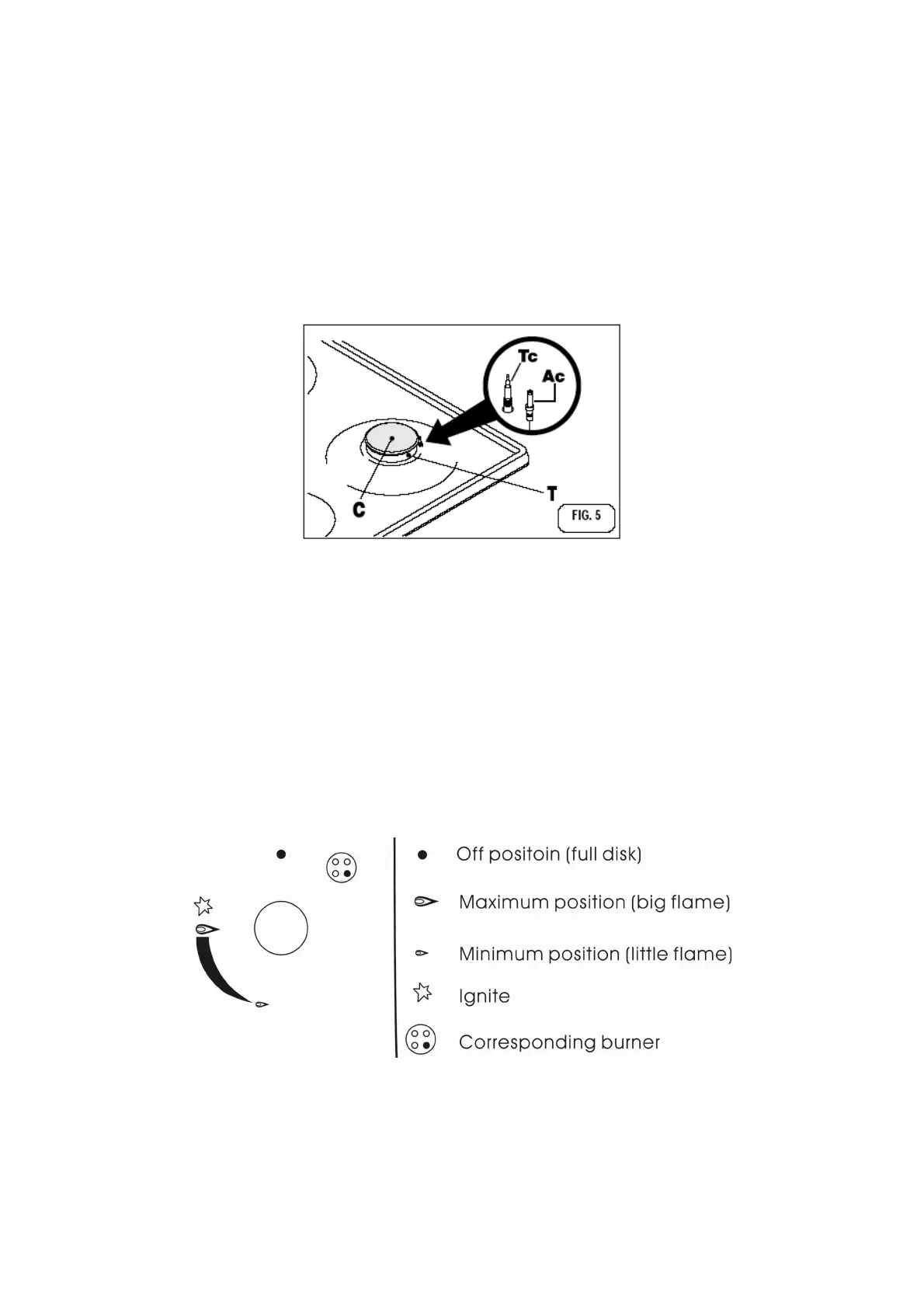

The burners can be equipped with safety thermocouples (Tc) for models HB4801 /HB4802 /HB4803 /HB4804
/HB5801 /HB5801A /HB5801D /HB5802A and HB5802D (see fig. 5).
The burners can be equipped with safety thermocouples for models HB4801B /HB4802B /HB4803B /HB4804B
/HB5801B /HB5801A1 /HB5801D1 /HB5802A1 and HB5802D1.
When the flame die out because of wind, the gas will still flow from burners, it will cause burning or explosion when
the flowing gas encounter naked flame; So the user cannot leave the site when the appliance is working, also pay
attention to the unexpected flameout.
On the top of each knob there is a printed diagram showing to which burner or heating element it refers.
GENERAL NOTES ON SAFETY
• When the burners or plates are in use do not leave them unattended and make sure there are no small
children in the vicinity. Check that pan handles are positioned correctly and always keep an eye on the
pan whenever oils or fats are used as they are easily inflammable.
• Do not use spray cans near the appliance when it is in use.
• If you see any cracks on the surface of the plate, disconnect the appliance from the mains immediately.
• After you have used the appliance make sure that all the controls are off or closed.
GAS BURNERS
Manual ignition
Press and turn counterclockwise the knob corresponding to the burner you wish to use, until it reaches to the “Full
on” position (fig. 1) and placing a lighted match to the burner.
fig.1
