Eizo FlexScan EV2760 User Manual

●

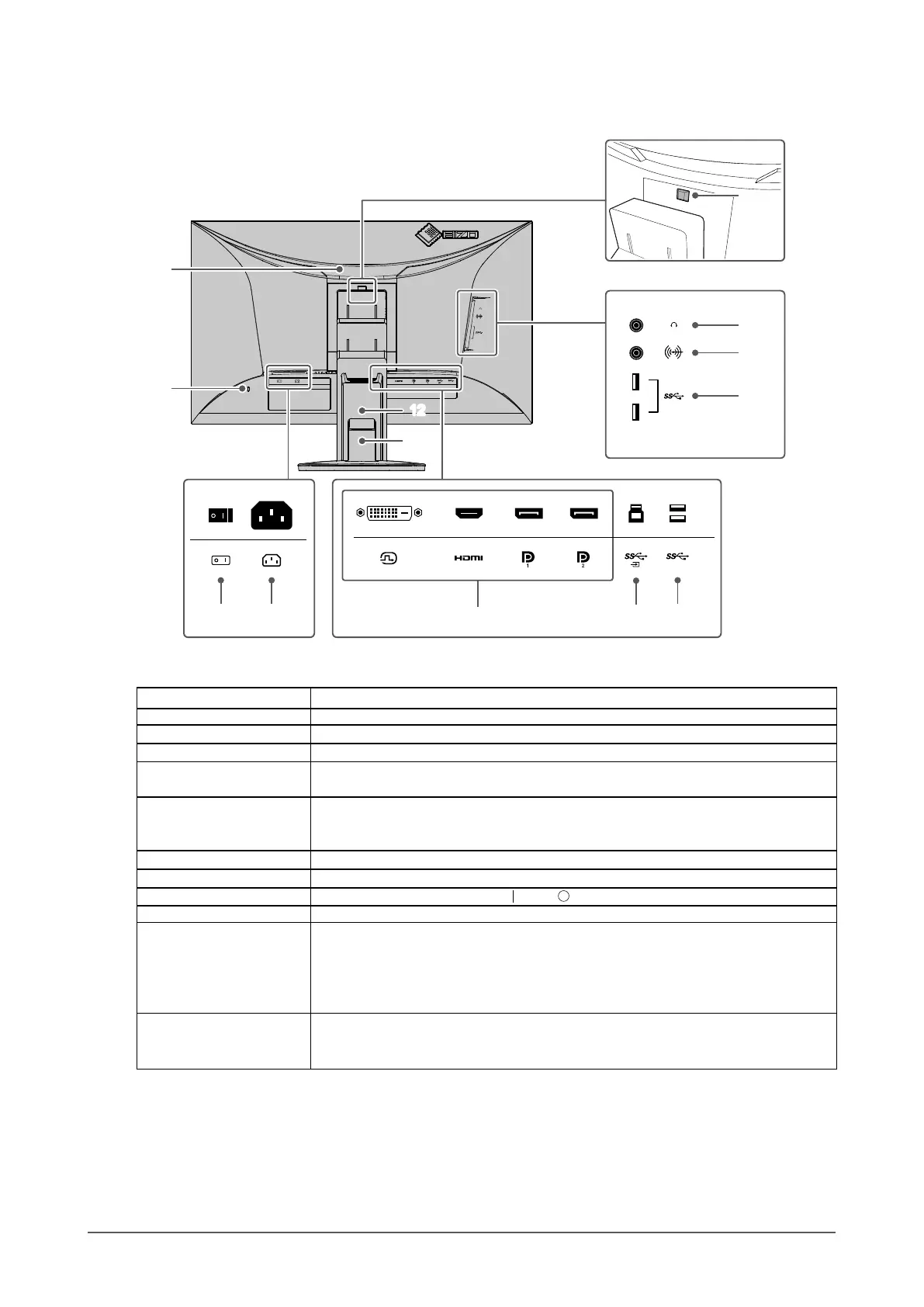

Rear
16 17 1114 15
13
12
10
9
11
8
7
6
6. Handle This handle is used for transportation.
7. Security lock slot Complies with Kensington’s MicroSaver security system.
8. Lock button Use this button to remove the monitor from the stand.
9. Headphone jack Connects to headphones.
10. Stereo mini jack If you connect an external device using the stereo mini jack cable, external audio
can be output from the monitor.
11. USB Type-A
connector (USB
downstream port)
Connects to a peripheral USB device (page 35).
12. Cable cover Holds the monitor cables.
13. Stand
*1
Adjusts the height and angle (tilt and swivel) of the monitor.
14. Main power switch
Turns the main power on or o󰀨.
: On, : O󰀨
15. Power connector Connects the power cord.
16. Input signal
connectors
The following connectors are available on the monitor rear in order of left to right.
DVI connector
HDMI connector
DisplayPort connector 1
DisplayPort connector 2
17. USB Type-B
connector (USB
upstream port)
Connect the USB cable when using software that requires USB connection or when
using the USB hub function (page 35).
*1 An optional arm (or optional stand) can be attached by removing the stand section.
9
Chapter 1 Introduction

Eizo FlexScan EV2760 Specifications

General

Energy efficiency scale	A to G
