APPENDIX

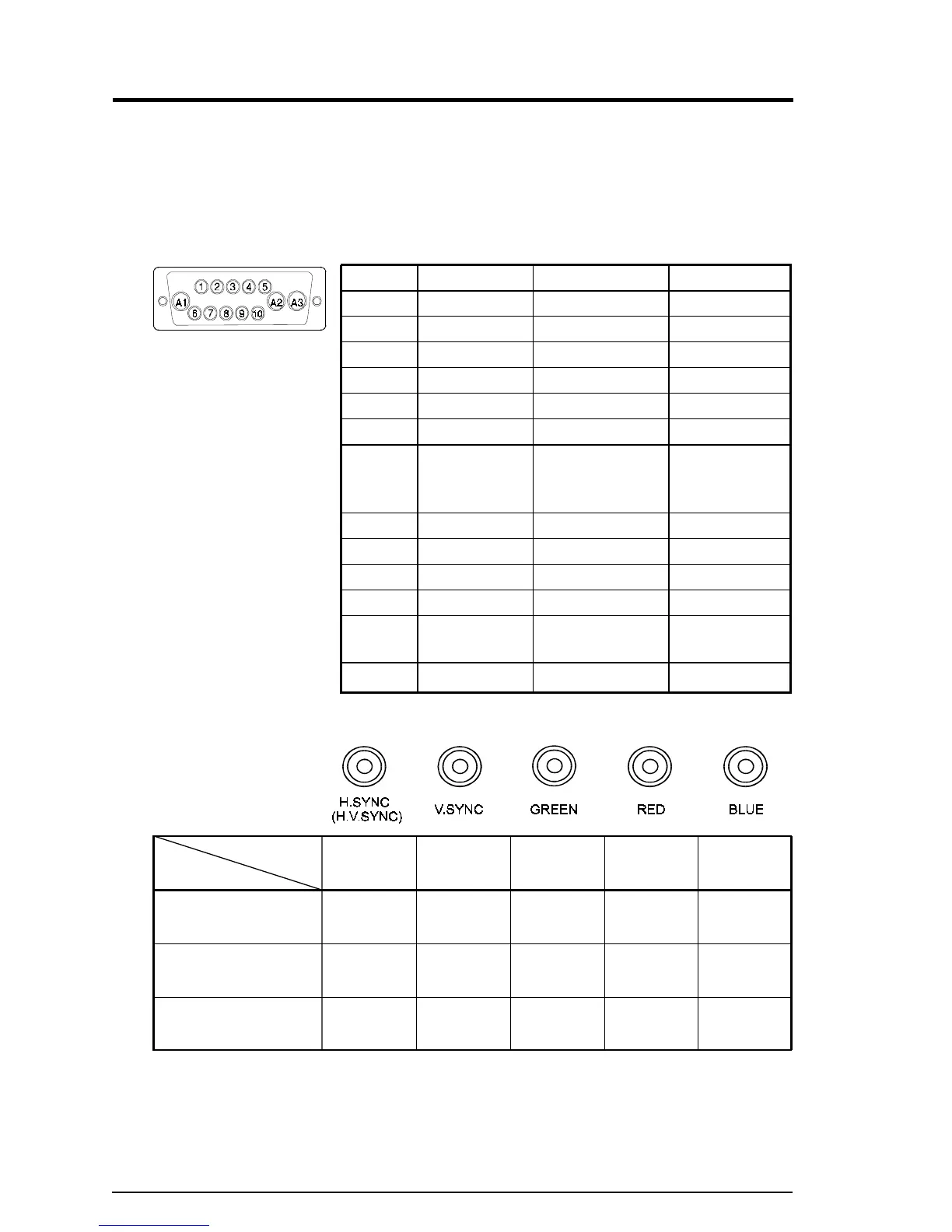

Pin Assignment
Pin-Belegung
Affectation des Broches
D-Sub 13W3 Connector
Signals Separate sync Composite sync Sync on Green
A1 Red Red Red
A2 Green Green Green
A3 Blue Blue Blue
1 Ground Ground Ground
2 V.Sync N/A N/A
3 Data Data Data
4 Clock Clock (shorted Clock (shorted
(shorted with (shorted with (shorted with
9 pin) 9 pin) 9 pin)
5 H.Sync Composite sync N/A
6 N/A N/A N/A
7 N/A N/A N/A
8 N/A N/A N/A
9 shorted with shorted with shorted with
4 pin 4 pin 4 pin
10 ground ground ground
BNC Connector
APPENDIX
Input signal
Connector
Sync on green
Composite sync
Separate sync
H.Sync
N/A
TTL H/V
composite
sync
TTL
H. Sync
V. Sync
N/A
N/A
TTL
V. Sync
Green
Green
Composite
sync
Green
Green
Red
Red
Red
Red
Blue
Blue
Blue
Blue
