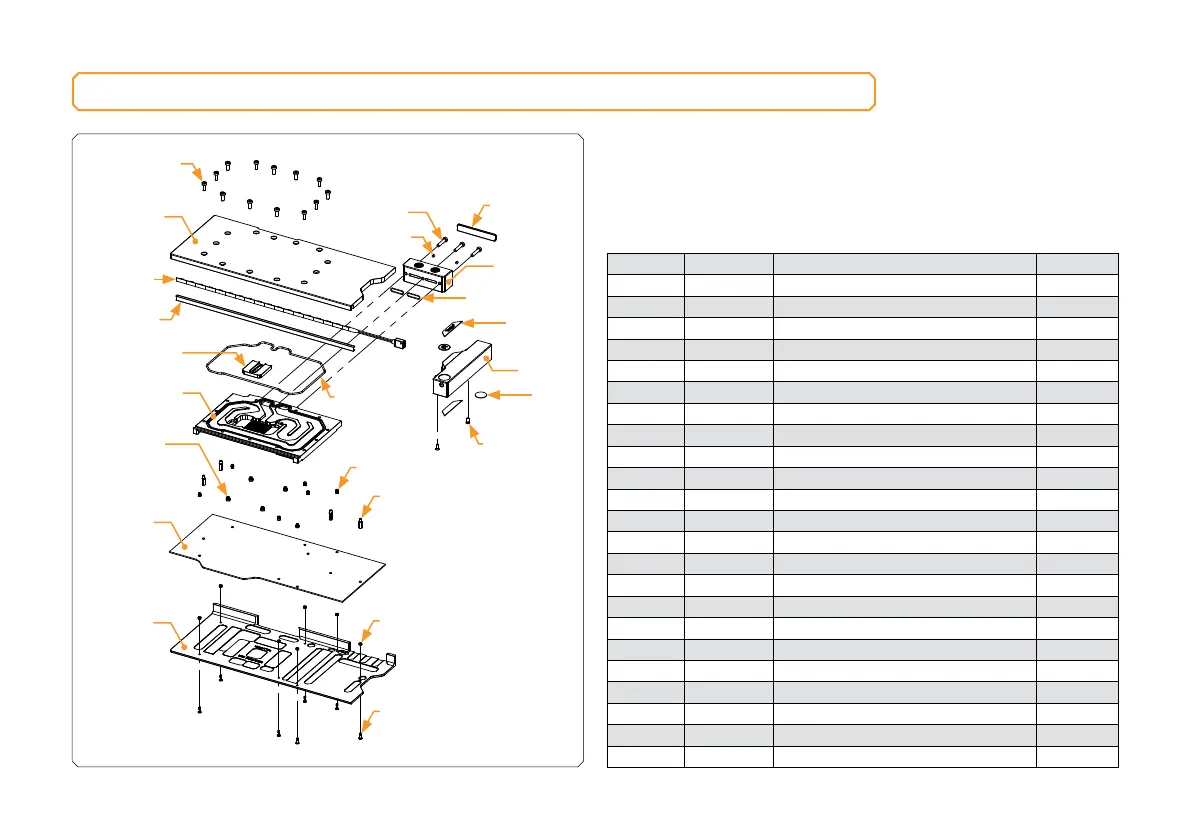

TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS
NICKEL PLEXI
- Dimensions: (LxHxW): 334.5 x 155 x 27mm
- D-RGB LED count: 18
- D-RGB cable length: 50cm
- D-RGB connector 3-pin 5V digital LED header
Position EAN Description Quantity
1 104465 Coldplate (Nickel) 1
2 103971 Acetal Stand Out 1
3 104471 LED Cover 1
4 100663 EK - Badge 2
5 103964 Mylar sticker 2
6 8208 Screw M3x8 7991DIN 2
7 101556 LED D-RGB strip 500/300mm 1
8 103947 FC Terminal 1
9 104468 Top plate (Plexi) 1
10 104475 Backplate (Bl. elox) 1
11 103942 Terminal Badge 1
12 104216 Disc magnet 3x3 2
13 8311 Screw M4x20 DIN7984 3
14 104106 Terminal OR - 14x1 mm 2
15 103987 Standoff M3.5-M2.5 x 3 7
16 103988 Standoff M4-M2.5 x 3mm 4
17 103986 Standoff M3.5-M2.5 x 11.3mm 4
18 104187 Screw M2.5x8 AX1 7
19 104188 Standoff fi 4.5/2.5 7
20 9024 Screw M4x10 DIN7984 13
21 103962 Plexi isert 1
22 104484 Main O-ring 162x2 1
23 104902 PCB cardboard 1
11
17
18
19
15
8
2
14
5
4
6
22
20
13
12
21
16
1
9
23
10
7
3
