eka KF 610 - Informations to the Consumers; Wiring Layouts

_ Electric Ovens _ rev. 5 ________________________________________ KF 610 – KF 620 – KF 622 – KF 622 GRILL _
_________________________________________________________________________________________ page 9 _
11
1111
11.
..
. Technical
Technical Technical
Technical assi
assiassi
assistance
stancestance
stance
Before leaving the factory, the appliance was completely regulated and tested by expert
specialised personnel to guarantee the best operating results.
All repairs and settings must be performed with utmost care and attention, respecting
national safety regulations in force. Always contact your retailer or our nearest Service Centre,
giving details of the problem, the appliance model and the serial number (on the rating plate on
the rear panel).
For any maintenance the user can contact Tecnoeka by calling the telephone numbers on the
cover or going to www.tecnoeka.com
www.tecnoeka.comwww.tecnoeka.com
www.tecnoeka.com.
1
11
12
22
2.
. .
. Informations to the consumers
Informations to the consumersInformations to the consumers
Informations to the consumers
Further to Directive 2002/96/EC, the symbol of the crossed rubbish skip on
the appliance means that at the end of its life, the product must be
disposed of separately from the other rubbish. The user must hand the
appliance to a specialised waste collection centre for electric and electronic
equipment.
The separate collection of the rubbish and subsequent treatment, recovery and disposal help to
produce other equipment using recycled materials, reducing the negative effects on the
environment and public health, which would be caused by incorrect management of the
rubbish.
Should the user dispose of the product abusively, administrative sanctions would be applied.
1
11
13
33
3.
. .
. Wiring layouts
Wiring layoutsWiring layouts
Wiring layouts

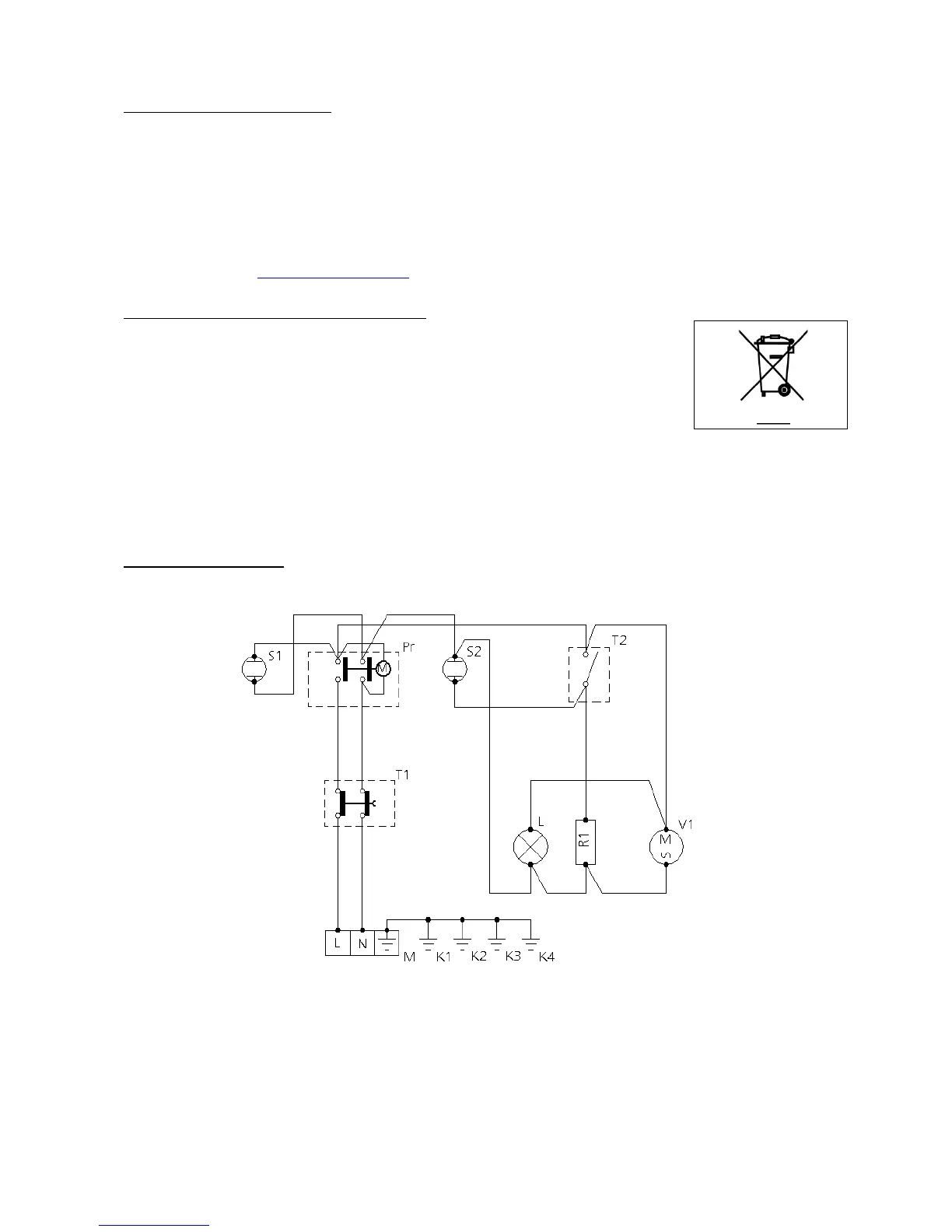

WIRING LAYOUT
WIRING LAYOUTWIRING LAYOUT
WIRING LAYOUT MO
MO MO
MOD
DD
DD
DD
D.
..
. KF 610
KF 610 KF 610
KF 610 –
––
– KF 620
KF 620KF 620
KF 620
Key
KeyKey
Key
M Power terminal board
Pr "End of cooking" programmer
T1 Safety thermostat
T2 Oven thermostat
L Oven lighting lamp
R1 Circular heating-element
V1 Oven motorised ventilator
S1 Programmer indicator light
S2 Thermostat indicator light
K1 Circular heating-element earth
K2 Motorised ventilator earth
K3 Oven lighting lamp earth
K4 Thermostat earth
