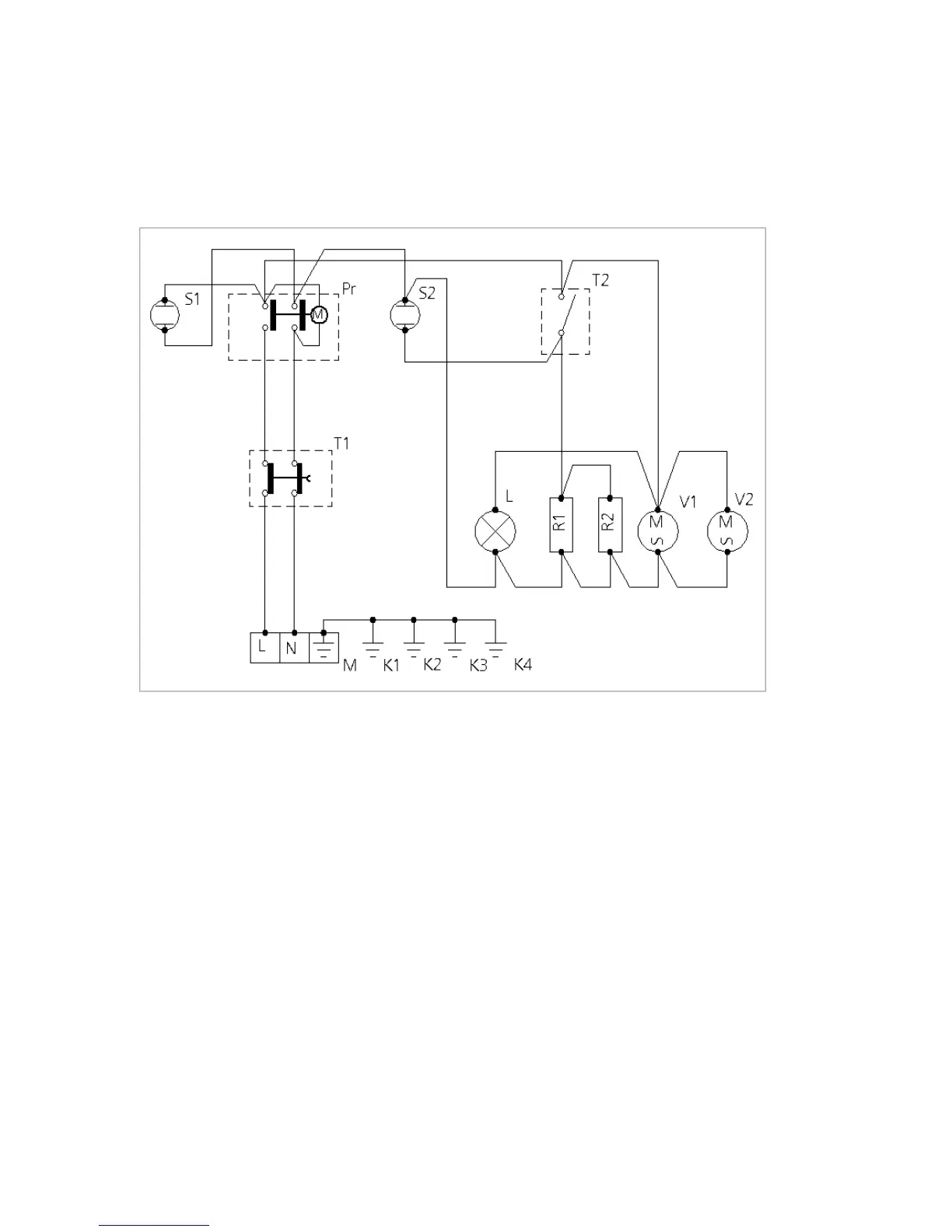

WIRING LAYOUT
WIRING LAYOUTWIRING LAYOUT
WIRING LAYOUT MO
MO MO
MOD.
D. D.
D. KF 622
KF 622KF 622
KF 622
Key
KeyKey
Key
M Power terminal board
Pr "End of cooking" programmer
T1 Safety thermostat
T2 Oven thermostat
L Oven lighting lamp
R1-R2 Circular heating-elements
V1-V2 Oven motorised ventilators
S1 Programmer indicator light
S2 Thermostat indicator light
K1 Circular heating-element earth
K2 Motorised ventilator earth
K3 Oven lighting lamp earth
K4 Thermostat earth
To Next Page
