. Informations to the consumers
Informations to the consumersInformations to the consumers
Informations to the consumers
Further to Directive 2002/96/EC, the symbol of the crossed rubbish skip
on the appliance means that at the end of its life, the product must be
disposed of separately from the other rubbish. The user must hand the
appliance to a specialised waste collection centre for electric and
electronic equipment.
The separate collecti
on of the rubbish and subsequent treatment, recovery and disposal help
to produce other equipment using recycled materials, reducing the negative effects on the
environment and public health, which would be caused by incorrect management of the
rubbish.
Should the user dispose of the product abusively, administrative sanctions would be applied.
1
11
13
33
3.
. .

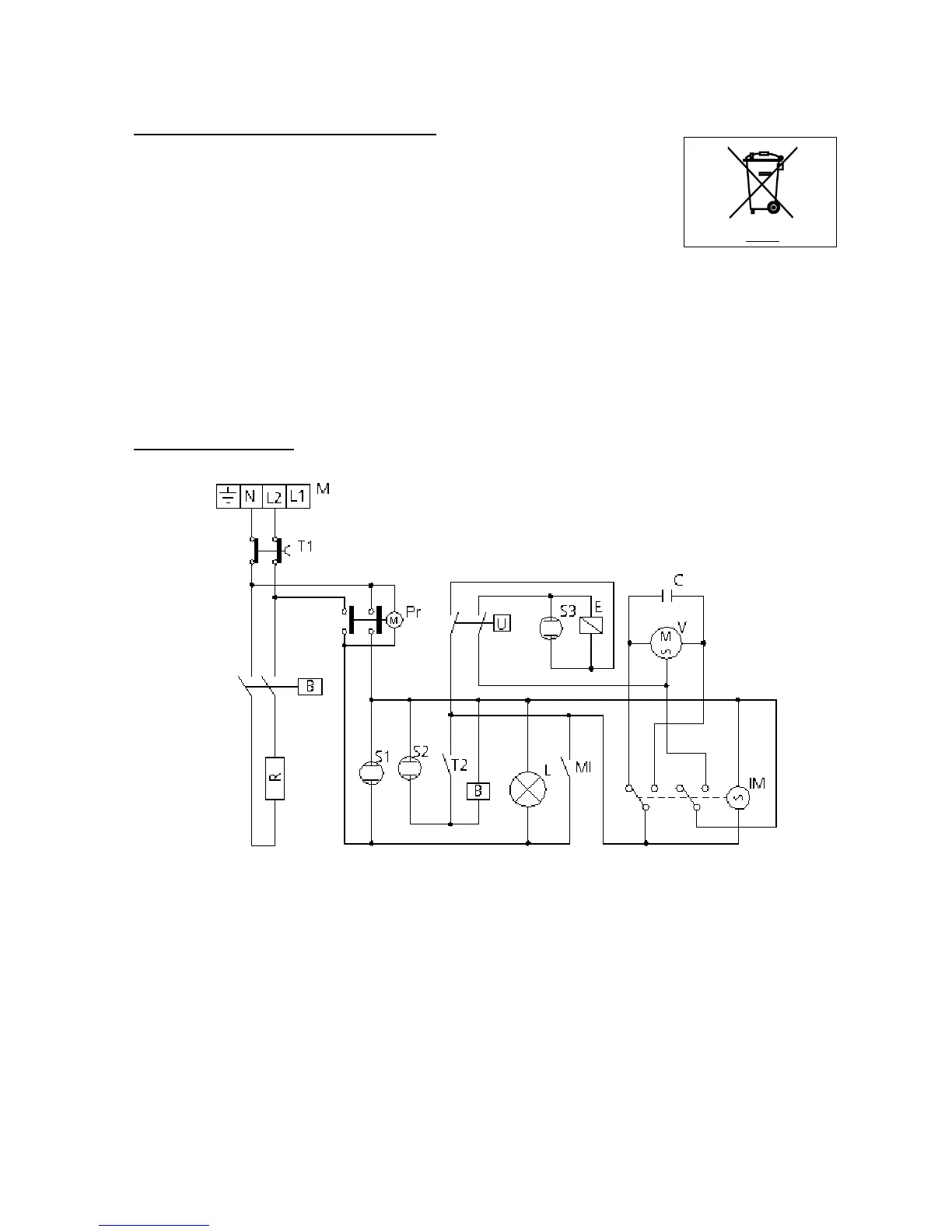

. Wiring layouts
Wiring layoutsWiring layouts
Wiring layouts
Key
KeyKey
Key
M Power terminal board
Pr "End of cooking" programmer
T1 Safety thermostat
T2 Oven thermostat
L Oven lighting lamp
R Circular heating-element
V Oven motorised ventilator
C Capacitor
S1 Programmer indicator light
S2 Thermostat indicator light
S3 Humidity indicator light
IM Operating direction reversing element
U Humidifier switch
E Humidifier solenoid-valve
MI Door microswitch
B Contactor coil
